9.3. Stereo Input Module View (Available only when the D-936R is used)

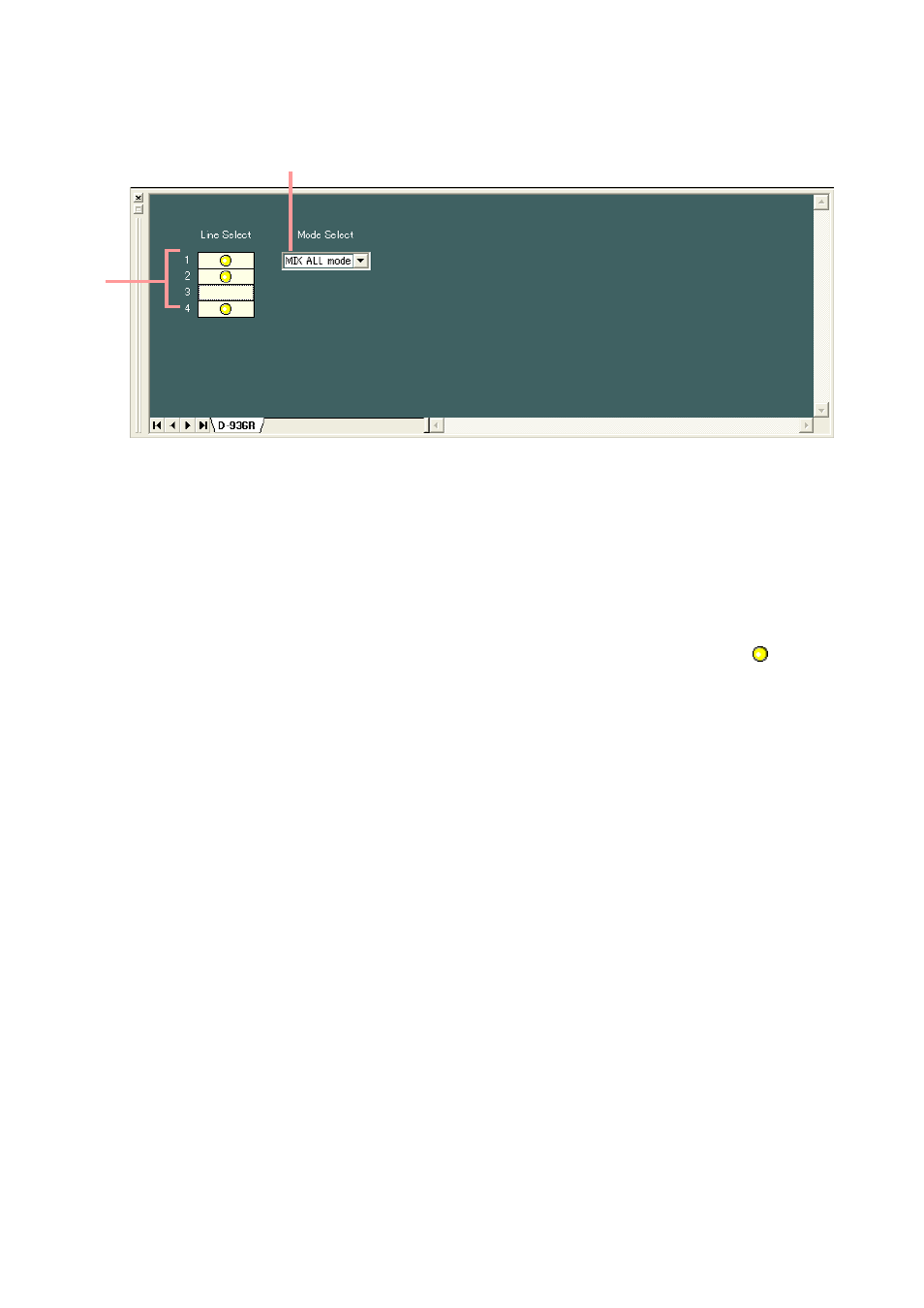

Click the [D-936R] box displayed on the input slot in the Flow View. The Stereo Input Module View is then
displayed.
(1)
(2)
(1) Mode indication button
Displays the operation mode of the module.
MIX ALL mode: Mixes 4 (stereo) line inputs. Any individual stereo input can also be disabled.
SELECT mode: Selects a single (stereo) line input. Trim settings can be performed for individual line
inputs.
You can select the mode from the pull-down menu if you press this button.
(2) ON/OFF control [1, 2, 3, 4]
• Displays the ON/OFF setting status of the module's inputs 1 – 4. The input indicated by the symbol is
set to ON.
• The input toggles between "ON" and "OFF" each time it is double-clicked.
• The thick, black frame on the ON/OFF control indicates the selected input.
• Each of Inputs 1 – 4 can be individually set to ON or OFF when in MIX ALL mode.
• Any one of inputs 1 – 4 can be set to ON when in SELECT mode.
• Only input 1 is set to ON if mode is switched from MIX ALL to SELECT mode.
• All inputs 1 – 4 are set to ON if mode is switched from SELECT to MIX ALL mode.
