6. UNIT VIEW

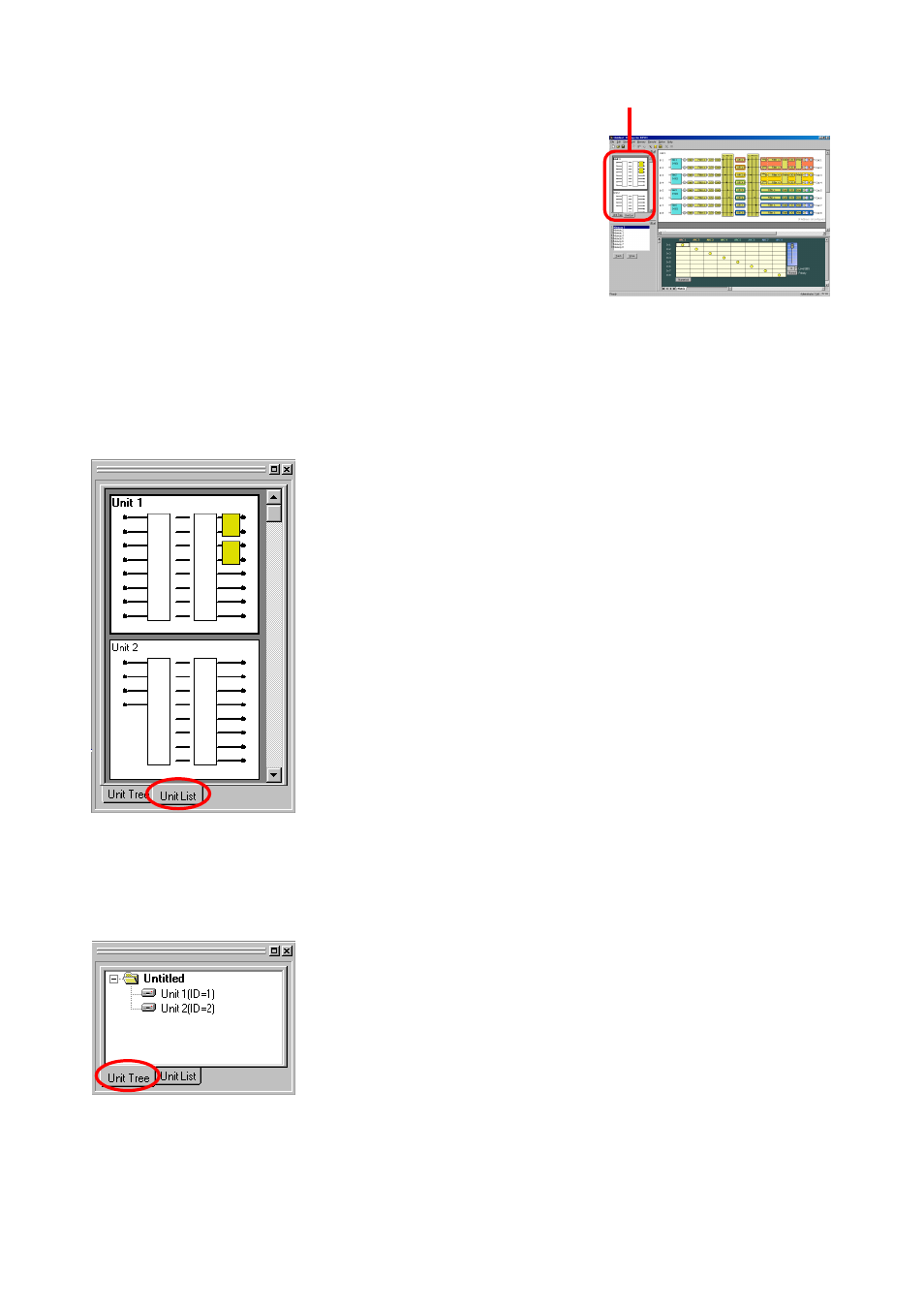

The Unit View is located at the upper left of the main screen.
It displays up to 30 units in a tree-view or list-view style, which can be
switched by clicking the tab below.
• Unit List
Displays the communication signal images of the unit in a reduced size.
Allows convenient displays of the unit names, numbers of inputs and outputs, numbers of zones, and
crossover combinations.
Selecting the created unit by clicking on it displays the selected unit in the flow view as well.
• Unit Tree
Unit names are displayed in a tree view.
Selecting the created unit by clicking on it displays the selected unit in the flow view as well.
In the Unit List display, the unit's copy can be made by
dragging-and-dropping the created unit onto the blank unit.
