Example of 10 groups/50 individual zones – Toa FS-7000 SERIES Installation User Manual
Page 47
47
[Connections between FS-7000RF and FS-7000CP/FS-7010CP when FS-7000GM is connected to FS-7000CP]
Connect the FS-7000RF's RF Zone Control Terminal to the RF Zone Control Terminal of the FS-7000CP
and/or FS-7010CP connected to the FS-7000JP. Do not connect the RF Zone Control Terminal of the FS-
7000CP and/or FS-7010CP connected to the FS-7000GM's GM Group Control Input.

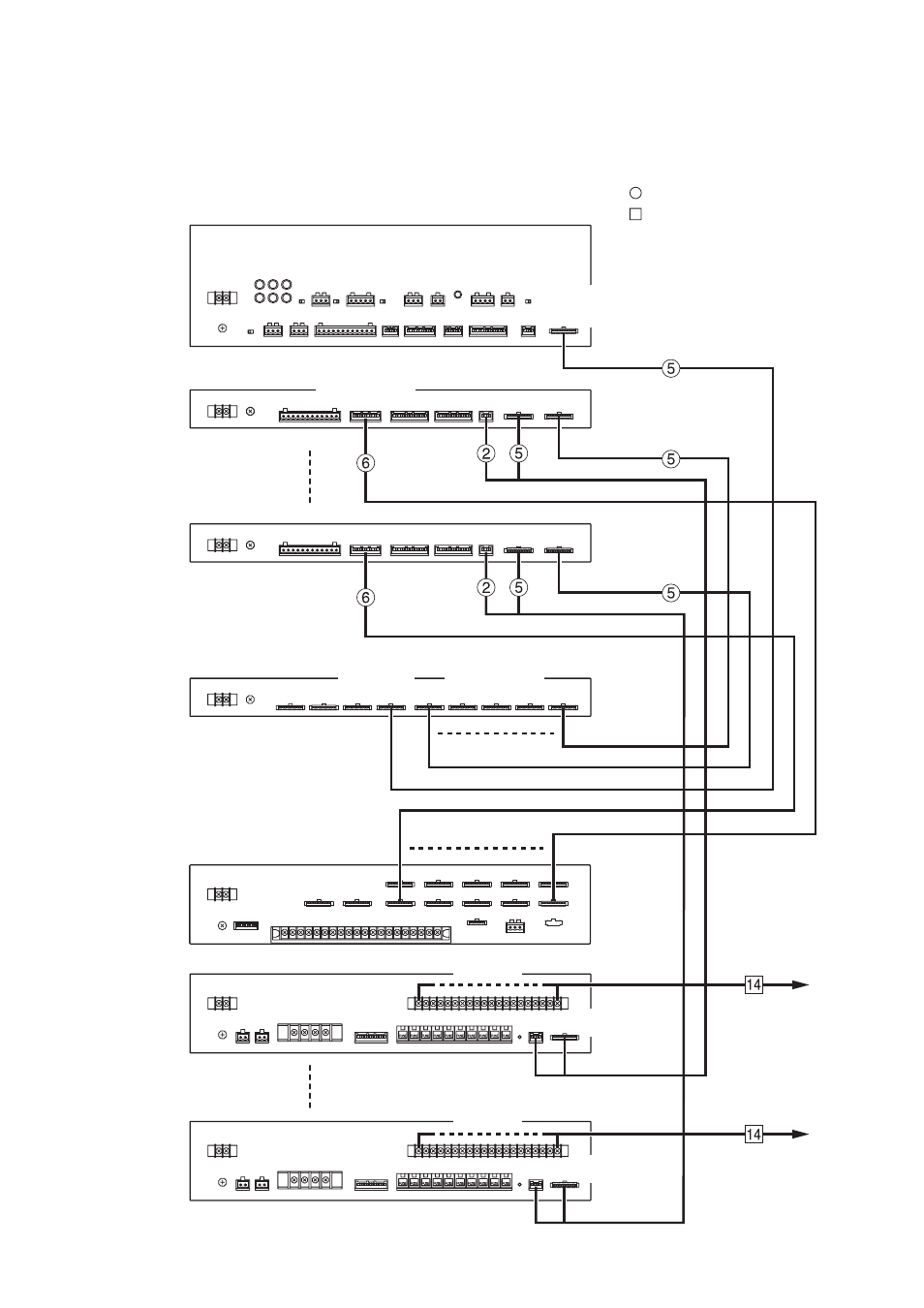

[Example of 10 groups/50 individual zones]
2
1
2
1
4
5
3
2
1
4
5
3
FS-7000CP
FS-7000GM
FS-7000RF
FS-7010CP
(1st unit)
FS-7010CP
(5th unit)
JP ZONE/
GM GROUP CONT
JP ZONE CONT
JP ZONE CONT
GM ZONE CONT
RF ZONE CONT
GM ZONE CONT
GM ZONE CONT
JP CONT
JP CONT
RF ZONE CONT
RF ZONE CONT
SP OUT
SP OUT
JP CONT
JP CONT
JP ZONE CONT
JP ZONE CONT
Speaker lines
1 – 10
Speaker lines
41 – 50
FS-7000JP
(1st unit)
FS-7000JP
(5th unit)
GM GROUP
CONT IN
: Supplied cables
: Cables prepared separately
See page 64; Table for Cables.
