1. Power Indicator

Lights when power is supplied and the FS-7000JP
panel is ready for operation.

2. BGM Zone Selector Keys

Press these keys to select BGM broadcast zones.
Press the keys again to cancel the selection. (2-
channel broadcast)

3. Speaker Line Indicators

Indicate speaker line operating statuses as
follows:
Green:

BGM broadcast in progress (2-channel
broadcast)

Orange: BGM broadcast in progress (1-channel

broadcast) or priority or emergency
broadcasts in progress

Red:

Short-circuit (see page 77.)

4. Broadcast Zone Fill-In Space

Write the names of zones to be selected with the
BGM Zone Selector keys (2) in this space.

5.3. FS-7000JP Junction Panel

The FS-7000JP panel is used in conjunction with the FS-7000CP and the FS-7010CP to connect speaker
lines in FS-7000 Series Voice Evacuation Systems. It can connect up to 10 speaker lines. If speaker lines are
shorted, the line protection fuses disconnect the shorted lines, leaving broadcasts to other speaker lines
functioning intact. The FS-7000JP is equipped with BGM input and priority broadcast input, with BGM
broadcast zones selectable using the keys on the front panel. Priority broadcast zones are selected using the
FS-7000CP.

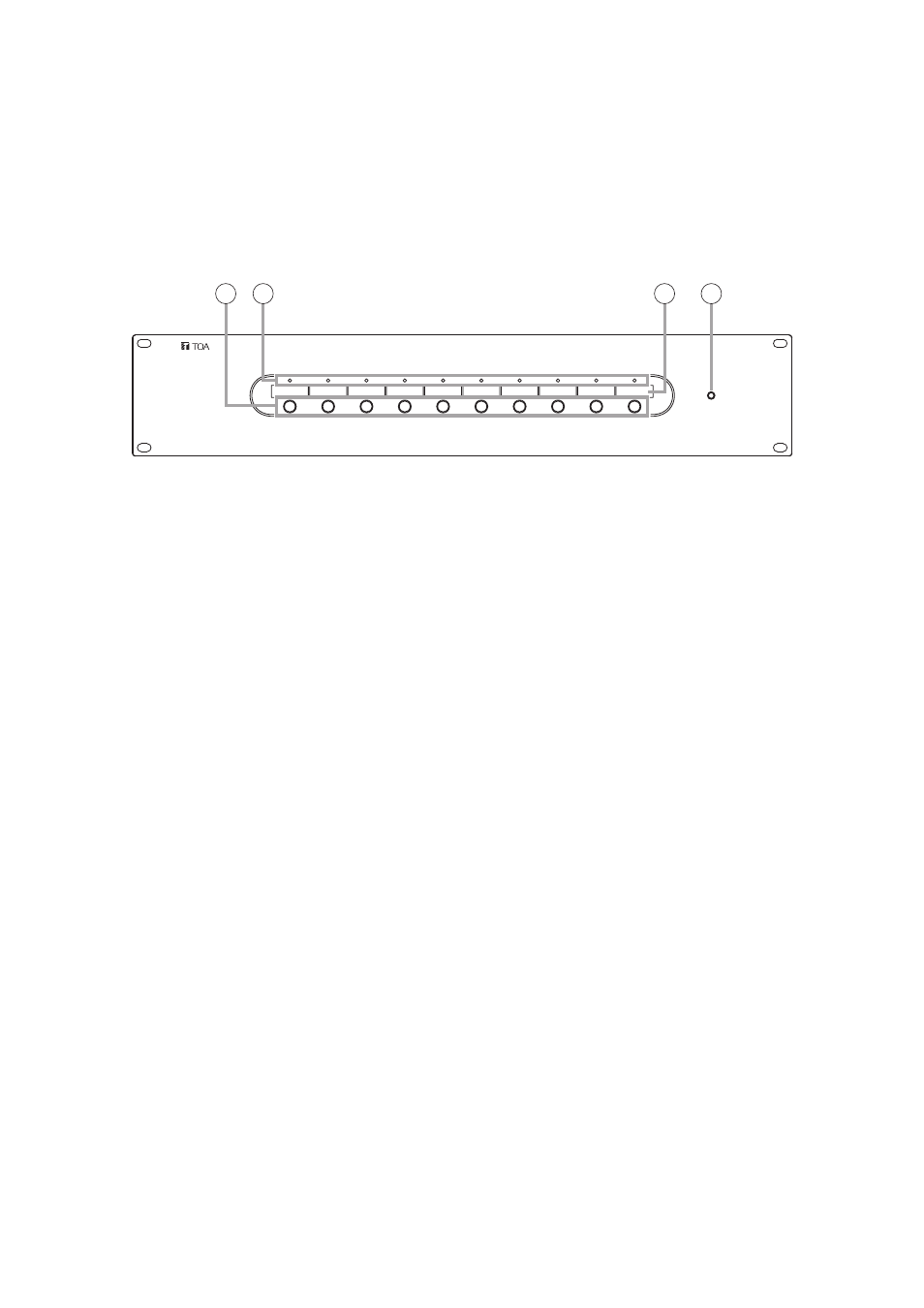

[Front]
