ARC 6000
1-5
98-05017
Rev.- 1
CE & S
TANDARD
V
ERSION
OFF SET- UP DEC.
ON OPERATE INC. ARC-6000
Automatic
Rate Controller
MID-TECH
MIDWEST TECHNOLOGIES, INC. 1 2 3 4 5 6 7 8 9
%Rate
DISPLAY SELECTOR
Speed
Field Area Impl.Width
Distance
Test
Speed
Prime
Total Applied
Application Rate
Scan
Total Area
Product Vol.
BOOMS
.
-Ac
Flow
RATE
Gal./
1 2 3 4 5 6 7 8
%Rate
DISPLAY SELECTOR
Speed
Field Area Impl.Width
Distance
Test
Speed
Prime
Total Applied
Application Rate
Scan
Total Area
Product Vol.
BOOMS
¨
%Rate
DISPLAY SELECTOR
Speed
Field Area Impl.Width
Distance
Test
Speed
Prime
Total Applied
Application Rate
Scan
Total Area
Product Vol.
OFF SET- UP
ON OPERATE SET- UP
OPERATE

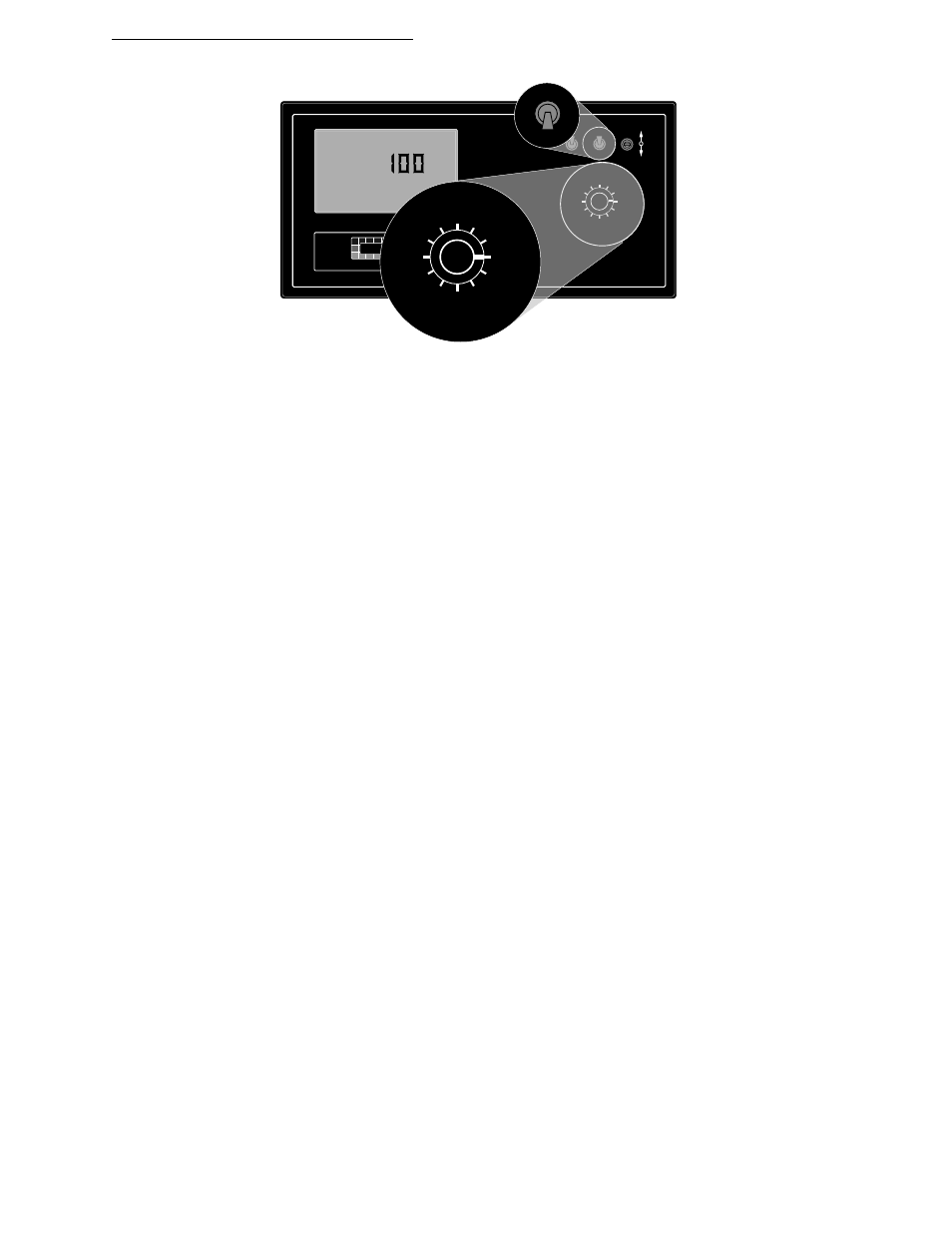

1.4.4. DISPLAY SELECTOR FUNCTIONS-SET UP MODE (GRANULAR APPLICATION)
SPEED: Ground Speed Override (GSO) Value, in tenths of a MPH, INC/DEC switch changes.**
FIELD AREA: Select area alarm. For example; if the alarm is set (using the INC/DEC switch) to 10.00, then the display
will flash "FIELD AREA" and the console will beep when each increment of ten acres is reached. The display will
react for about three seconds and then stop until the next increment is reached.**
TOTAL AREA: Err, No function in the SETUP mode.
PRODUCT VOLUME: Use the INC/DEC switch to set the full load capacity of the vehicle.**
% RATE: The percent of change in the application rate for each actuation of the INC/DEC switch, when application
operations are underway. Use the INC/DEC switch to change the value.**
APPLICATION RATE: Product density. The default value is 65.0. Use the INC/DEC switch to set the measured
product density.**
TOTAL APPLIED: This is the rate sensor calibration number. Calculate and use the number of sensor pulses per cubic
foot as the initial setting. Use the INC/DEC switch to change. Must have all booms ON when in the SPLIT Drive
Mode**
WIDTH: Individual boom section widths in inches. The display will cycle through the individual boom sections in
order, unless a particular boom solenoid switch is activated. Use the INC/DEC switch to change.**
DISTANCE: The current Distance Calibration Number. Use the INC/DEC switch to change.**
PRIME: Holding the DEC switch down for over ten seconds establishes GRANULAR operation, either STnrd (standard)
or SPLit (split drive). Holding the INC switch up for over ten seconds establishes LIQUID operation, either STnrd
(standard) or rEFLO (reflow). Current setting is shown in the display, Pump L is liquid, Pump C is granular.
TEST SPEED: The current Test Speed in tenths of a Mile per Hour. Use the INC/DEC switch to change this value.**
SCAN: Err, No function in the SETUP mode.
NOTES: * Totals can be zeroed in this mode.
** Values are programmable in this mode.
***Values changeable by a % increase or decrease.
