Carrier AQUAZONE RVC - Manual (Page 23)

23

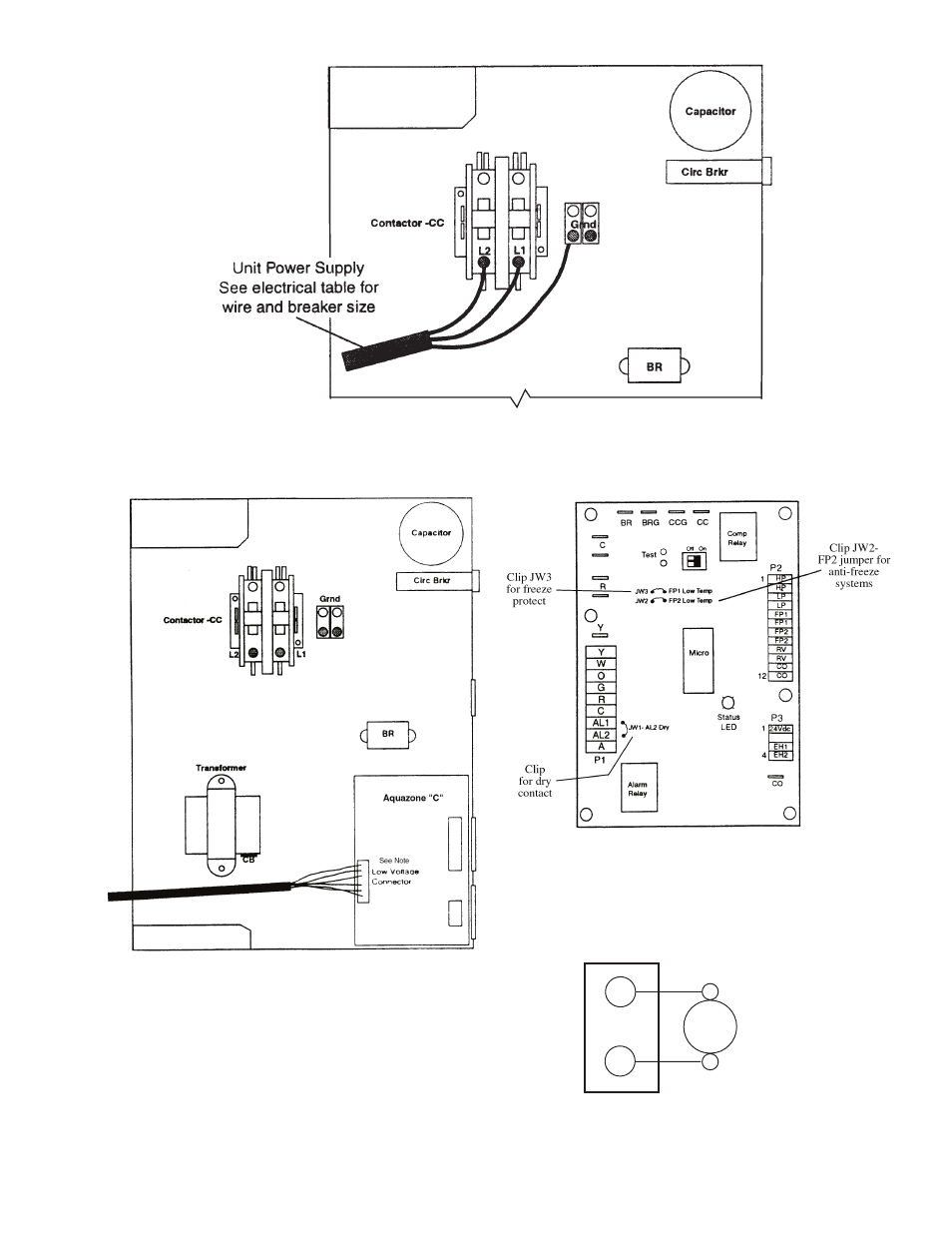

AQUAZONE CONTROL (C Control Shown)
Fig. 25 — Typical Aquazone Control Board
Jumper Locations
a50-6268tf.tif
NOTE: Low voltage connector may be removed for easy installation.
Fig. 24 — Low Voltage Field Wiring
a50-6267tf.tif
Fig. 23 — 50RHC,RVC,RHR,RVR,RHS,RVS,RDS Typical Single-Phase
Line Voltage Power Connection
a50-8162
TYPICAL
WATER
VALVE
C
A
24 VAC
TERMINAL STRIP P2
Fig. 26 — Typical D Control Accessory Wiring
