4. Dimensions (cont'd)
Blower-Type, Power-Vented Unit Heater
A
B
C
D
E
F
G
H
= O.D.
Venter Outlet
K
L =
Gas connection
(not supply line size)
M
N
P
R
S
T
U
W
X
Y
Z
B
K
13/16 (21) 13/16 (21)
3/4 (19)
10
(254)
2-1/4
(57)
Cabinet
Hanger
Location
1/8 (3)
4-1/4 (108)
1-11/16
(43)
3/4
(19)
Optional
Blower
Cabinet
Electrical Supply
Connection
(4) Suspension Points
3/8-16 Female Thread
Optional Blower Cabinet
Optional
Duct
Flange
2 (61)
7
6
J
REAR
RIGHT SIDE
FRONT
Dimensions (inches)
Dimensions (mm)
S ize
A
B
C
H
D
E
F
D
G
A C
H
J
K
A B
L
Hanger
Nat
Pro
25
756
344
1102
799
148
367
1559
102
261
406
13
13
50
756
344
1270
799
148
367
1559
102
261
406
13
13
75
756
395
1270
799
148
367
1559
102
267
406
13
13
100
756
446
1270
799
148
367
1559
102
328
406
13
13
125
756
592
1207
799
148
367
1674
127
367
406
13
13
165
1014
516
1549
913
124
495
1934
127
363
610
13
13
200
1014
592
1689
913
124
495
1934
127
366
610
13
13
250
1014
732
1689
913
124
495
1934
127
314
610
13
13
300
1014
732
1689
913
124
495
1934
152
314
610
19
13
400
1014
941
1689
913
124
495
1934
152
330
610
19
13
S ize
A
B
C
H
D
E
F
D
G
A C
H
J
K
A B
L
Hanger
Nat
Pro
25
29-25/32
13-9/16
43-3/8
31-7/16
5-27/32
14-7/16
61-3/8
4
10-9/32
16
1/2
1/2
50
29-25/32
13-9/16
50
31-7/16
5-27/32
14-7/16
61-3/8
4
10-9/32
16
1/2
1/2
75
29-25/32
15-9/16
50
31-7/16
5-27/32
14-7/16
61-3/8
4
10-17/32
16
1/2
1/2
100
29-25/32
17-9/16
50
31-7/16
5-27/32
14-7/16
61-3/8
4
12-29/32
16
1/2
1/2
125
29-25/32
23-5/16
47-1/2
31-7/16
5-27/32
14-7/16
65-29/32
5
14-7/16
16
1/2
1/2
165
39-15/16
20-5/16
61
35-15/16
4-7/8
19-15/32
76-1/8
5
14-9/32
24
1/2
1/2
200
39-15/16
23-5/16
66-1/2
35-15/16
4-7/8
19-15/32
76-1/8
5
14-13/32
24
1/2
1/2
250
39-15/16
28-13/16
66-1/2
35-15/16
4-7/8
19-15/32
76-1/8
5
12-11/32
24
1/2
1/2
300
39-15/16
28-13/16
66-1/2
35-15/16
4-7/8
19-15/32
76-1/8
6
12-11/32
24
3/4
1/2
400
39-15/16
37-1/16
66-1/2
35-15/16
4-7/8
19-15/32
76-1/8
6
13
24
3/4
1/2
S ize
M
A
N
A
P
A
R
A
S
B
T
B
U
A
W
A
X
E
Y
Z
Hanger
25
3-23/32
20-15/16
17-3/4
5-1/4
10-3/4
8-7/16
14-3/4
6-3/16
31-7/32
9-13/16
3
50
3-23/32
20-15/16
17-3/4
5-1/4
10-3/4
8-7/16
14-3/4
6-3/16
31-7/32
9-13/16
3
75
2-23/32
20-15/16
17-3/4
5-1/4
12-3/4
8-7/16
14-3/4
6-3/16
31-7/32
10-7/16
3
100
1-23/32
20-15/16
17-3/4
5-1/4
14-3/4
8-7/16
14-3/4
6-3/16
31-7/32
10-7/16
3
125
1-11/32
20-15/16
17-3/4
5-1/4
20-1/2
8-7/16
20-1/2
6-3/16
35-3/4
11-9/16
2-5/8
165
2-27/32
25-15/16
25-1/4
7-1/4
17-1/2
11-7/16
20-1/2
7-15/16
36-11/16
11-11/16
4-19/32
200
1-11/32
25-15/16
25-1/4
7-1/4
20-1/2
11-7/16
20-1/2
7-15/16
36-11/16
11-11/16
4-19/32
250
5-29/32
40-9/16
25-1/4
7-1/4
26
11-7/16
26
7-15/16
36-11/16
11-11/16
4-19/32
300
5-29/32
40-9/16
25-1/4
7-1/4
26
11-7/16
26
7-15/16
36-11/16
11-11/16
3-19/32
400
6-25/32
50-9/16
25-1/4
7-1/4
34-1/4
11-7/16
34-1/4
7-15/16
36-11/16
11-11/16
3-19/32

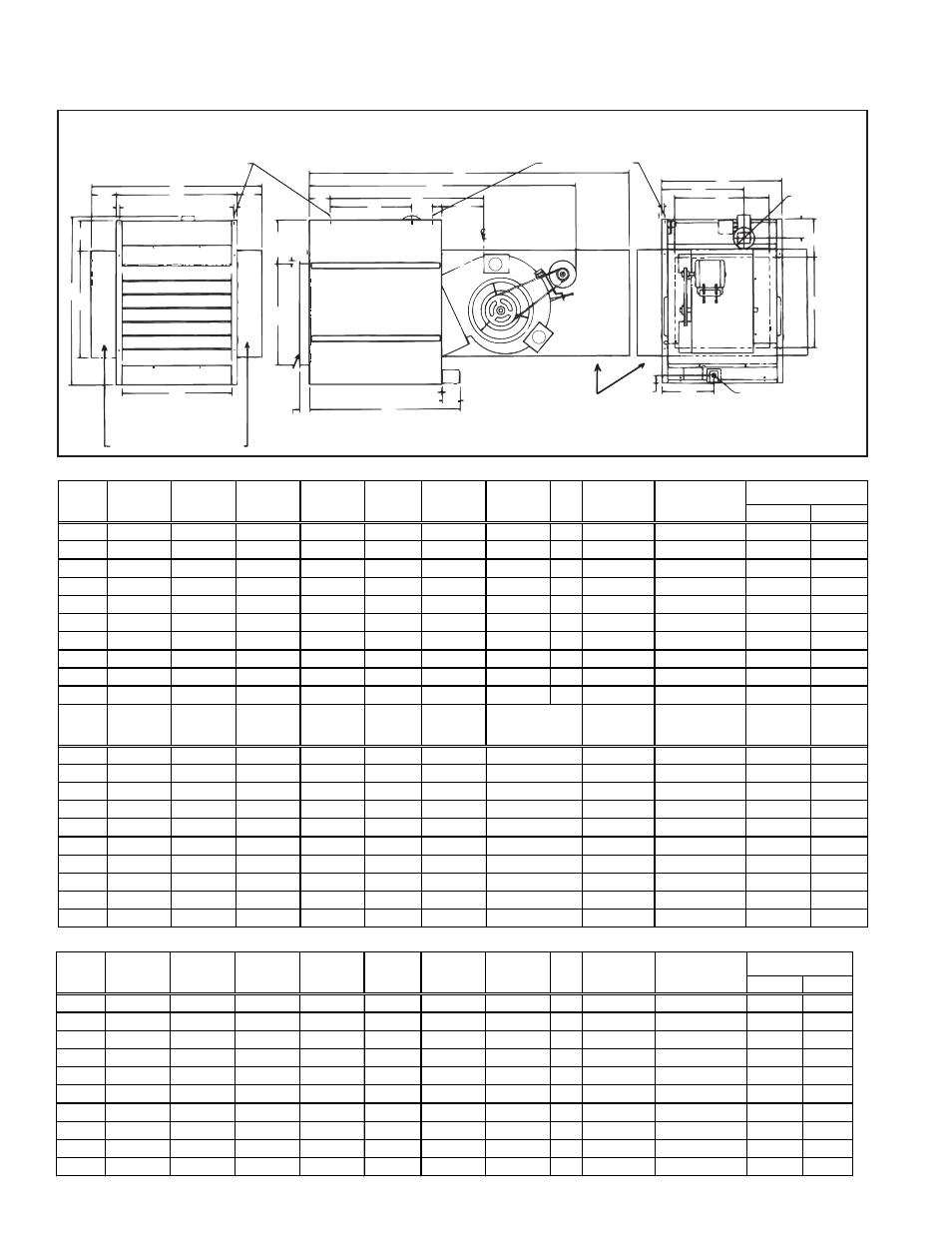

Figure 1B - Model BE Dimensions - inches (mm)
