Reznor RBL Option - Installation - Weather Hood Assembly - Manual (Page 7)

Form I-OPT-WH, P/N 132901 R13, Page 7

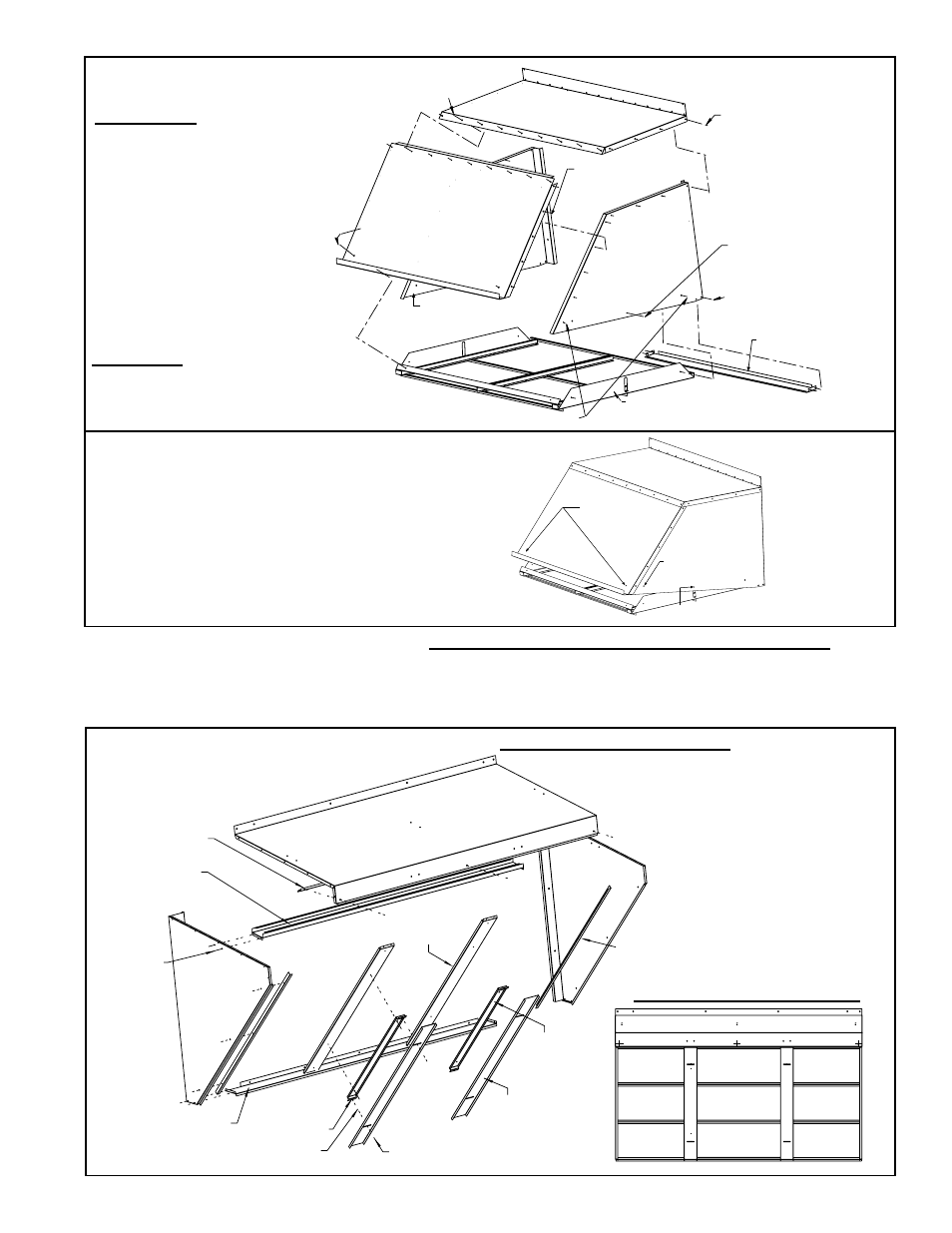

FIGURE 3D - Cabinet Size A & B, Option AS19
Hood Filter Removal Instructions
Applies to hoods in both FIGURE 3B and 3C.
1/2” Sheetmetal Screws
(Qty 9) P/N 11813
Hood Top, P/N 214411
(edge must be under the cabinet top) 1/2” Sheetmetal Screws
(Qty 8, 4 per side) P/N 11813
Top Panel
Slope Section,
P/N 214412
1/2” Sheetmetal Screws
(Qty 10, 5 per side)
P/N 11813
Left Side Panel,
P/N 194272
1/2” Sheetmetal Screws
(Qty 4, 2
per side) P/N 11813
3/4” Sheetmetal Screws
(Qty 2, 1 per side) P/N 99542
Hood Bottom, P/N 214416
Filter Frame Assembly, P/N 214414 - holds (4)
20x25x1 permanent aluminum filters, P/N 101610
1/2” Sheetmetal Screws (Qty 4, 2 per side) P/N 11813
1/2” Sheetmetal
Screws (Qty 2)
P/N 11813
Right Side
Panel,
P/N 194273
FIGURE 3E - Cabinet Size C with or without a power exhaust option - Attach
the top filter filler, the two vertical filter supports and the two side filter angles.
Attach the two inner filter spacers with wing screw receptacles. Position the nine
filters in the opening as shown. Secure the filters with the filter clamps and the
wing screws.
Filter Sizes: (4) 1x25x20
DO NOT remove this screw on either side.
Remove one screw
on each side .
On front,
remove
two screws. 1) Remove the four screws indicated.
2) Lower the tray.
3) Pull out filters.
4) Reverse to install filters.
Filter
16x20x1
Filter
16x20x1
Filter
16x20x1
Filter
16x25x1
Filter
16x25x1
Filter
16x25x1
Filter
16x20x1
Filter
16x20x1
Filter
16x20x1
Inlet View Showing Filter Arrangement
Top, P/N 255207
(Slide edge of top under cabinet top.)
Top Support,
P/N 208636
Vertical Filter
Supports,
(2) P/N 208632
Sheetmetal
Screws,
P/N 11813 Right Side,
P/N 208629
Left Side,
P/N 208630
Filter Angles
(2) P/N 208635
Filter Clamp
(2) P/N 208634
Bottom, P/N208631
Clip-on
Receptacle
for Wing Screw
(4) P/N 205708
Nylon Retainer for Wing
Screw (4) P/N 205709
Wing Head Screw
(4) P/N 205707
Top Filter Filler,
P/N 210146
Filter Spacer
(2) P/N 208633
FIGURE 3E - Installation of Outside Air Hood, Option AS16 or Option AS19, on Cabinet Size C
(See cross-reference of
MAPS ® III&IV cabinet size C and
model sizes on page 4.)
FIGURE 3C - Installation
of Outside Air Hood,
Option AS19, on Cabinet
Size B (can be used with
optional exhaust hood,
Option PE3 or AR2G,
and energy recovery
module, Option ER1B.)
(See cross-reference
of MAPS ® III&IV cabinet
sizes A and B and
model sizes on page 4.)
