Reznor RBL Option - Installation - Weather Hood Assembly - Manual (Page 6)

Form-I-OPT-WH, Page 6
FIGURES 3B and 3C, Cabinet Size A or B with a power exhaust option -
Install the filter frame with filters in place. Position the filter frame assembly in the
inlet opening of the hood. Attach at the front and back holes with 1/2" sheetmetal
screws. Insert a 3/4" sheetmetal screw at each of the center holes (one on each
side).
1/2” Sheetmetal
Screws (Qty 2)
P/N 11813
Left Side
Panel,
P/N 194272
3/4” Sheetmetal
Screws (Qty 2,
1 per side)
P/N 99542
Filter Frame Assy, P/N 214413
Holds four 18x20x1
permanent aluminum
filters, P/N 194903
Hood
Bottom
P/N 214415
1/2”
Sheetmetal
Screws
(Qty 4 -
2 per side)
P/N 11813
Right Side
Panel,
P/N 194273
1/2”
Sheetmetal
Screws
(Qty 18 -
9 per side)
P/N 11813
Hood T
op, P/N 214417
(edge must be under
the cabinet top)
1/2” Sheetmetal
Screws (Qty 4,
2 per side)
P/N 11813

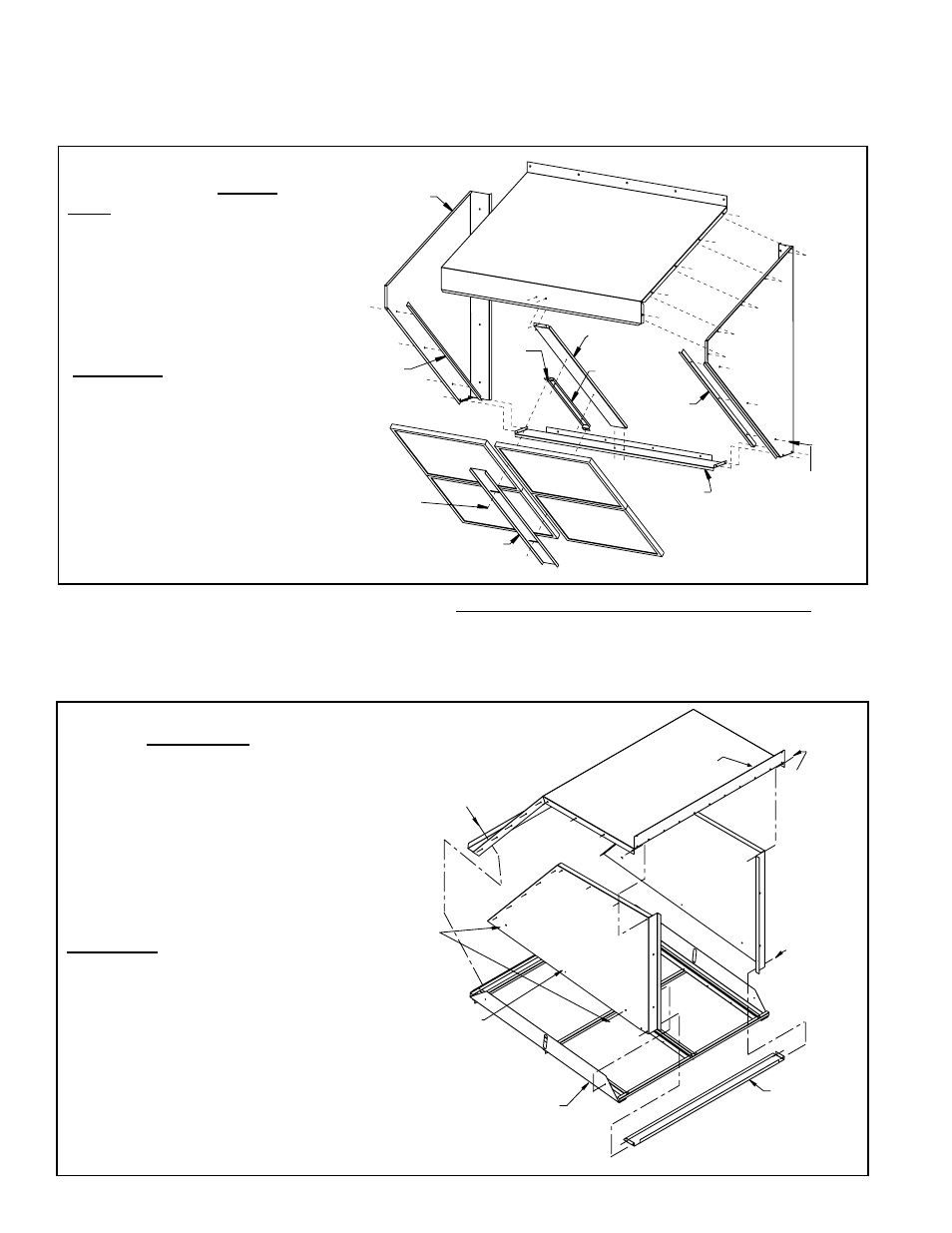

FIGURE 3B - Installation of Outside
Air Hood, Option AS19, on Cabinet
Size A (can be used with optional
exhaust hood, Option PE3 or AR2G,
and energy recovery module, Option
ER1A.)
(See cross-reference of MAPS ® III&IV
cabinet sizes and model sizes on
page 4.)
Filter Sizes: (4) 1x18x20
3.2 Option AS16 and Option AS19 on MAPS ® III&IV Cabinet Size A, B, and C (cont'd)
3.2.3 Installation Instructions (cont'd)
3.0 Components, Dimensions, and Installation Instructions (cont'd)
See Filter Removal
Instructions in FIGURE 3D.
Top (Slide edge of top
under cabinet top.)
Right
Side
Filter
Angle
Wing Screw,
P/N 205707,
and Retainer,
P/N 205709
(2 each)
Filter
Clamp
Filter
Bottom
Sheetmetal
Screws,
P/N 11813
Left
Side
Filter
Angle
Center
Support
Filter Spacer
Wing
Screw
Recep-
tacle (2)
Remove and reuse
screws from cabinet to att
ach this side of hood.
Filter
Filter
Filter
FIGURE 3A - Installation of
Outside Air Hood, Option
AS16, on Cabinet Sizes A
and B
(See cross-reference of
MAPS ® III&IV cabinet sizes
A and B and model sizes on
page 4.)
Filter Sizes
Cabinet A - (4) 1x16x20
Cabinet B - (4) 1x16x25
