DSMC FAN 2.0 UPGRADE INSTRUCTIONS
COPYRIGHT © 2014 RED.COM, INC 955-0012, REV-D | 25

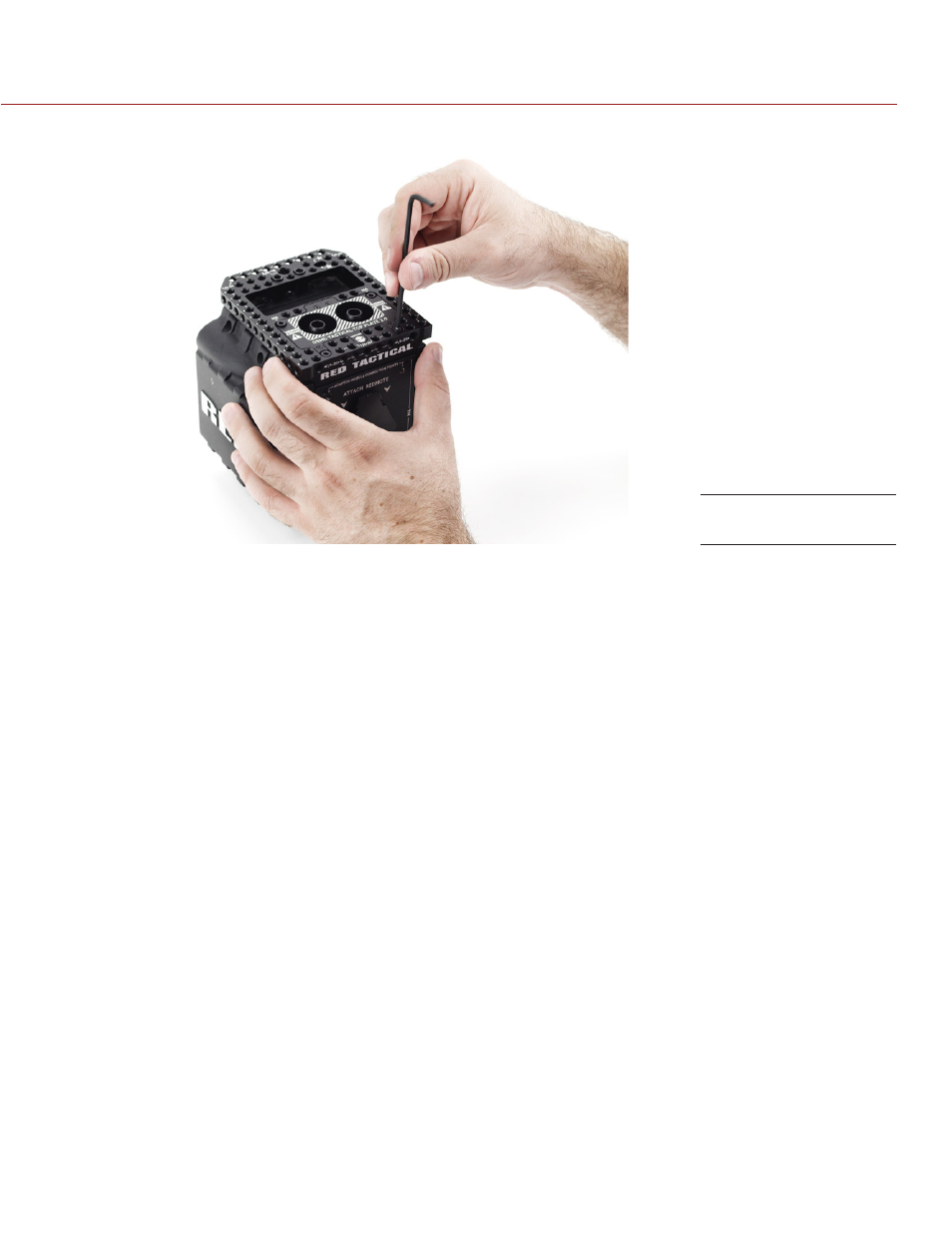

9. Use a 3mm Allen wrench to tighten the four (4) M4 screws by about two (2) turns. DO NOT FULLY TIGHTEN.
10. Fully tighten the 1/4-20 screws. DO NOT OVERTIGHTEN.
11. Tighten M4 screws in a cross pattern. DO NOT OVERTIGHTEN.
12. Reattach any DSMC accessories that you removed from the BRAIN.
13. Upgrade your firmware or perform a hardware rediscover to ensure that your camera recognizes the new
fan. For more information, go to “Configure Firmware” on page 26 .
NOTE: The top fan may not run immediately after turning on the DSMC, as the top fan runs only when the
DSMC requires additional cooling power.
NOTE: If you need to replace any screws, please contact your Bomb Squad representative.
Install M4 Screws
