DSMC FAN 2.0 UPGRADE INSTRUCTIONS
955-0012, REV-D
|
24

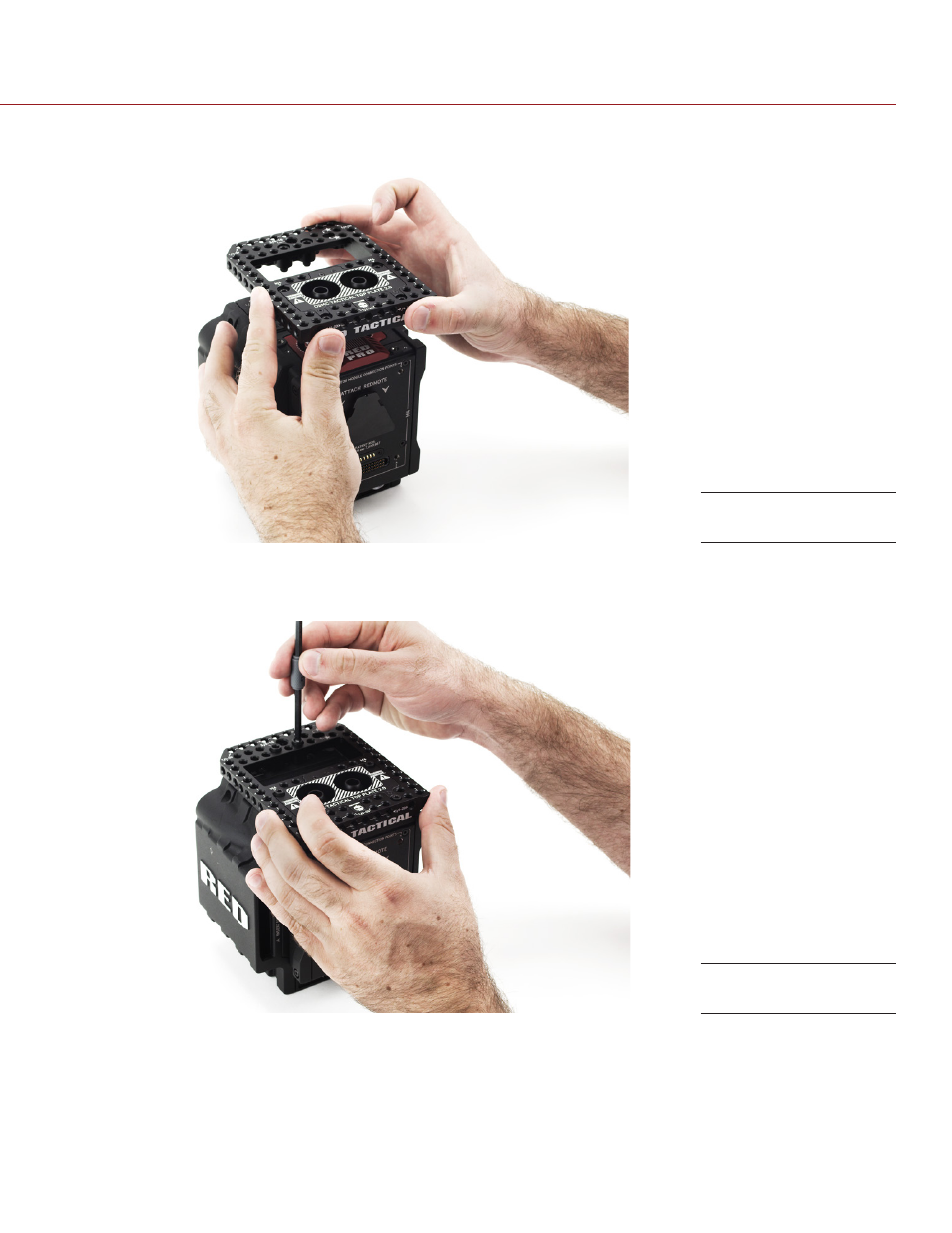

6. Place the DSMC TACTICAL TOP PLATE 2.0 on top of the fan.
7. Align the captive screws in the plate with the threaded holes on top of the DSMC BRAIN.
8. Use a 3/16 inch Allen wrench to tighten the two (2) 1/4-20 screws by about two (2) turns. DO NOT FULLY
TIGHTEN.
Place Plate on Fan
Install 1/4-20 Screws
