DSMC FAN 2.0 UPGRADE INSTRUCTIONS

955-0012, REV-D

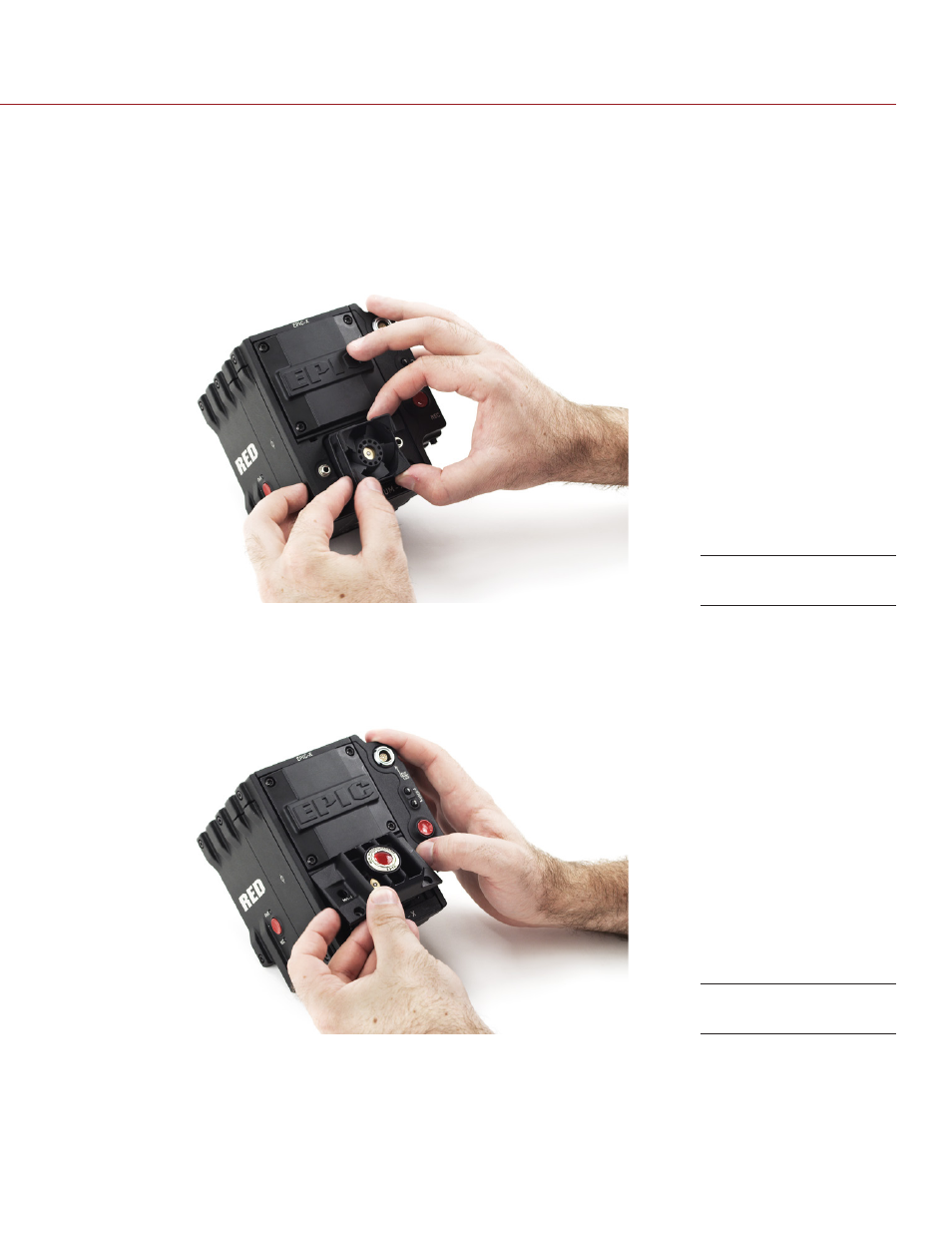

4. Insert the new fan assembly so that the fan bumpers are facing away from the camera, and that the label

on the fan is facing inward toward the camera. Keep the front of the fan assembly tilted forward, and make

sure that the connector cables are under the surface.
NOTE: DO NOT push the fan assembly into the seat all the way. Installing the fan grill will secure the fan as-

sembly.

5. Install the fan grill by pointing the top of the fan grill downward and sliding both tabs into the slots below

the DSMC Front Body Cap, so that the grill lies flat on top of the fan assembly.

Insert Fan

Install Fan Grill
