5. Attach the top vent scoop to the DSMC BRAIN by installing four (4) M3x0.5 x 6 mm cap screws with a T8
Torx driver. DO NOT FULLY TIGHTEN.
WARNING: DO NOT OVERTIGHTEN.
6. Tighten the M3x0.5 x 6 mm cap screws evenly. DO NOT exceed 30 in-oz, or damage may occur.
WARNING: DO NOT OVERTIGHTEN.
7. Reattach any DSMC accessories that you may have removed from the DSMC BRAIN.
8. Upgrade your firmware or perform a hardware rediscover to ensure that your camera recognizes the new
fan. For more information, go to “Configure Firmware” on page 26 .
NOTE: The top fan may not run immediately after turning on the DSMC, as the top fan runs when the DSMC
requires additional cooling power.
NOTE: If you need to replace any screws, please contact your Bomb Squad representative.

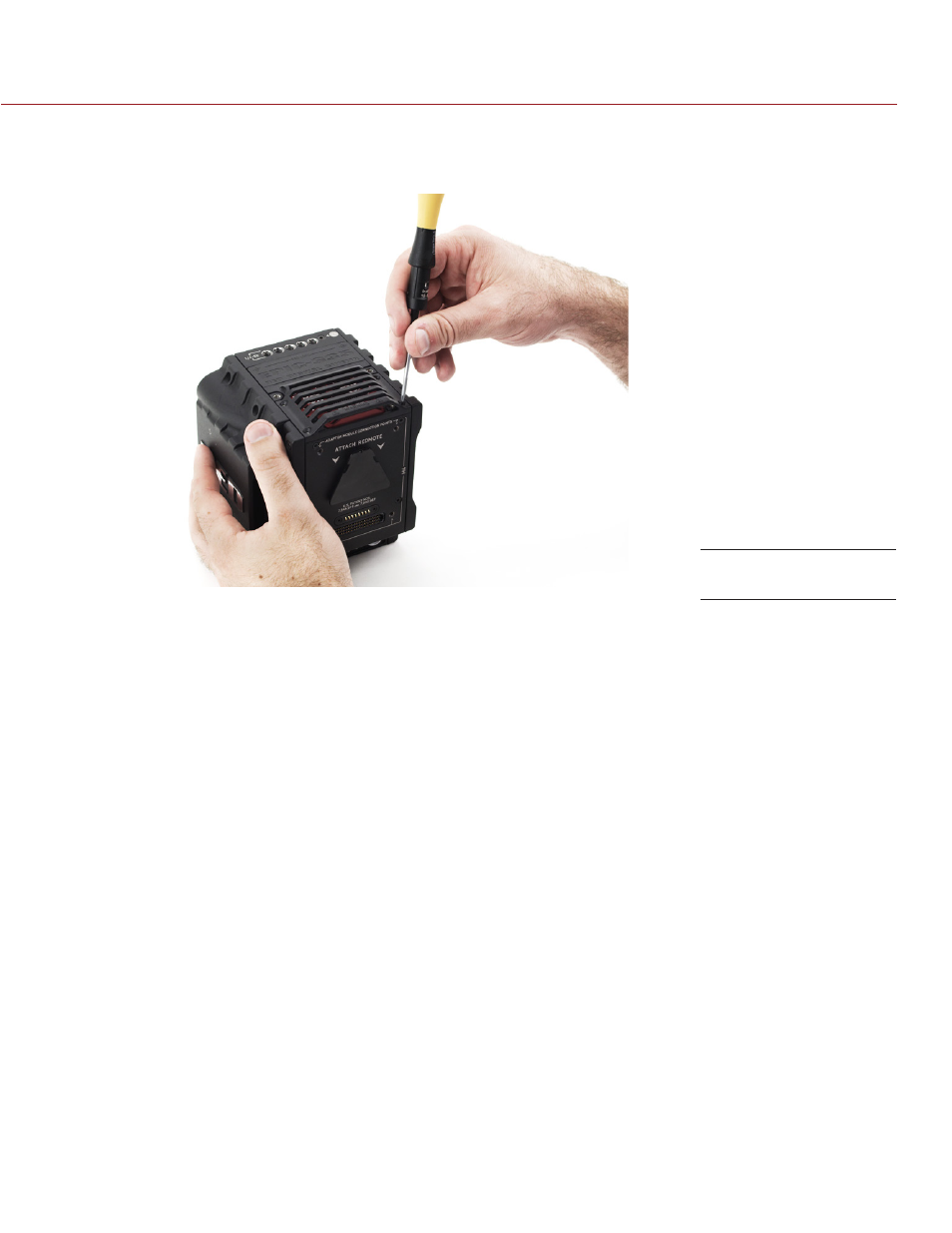

Install Cap Screws
