DSMC FAN 2.0 UPGRADE INSTRUCTIONS
COPYRIGHT © 2014 RED.COM, INC 955-0012, REV-D | 13
6. Use a T10 Torx driver to install the two (2) M3x0.5 x 6 mm cap screws (included) that attach the fan grill to
the DSMC BRAIN. DO NOT FULLY TIGHTEN.
7. Tighten the M3x0.5 x 6 mm screws evenly. DO NOT exceed 70 in-oz, or damage may occur.
WARNING: DO NOT OVERTIGHTEN.
8. Reattach the lens mount, lens, and any DSMC accessories that you removed from the BRAIN.
9. Upgrade your firmware or perform a hardware rediscover to ensure that your camera recognizes the new
fan. For more information, go to “Configure Firmware” on page 26 .
NOTE: If you need to replace any screws, please contact your Bomb Squad representative.

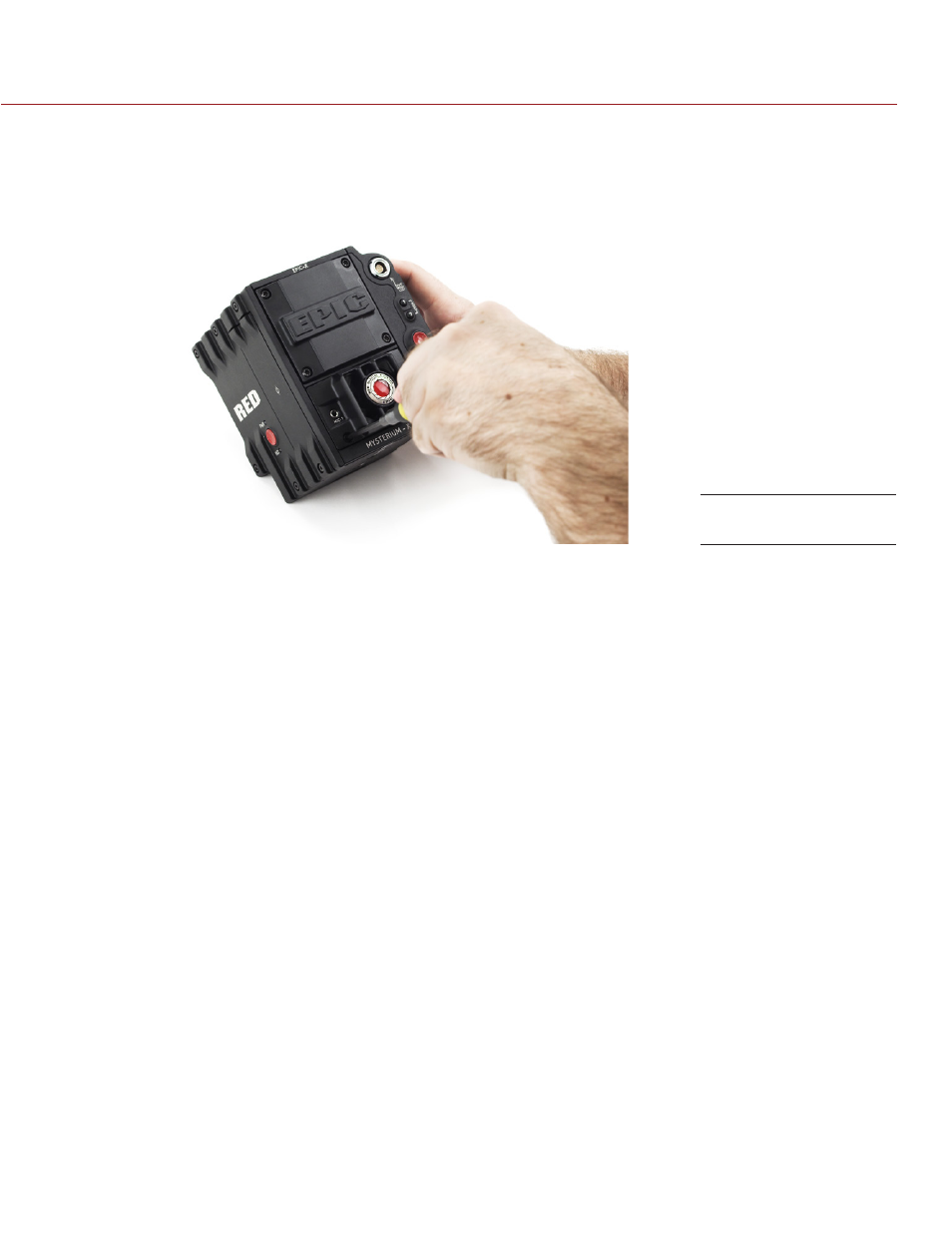

Install Cap Screws
