DSMC FAN 2.0 UPGRADE INSTRUCTIONS
955-0012, REV-D | 18

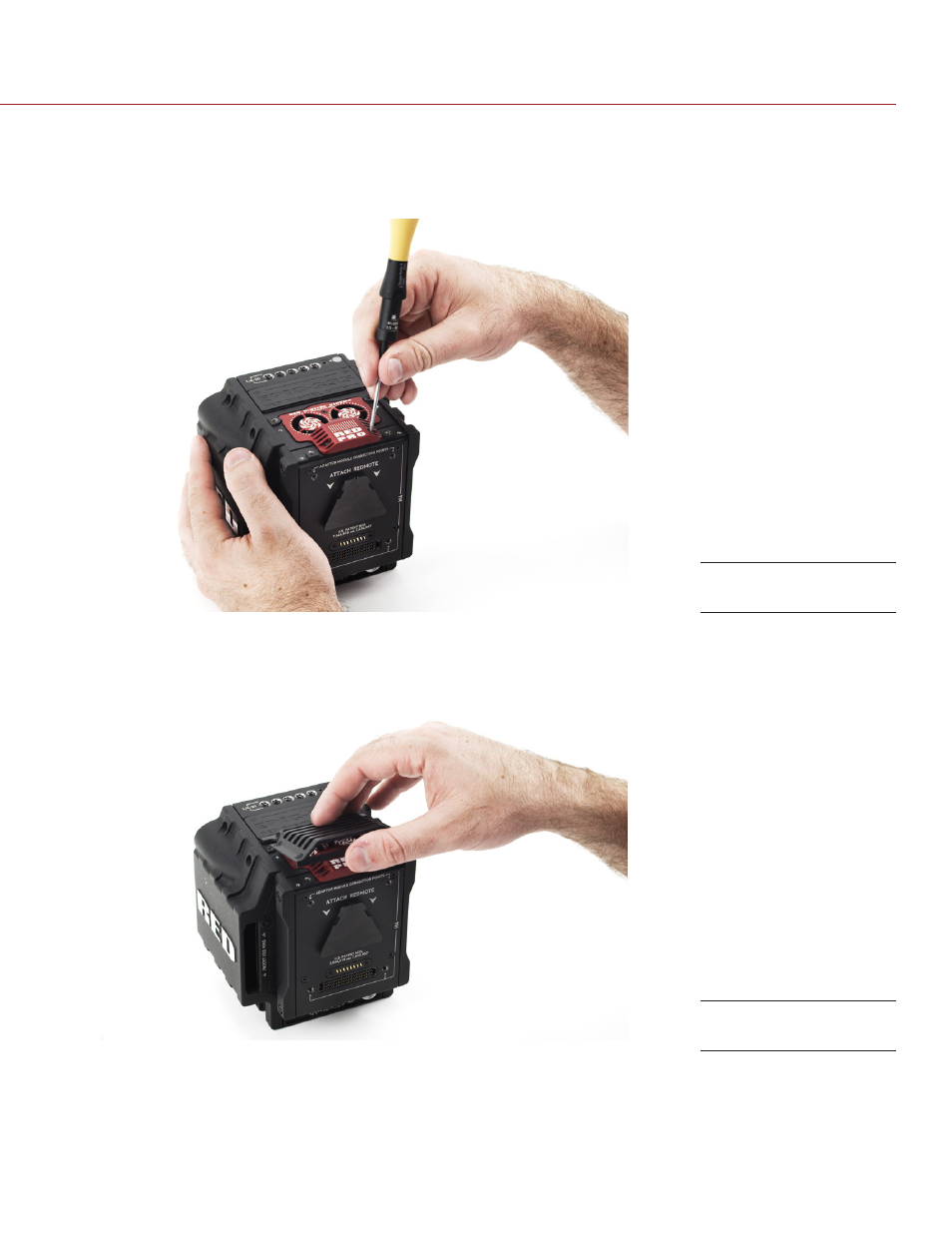

2. Attach the top fan to the DSMC BRAIN by installing two (2) M2x0.4 x 4 mm cap screws (included) with a
T6 Torx driver (included).
3. Tighten the M2x0.4 x 4 mm cap screws evenly. DO NOT exceed 30 in-oz, or damage may occur.
WARNING: DO NOT OVERTIGHTEN.
4. Place the top vent scoop on top of the fan.
Install Top Fan
Place Top on Fan
