PROHEAT G-I PCM SERVICE MANUAL
4-19
IGNITION MODULE
SCREWS (2)
NOZZLE
FLAME SHIELD
IGNITION
ELECTRODE
ASSEMBLY
FUEL PUMP
FUEL SHUT-OFF VALVE
FUEL REGULATOR

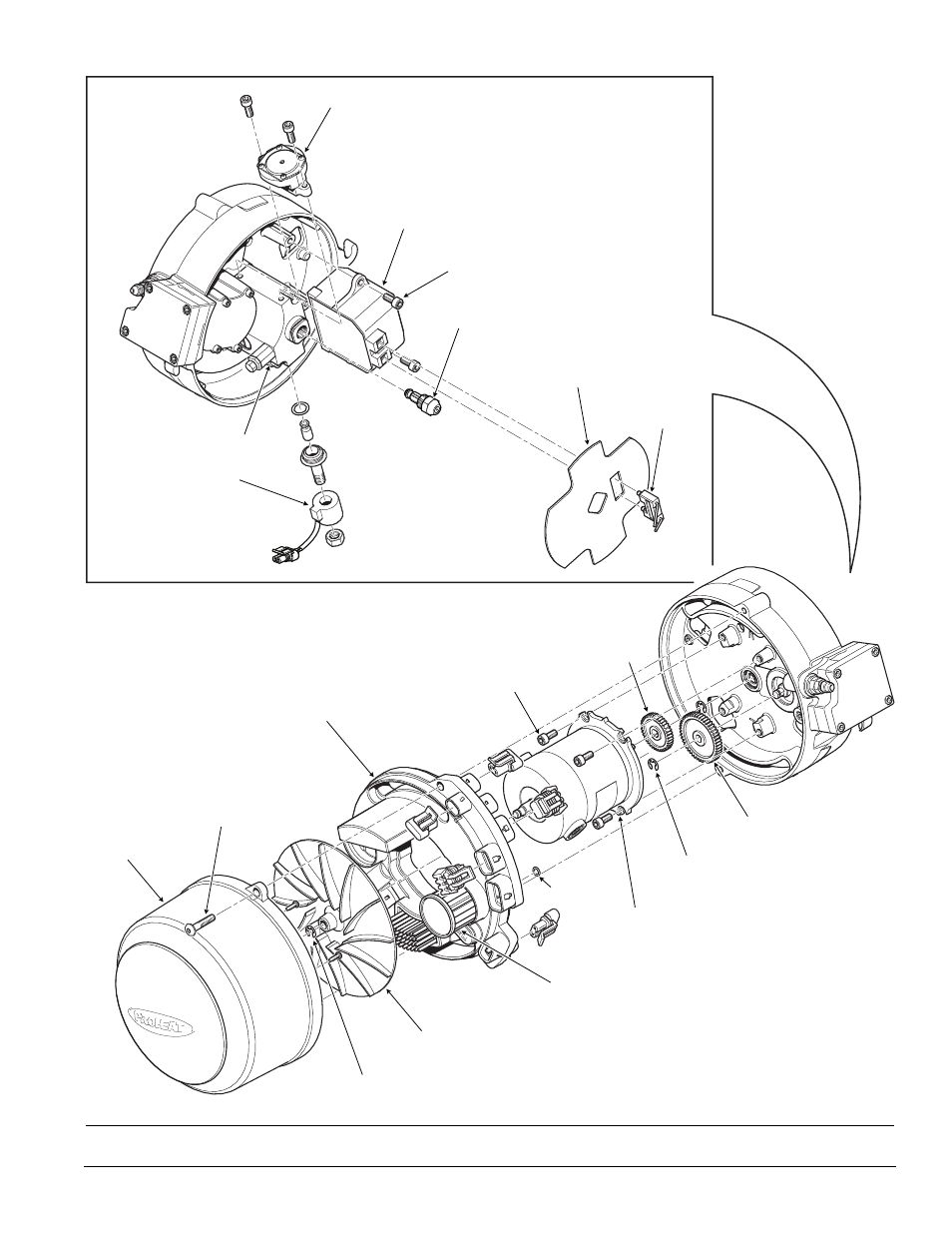

Figure 4-21: Fuel Supply Pump Removal
BLOWER
HOUSING
BLOWER RETAINING SNAP RING
BLOWER
AIR COMPRESSOR FILTER
DRIVE GEAR
G-I PCM
HOUSING SCREWS
TORQUE = SEE
SECTION 1.3
MOTOR SCREWS
TORQUE = SEE
SECTION 1.3
O-RING
MOTOR
AIR COMPRESSOR GEAR
AIR COMPRESSOR GEAR
RETAINING RING
