Replacing a gobo – PRG Bad Boy User Manual 1.6 User Manual

Page 83

BAD BOY

SPOT LUMINAIRE USER MANUAL

Replacing a Gobo

Parts:

Standard or Custom Gobo(s), as required.
(Refer to

Tools:

#2 Phillips screwdriver
Cotton gloves or finger cots

WARNING:

Remove power from luminaire before performing any maintenance procedures.

To replace a gobo:

Step

1. Remove power from luminaire.

Step

2. Locate appropriate head cover door for access to Rotating Gobo Wheel 1 (R1) or Rotating Gobo Wheel 2

(R2) as shown in Figure 4-10. (Doors are identified by a label.) Turn captive screw to open door.

CAUTION:

Do not touch gobos with bare fingers. Wear cotton gloves or finger cots when handling.

Step

3. Rotate wheel until desired gobo is accessible.

Step

4. Rotate Color Wheels so that their "open" position lines up next to the gobo you wish to replace. (This will

avoid potential damage to the adjacent wheels as the gobo is being replaced.)

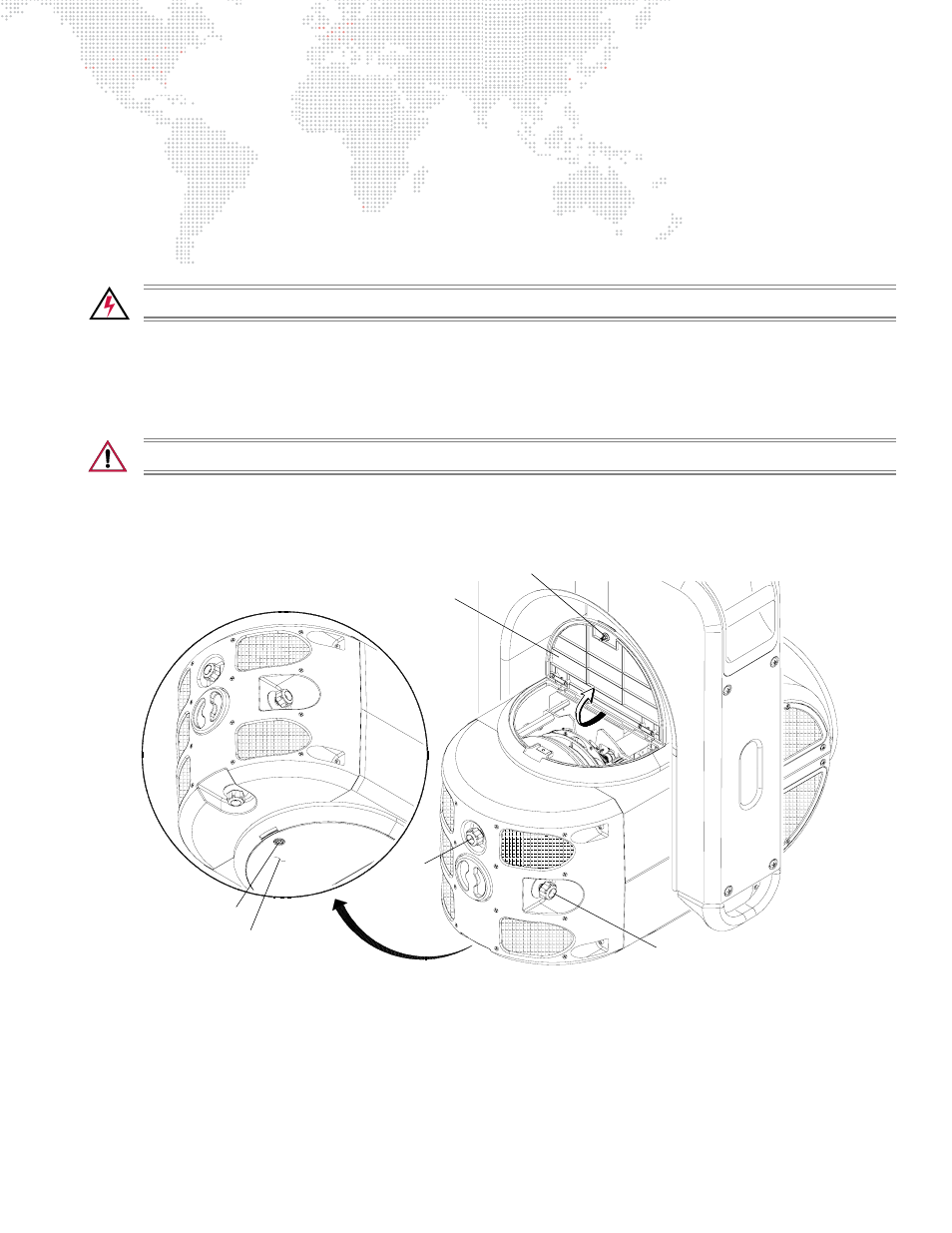

Figure 4-10: Accessing Gobo and Designer Color Wheels

Head Cover Door
R1 Wheel Access

Head Cover Door

R2 and Designer Wheel Access

Captive Screw
