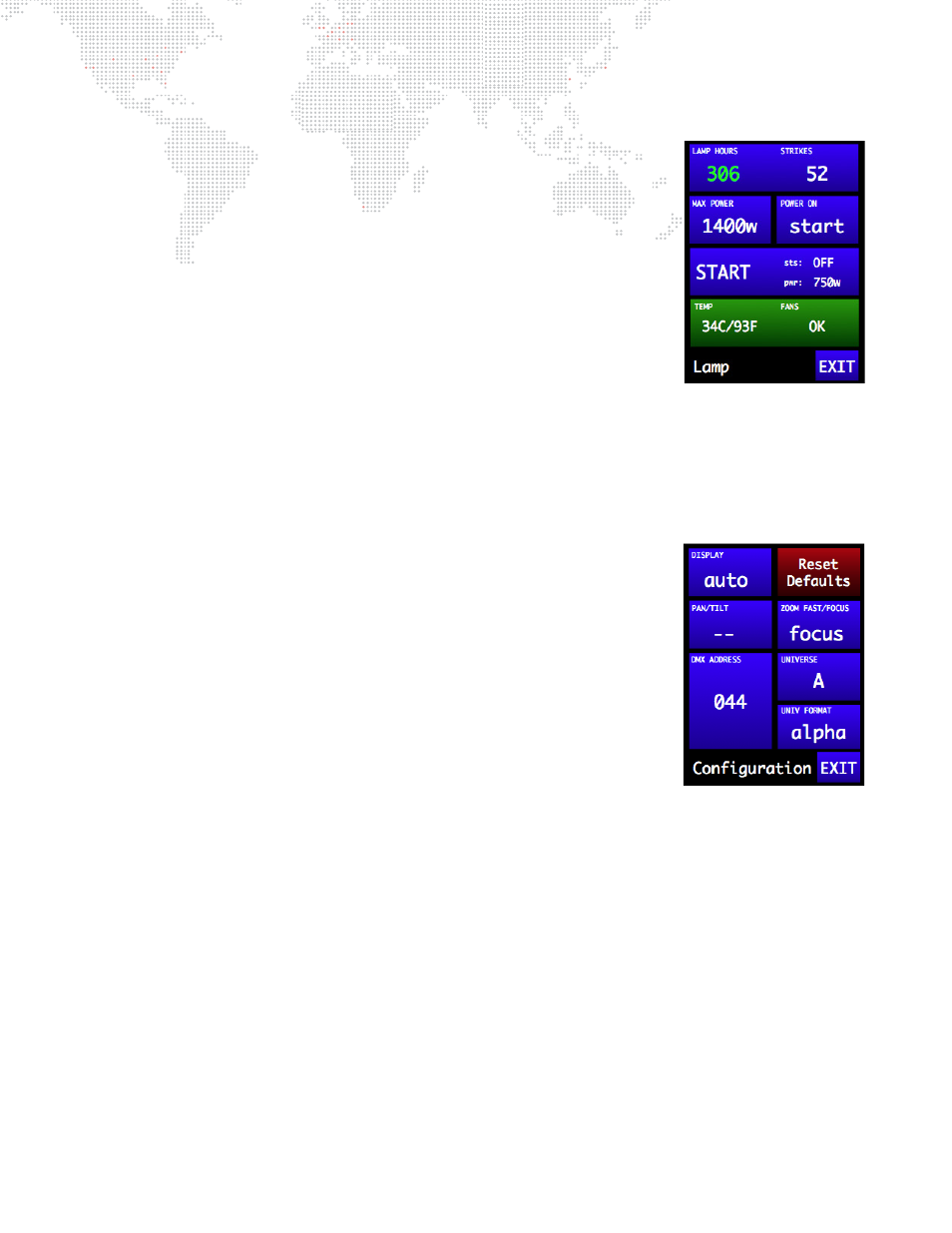

Lamp Screen
+
Lamp Hours- displays total lamp hours. Lamp hours are shown in green if under
threshold, yellow at 750 hours, and red at 900 hours.
It is mandatory that the lamp
be changed before 900 hours.
Press to bring up Reset Lamp Hours Yes/No
options.
+
Strikes - displays number of times the lamp has been struck.
+
Max Power - sets maximum power limit. Press to bring up 900/1200/1400 options.
(This setting is also accessible from the Control Channel. Refer to
.)
+
Power On - sets option to strike lamp automatically upon power up. Press to bring
up Start/Wait options.
+
Start/Douse - displays current lamp status and power setting. Press START/
DOUSE to bring up YES/NO options (depending on current lamp state).
+
Temp - displays head temperature in Celsius and Fahrenheit. The temperature is
shown in green if under limit, yellow at 65°C, and red at 75°C. At 75°C the lamp will
douse.
+
Fans - displays fan status as OK if all fans are running, or ERR (red) if any of the luminaire’s fans are not running.
Press EXIT to return to
.
Configuration Screen
+
Display - configures orientation of the Menu Touchscreen. Press to bring up Auto/
Up/Down options.
+
Reset Defaults - resets all configuration settings and address to default values.
Press to bring up "Reset All Defaults" Yes/No options. (Refer to following page for
a list of the default settings.)
+
Pan/Tilt - displays summary of pan/tilt settings:
lock = pan or tilt is locked.*
swap = pan/tilt is swapped.
invert = pan or tilt is inverted.
free = "free" control is enabled (for operating fixture as a follow spot).
Press to bring up
+
Zoom Fast/Focus - option which allow the zoom to move as fast as possible, or
to move a little slower and retain focus while zooming.
+
DMX Address - displays current DMX512 address. Press to bring up numeric
keypad for inputing the address.
+
Universe - displays current universe. Press to bring up alpha keypad or numeric keypad, based on universe
format selection.
+
Universe Format - displays alpha/numeric universe format. Press to bring up Alpha/Numeric options.
Press EXIT to return to
.
* When Pan and/or Tilt are locked, it prevents the fixture from moving when the power is reset. For example, if a fixture is
placed within a piece of scenery that could interfere with Pan and Tilt calibration, they can be locked so that only the
internal mechanisms calibrate.
Lamp Screen
Configuration Screen
