14 BAD BOY ® SPOT LUMINAIRE USER MANUAL
POWER AND DATA CABLING REQUIREMENTS
Power
The Bad Boy Spot Luminaire requires standard AC power distribution from 200-240 VAC, 50/60 Hz, 15A maximum.
The upper enclosure provides a Neutrik® connector for power input. Use the provided AC Line Cord Cable Assembly
(25.9812.0902.5) to connect power.

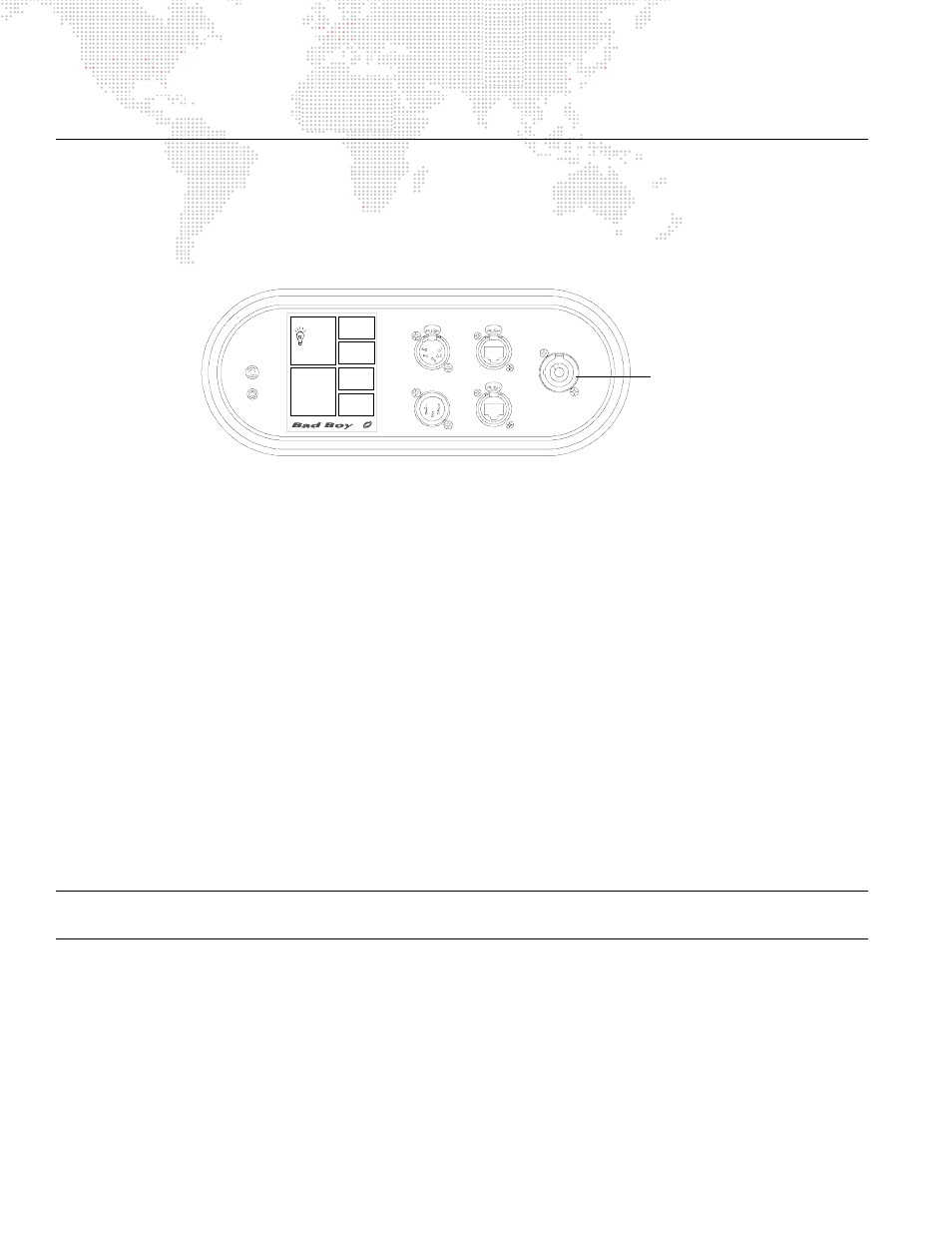

Figure 2-1: Power Input Connector
Refer to "AC Line Current / Power vs. Voltage" on page 85 for details on power consumption at various voltages.
Data
DMX512 Cables
The Bad Boy Luminaire is equipped with two, 5-pin XLR connectors for DMX IN and DMX THRU (out) applications.
DMX IN requires a 5-pin, female XLR connector and DMX THRU requires a 5-pin, male XLR connector. When
purchasing or constructing data cables, it is important that not only the correct cable type be used, but also quality
cable to ensure a reliable DMX512 system. Your cabling should meet the following USITT DMX specification
requirements:
+ Suitable for use with EIA485 (RS485) operation at 250k baud.
+ Characteristic impedance 85-150 ohms, nominally 120 ohms.
+ Low capacitance.
+ Two twisted pairs.
+ Foil and braid shielded.
+ 24 AWG minimum gauge for runs up to 1000 feet (300m).
+ 22 AWG minimum gauge for runs up to 1640 feet (500m).
Note: Microphone type cables and other general purpose, two-core audio or signal cables are not suitable for use
with DMX512.
CONFIG
addr 043
univ A
1400w
ETHERNET
COMM
IN
DMX
THRU
15A Max
AC IN
200 -240 VAC
50 / 60 Hz
LAMP
hrs 125
temp 34C
INFO
01:34
TEST
COMM
DMX
STATUS
OK
IS POW ERED
ACTIVE ON LY
WHEN FIXTURE
Neutrik® AC
Power Connector
