32 BAD BOY ® SPOT LUMINAIRE USER MANUAL

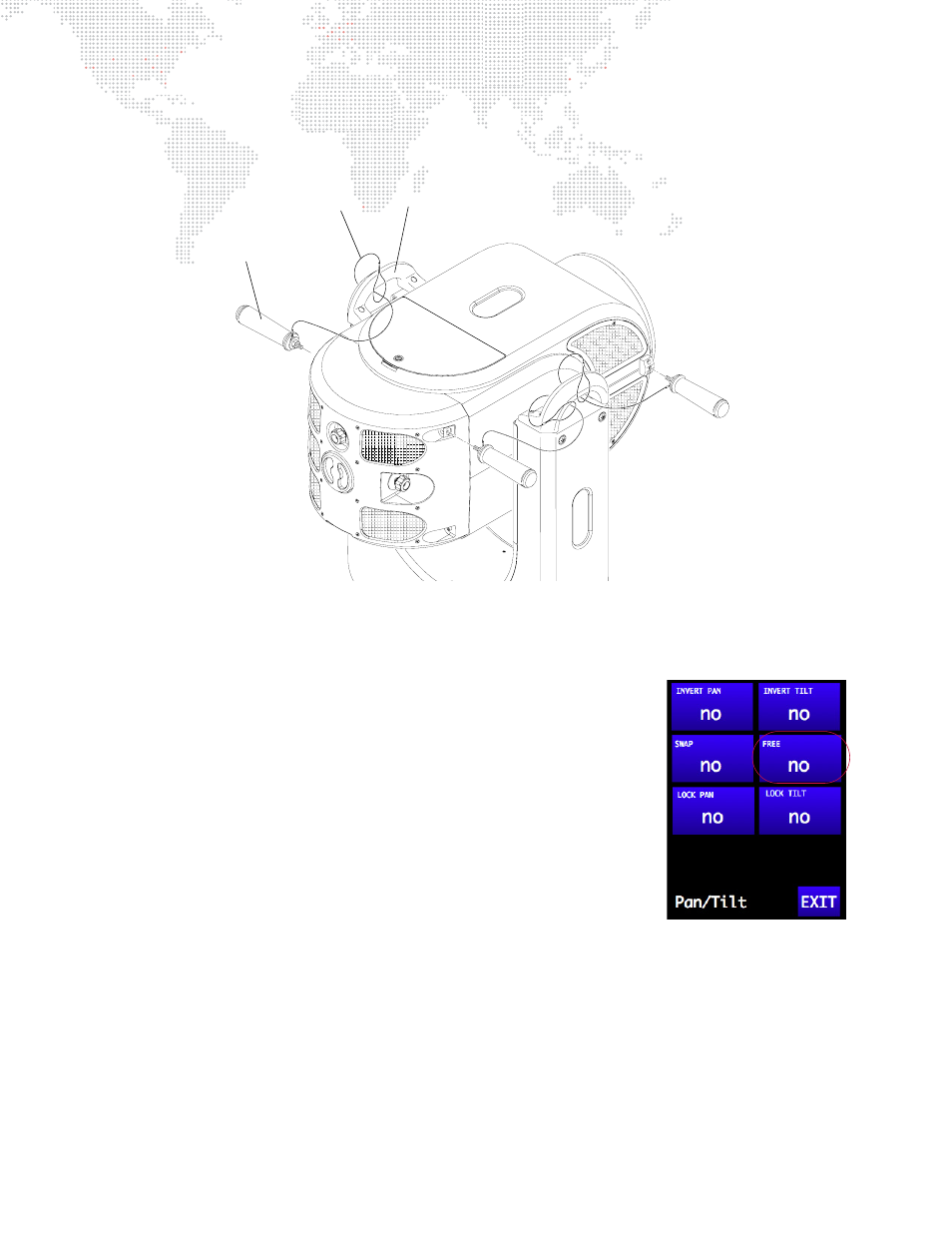

Step 3. For each Handle Assembly, feed Lanyard through yoke handle, then feed Handle through loop as shown in
Figure 2-19.
Step 4. Thread Handles into Handle Mounts.
Figure 2-19: Installing Follow Spot Handles - Step 2
Enabling Pan/Tilt Free Mode
At Pan/Tilt Menu:
A "Free" mode is available at the Pan/Tilt Menu screen so that the luminaire may be
used as a follow spot fixture.
The FREE panel displays the current "free" setting. Press to bring up Yes/No options.
Yes will enable "free" control, which allows the luminaire to be used as a follow spot.
Refer to "Pan/Tilt Screen" on page 39 for additional information about the Pan/Tilt
Menu items.
Using Control Channels:
The Free mode may also be enabled/disabled using control channels. Refer to
"Control Channels" on page 45.
Follow Spot
Lanyard Yoke Handle
Handle Assembly
Pan/Tilt Screen
