Lippert Components Hydraulic Through Frame Slideout - Manual (Page 33)

Rev: 07.09.2014
Page 33
2.5x2.5 Hydraulic Through Frame Slideout Webpage

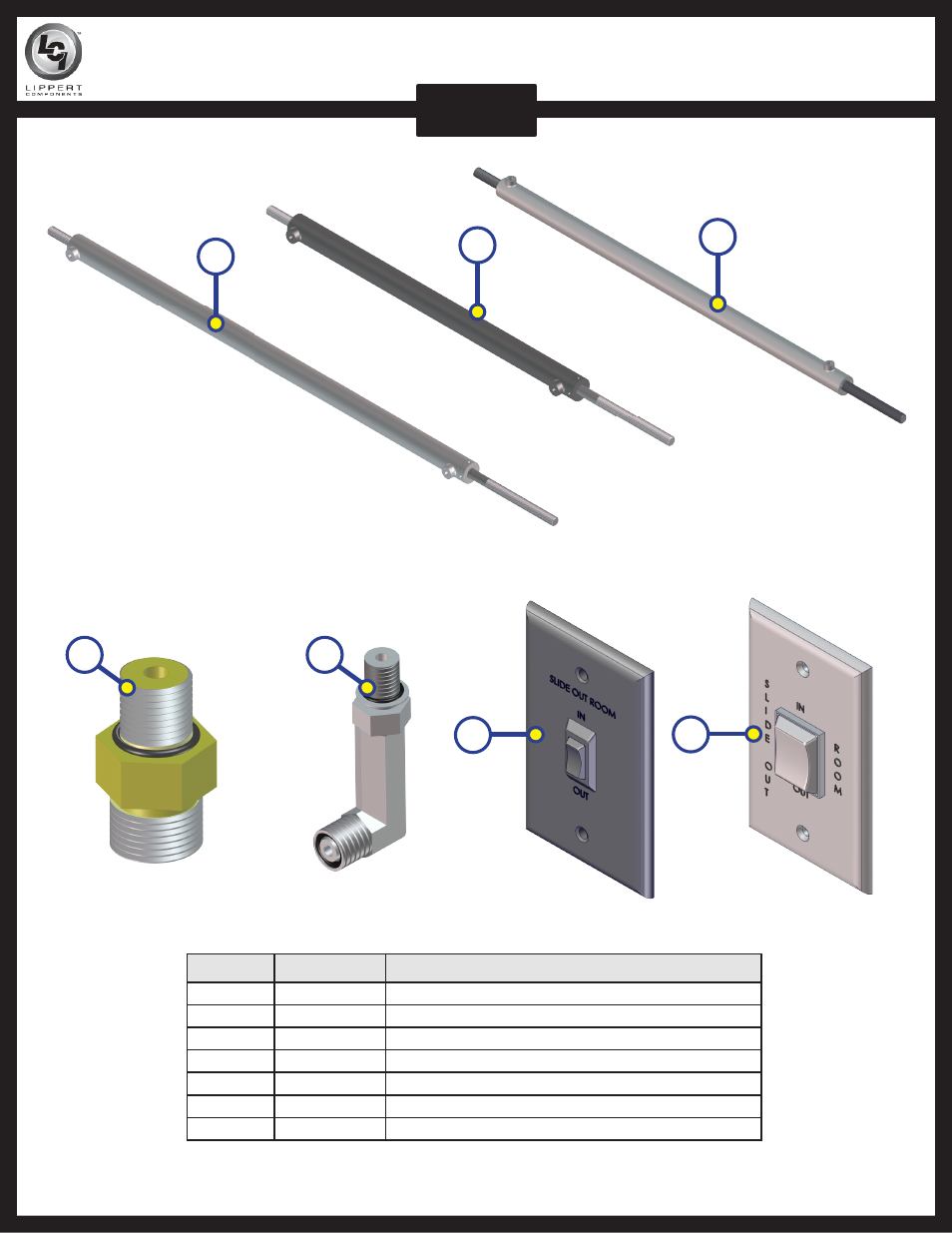

Callout Part # Description
A 123603 Hydraulic Cylinder 38"
B 125653 Hydraulic Cylinder 24"
C 133874 Hydraulic Cylinder 30"
D 141109 O-Ring Face Seal Straight Fitting
E 173738 O-Ring Face Seal Elbow Fitting
F 120639 Hydraulic Interior Slideout Switch
G 140530 6 Prong Interior Switch with Wall Plate
A
B
C
F G
D E
2.5X2.5 HYDRAULIC THROUGH FRAME
SLIDEOUT DRIVE COMPONENTS
SLIDEOUTS
