Lippert Components Hydraulic Through Frame Slideout - Manual (Page 29)

Rev: 07.09.2014
Page 29
2.5x2.5 Hydraulic Through Frame Slideout Webpage

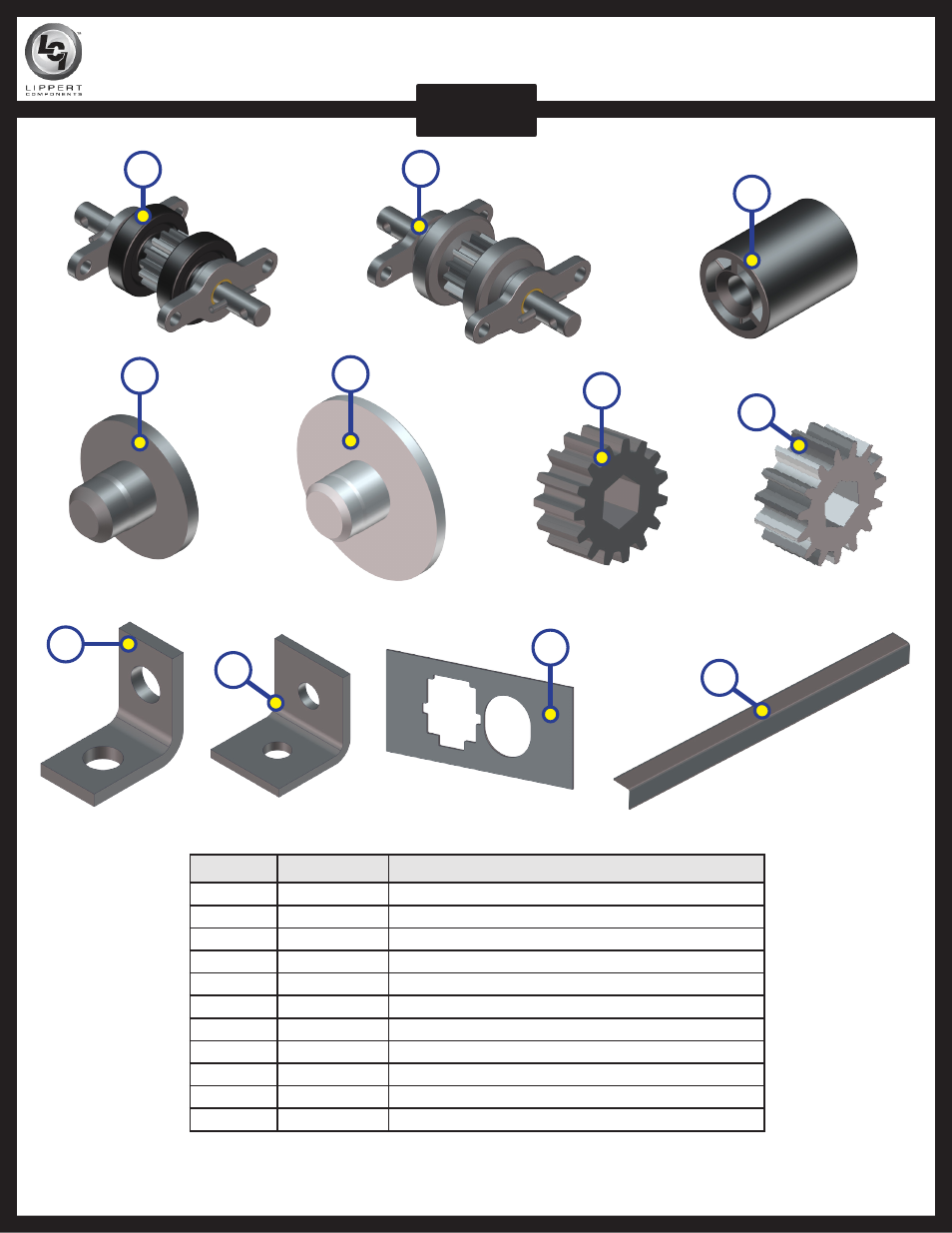

Callout Part # Description
A 122837 Gear Pack (Standard)
B 123356 Gear Pack (Heavy Duty)
C 105892 Rear Roller
D 103480 Wear Tab
E 277882 Wear Tab for 317322
F 101941 Spur Gear
G 328044 Spur Gear Heavy Duty
H 113535 Front Cylinder Bracket
I 106040 Rear Cylinder Bracket
J 106030 Trim Plate
K 102357 Stiffener
A B
C
D E
F
J
I
G
H
K
2.5X2.5 HYDRAULIC THROUGH FRAME
SLIDEOUT COMPONENTS
SLIDEOUTS
