Hydraulic Through Frame Slideout Owners Manual

Adjusting room so it seals in the OUT position

1. Locate cylinder coming through the frame.
2. Extend room completely out.
3. Check the inside fascia and seal positioning.
4. Partially retract room.
5. Loosen Jam nut (Fig. 1A) from Jam nut (Fig. 1B) and back off Jam nut (Fig. 1A) to give Jam nut (Fig. 1B)

room for adjustment.

6. Adjust Jam Nut (Fig. 1B) away from the bracket if the room extends to far and damages the inside

fascia or adjust Jam Nut (Fig. 1B) towards the bracket if the room does not seal.

NOTE: Make small adjustments running the room out after each adjustment until proper seal is achieved.
7. Tighten Jam Nut (Fig. 1A) to Jam Nut (Fig. 1B).

Adjusting room so it seals in the IN position

1. Locate cylinder coming through the frame.
2. Run room partially out.
3. Hold Jam nut (Fig. 1A) in place with wrench.
4. Adjust Nylock nut (Fig. 1C) towards the bracket if the room does not seal or adjust the Nylock nut

(Fig. 1C) away from the bracket if the room is too tight and damages the fascia.

NOTE: Make small adjustments running the room in after each adjustment until proper seal is achieved.

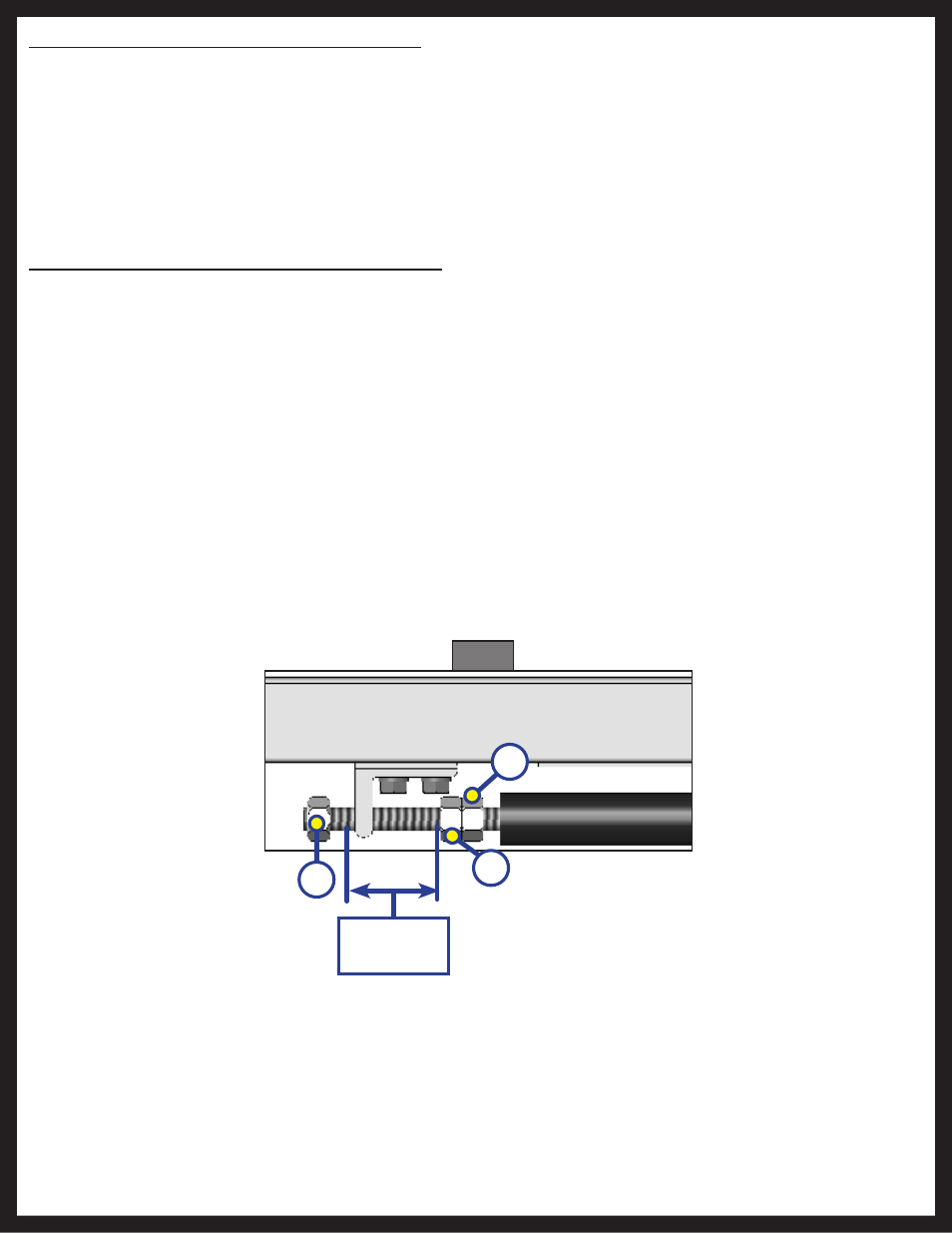

Fig. 1

2" - 3"

Free Travel
