Lippert Components Hydraulic Through Frame Slideout - Manual (Page 31)

Rev: 07.09.2014
Page 31
2.5x2.5 Hydraulic Through Frame Slideout Webpage

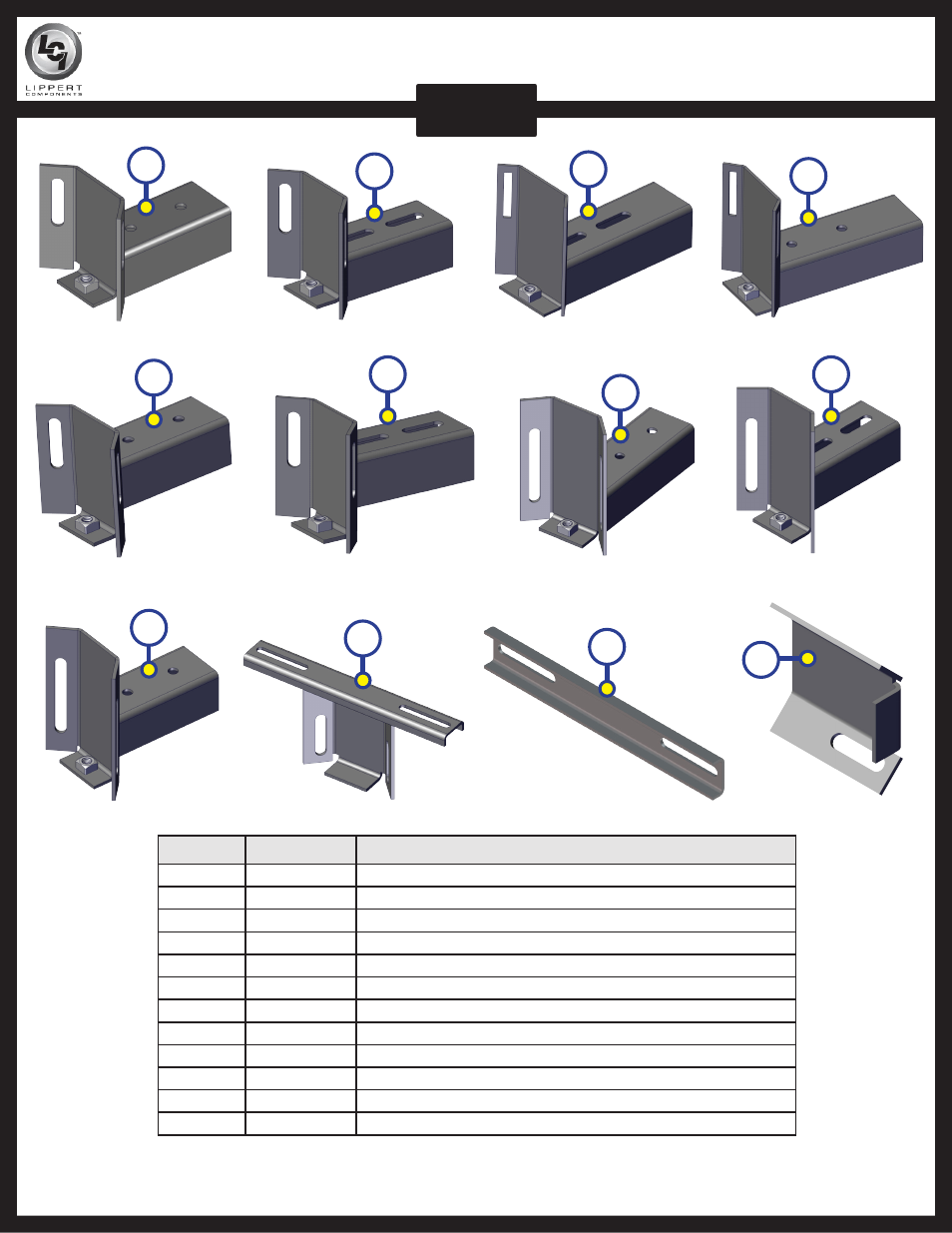

Callout Part # Description
A 118127 Flush Fixed Head Assembly
B 119157 Flush Adjustable Head Assembly
C 123999 Flush Adjustable, Tall & Extended Head Assembly
D 124000 Flush Fixed, Tall & Extended Head Assembly
E 145388 1 3/8" Fixed Head Assembly
F 145389 1 3/8" Adjustable Head Assembly
G 146612 Flush Fixed, Tall & Extended Head Assembly
H 151474 1 3/8" Adjustable Head Assembly
I 151475 1 3/8" Fixed Head Assembly
J 180461 Room Bar Assembly
K 105966 Room Bar Bracket
L 103139 Mounting Bracket
A
B C
D
E F
G
H
I
J
K
L
2.5X2.5 HYDRAULIC THROUGH FRAME
HEAD ASSEMBLIES (V-TECH)
SLIDEOUTS
