Hydraulic Through Frame Slideout Owners Manual
Motor troubleshooting
Before attempting to troubleshoot the motor, make sure an adequate power source is available. The unit batteries
should be fully charged or the unit should be plugged into A/C service with batteries installed. Do not attempt to
troubleshoot the motor without assuring a full 12V DC charge.
The following tests require only a DC voltmeter (or DC test light) and a jumper lead.
1. Attach voltmeter (or test light) leads to the negative and positive switch terminals on back of wall
switch. Does the meter indicate 12V DC? If YES, see Step 2; if NO see Step 3.
2. If YES, at the motor, check the incoming leads to 12V DC (if necessary, disconnect leads at wire splices).
Does meter indicate 12V DC? If YES, motor needs to be replaced. The motor is not field serviceable.
DO NOT ATTEMPT TO REPAIR. If NO, Inspect all wires and connections between the wall switch and
the motor. Repair connections as necessary. Recheck as in Step 1.
3. If NO, Inspect all connections between battery and switch. Inspect 30A Auto-reset Circuit Breaker (See
Next Page). Recheck as above in Step 1.
4. Since there are no field serviceable parts in the motor, electrical troubleshooting and service is limited
to replacing only those components as previously outlined.
5. Thorough inspection of wiring and connections is the only other electrical service that can be
performed.
Green - Motor CCW
Black - Power
Yellow - Motor CW
Red - Motor CW
Black with
Black Jumper
Red Jumper
Green
Yellow
Red with Red Jumper
Black Jumper

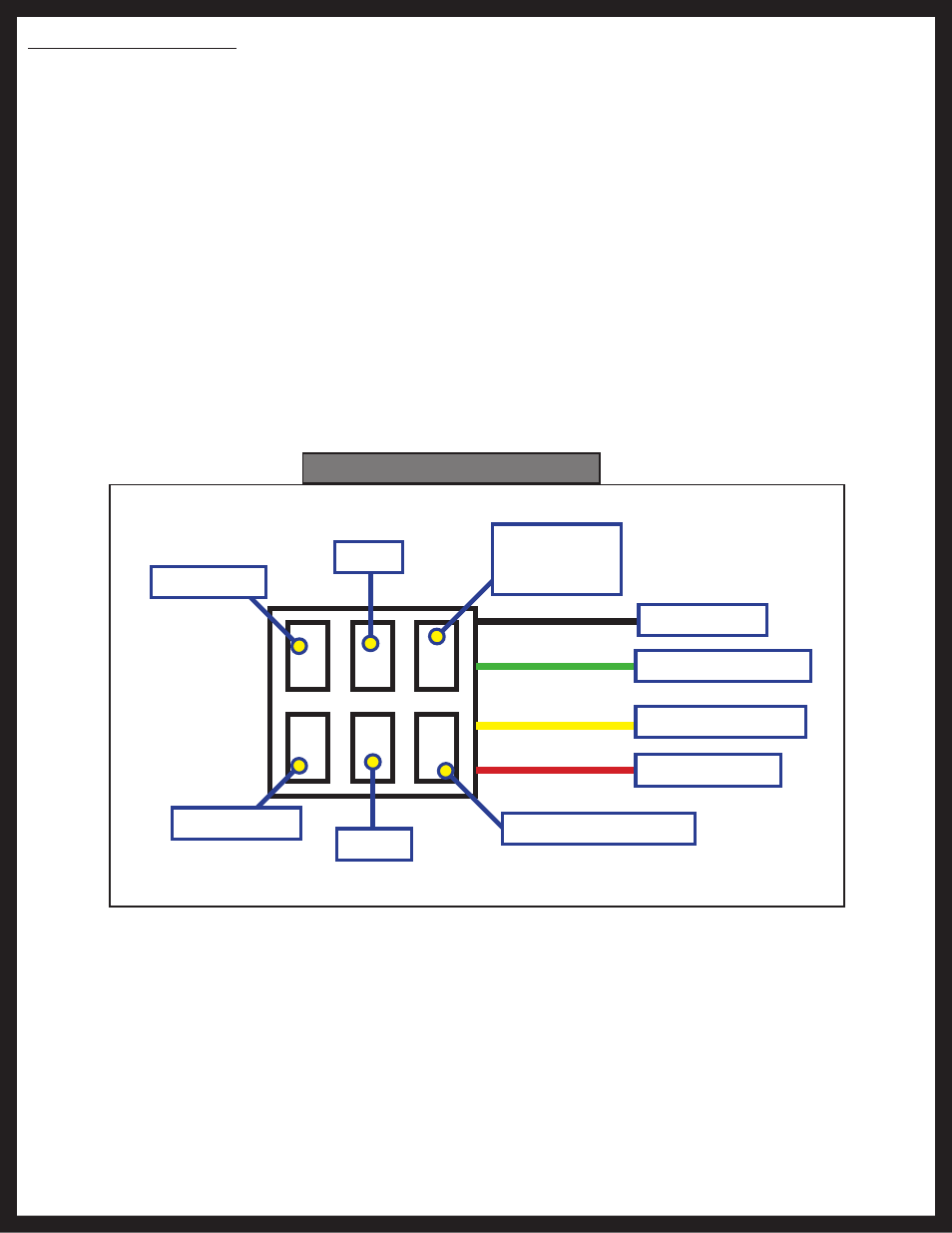

Fig. 1 Slideout Switch Color Codes
