2x3 hydraulic through frame slideout components – Lippert Components Hydraulic Through Frame Slideout User Manual
Page 27
Rev: 07.09.2014
Page 27
2x3 Hydraulic Through Frame Slideout Webpage

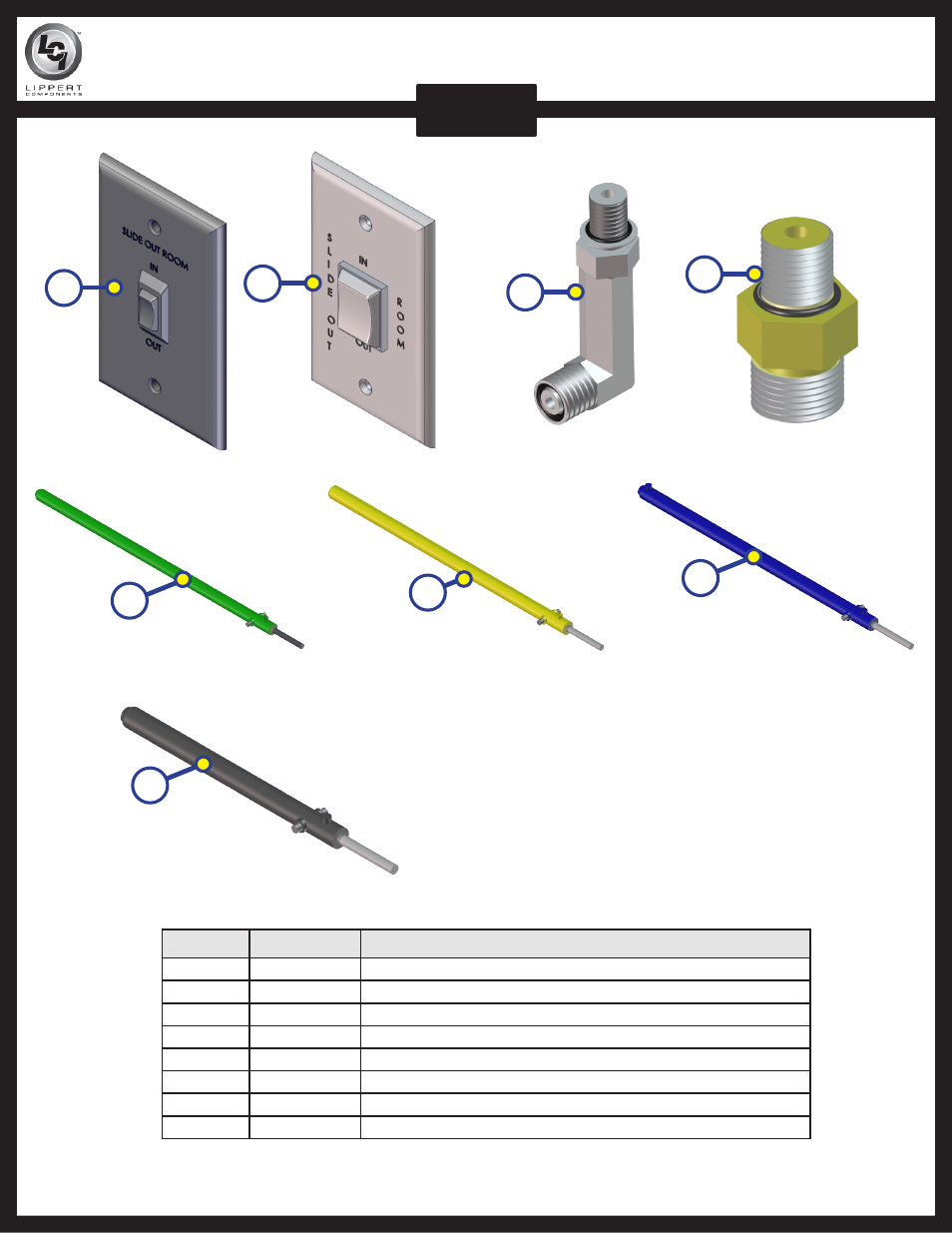

2X3 HYDRAULIC THROUGH FRAME SLIDEOUT COMPONENTS
Callout
Part #
Description
A
120639
Hydraulic Interior Switch
B
140530
6 Prong Interior Switch with Wall Plate
C
173738
O-Ring Face Seal Elbow Fitting
D
141109
O-Ring Face Seal Straight Fitting
E
213750
36 ½" Hydraulic Cylinder
F
158499
31 ½" Hydraulic Cylinder
G
138720
30 ½" Hydraulic Cylinder
H
140930
16 ½" Hydraulic Cylinder
A
B
C
D
E
F
G
H
2X3 HYDRAULIC THROUGH FRAME
SLIDEOUT DRIVE COMPONENTS
SLIDEOUTS
