Hydraulic Through Frame Slideout Owners Manual

Mechanical Room Adjustment

NOTE: All slideout room adjustments must be performed by certified service technicians. Adjustments

made by non-certified persons may void any and all warranty claims.

Horizontal adjustment

1. Loosen carriage bolts (Fig. 2A) on each bracket located at the end of each guide tube.
2. Room is ready to be positioned horizontally by pushing on the outside, sidewall or by using a prying

device inserted into the opening between the room and coach.

NOTE: Use caution when using prying device so seals do not become damaged.

Vertical adjustment

1. Loosen 2 carriage bolts (Fig. 2A) on each bracket located at the end of each guide tube.
2. Loosen jam nut.
3. For vertical adjustment turn vertical adjustment bolt (Fig. 3A) up or down to locate room height.
4. Once room is located, tighten carriage bolts (Fig. 2A) and Jam Nut bolts.

Synchronizing Room Travel

The Lippert Hydraulic Slideout System room travel (both sides of the room traveling the same distance) can be

adjusted with specially designed synchronizing bracket mounted on the passive slide tube. The passive slide tube is

the one that is not powered. The active slide tube is the one that has the cylinder attached. If one side of the room

fails to seal adjust as follows:

1. Loosen bolts (Fig. 4A) on top of the passive slide tube (Fig. 4B).
2. Push or pull room (on the passive side) to align with the active side.

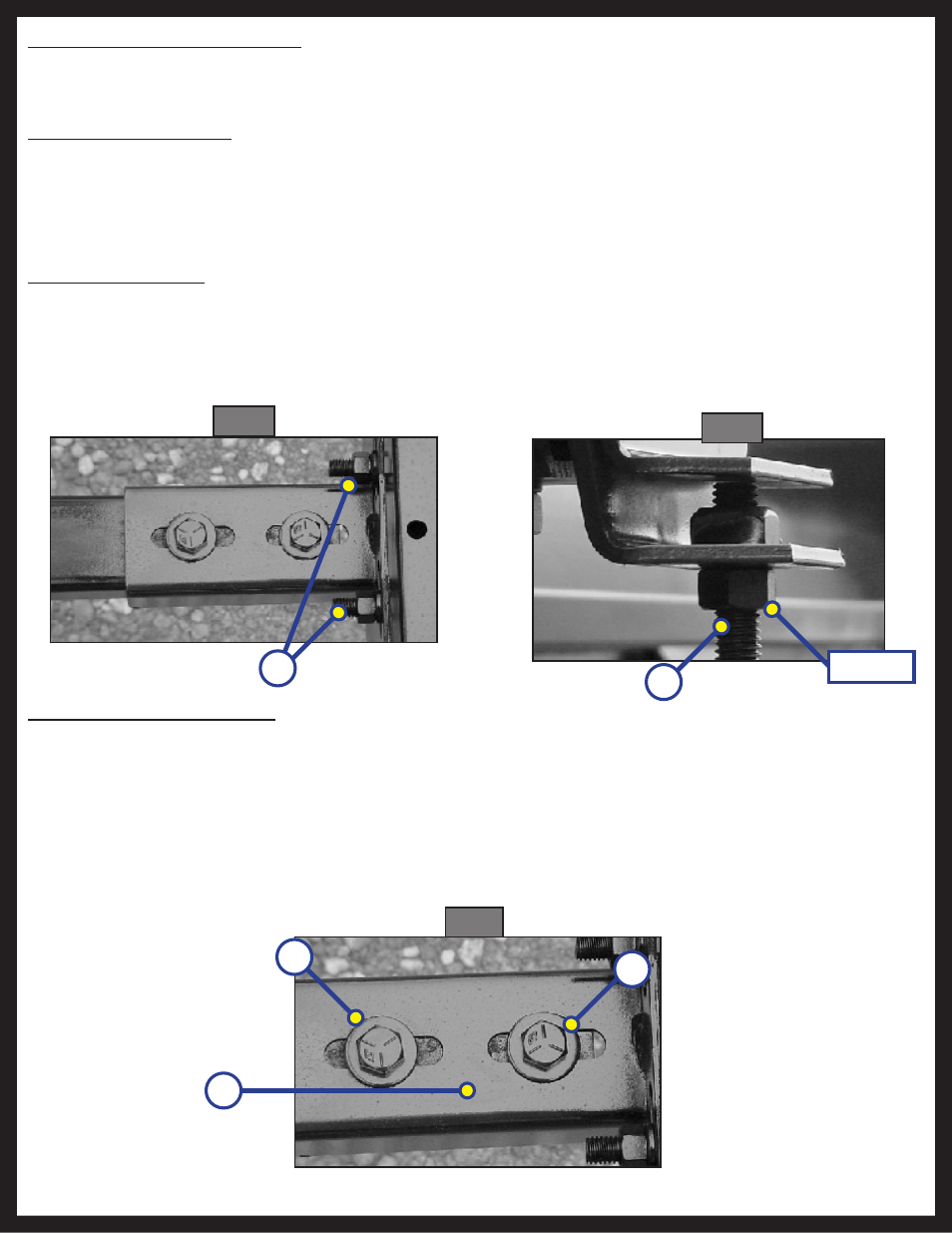

Fig. 2

Fig. 3

Fig.4

Jam Nut
