Gear pack replacement instructions – Lippert Components Hydraulic Through Frame Slideout User Manual
Page 11
Rev: 07.09.2014
Page 11
Hydraulic Through Frame Slideout Owners Manual
GEAR PACK REPLACEMENT INSTRUCTIONS
SLIDEOUTS
In the event a gear pack needs to be replaced, follow these steps:
1. Run slideout room half way out.
2. Place a jack under the inner arm of the slideout.
3. Jack room up just enough to remove pressure off the gear pack.
4. Remove drive bolt from the cross shaft.
5. Remove bolts which hold the gear pack assembly in place on the outer rail.
6. Drop out the damaged gear pack.
7. Install the new gear pack.
8. Install bolts to hold gear pack assembly in place on the outer rail.
9. Install cross shaft and bolt.
10. Gear pack assembly does not need to be torqued down, only adequately and securely tightened.

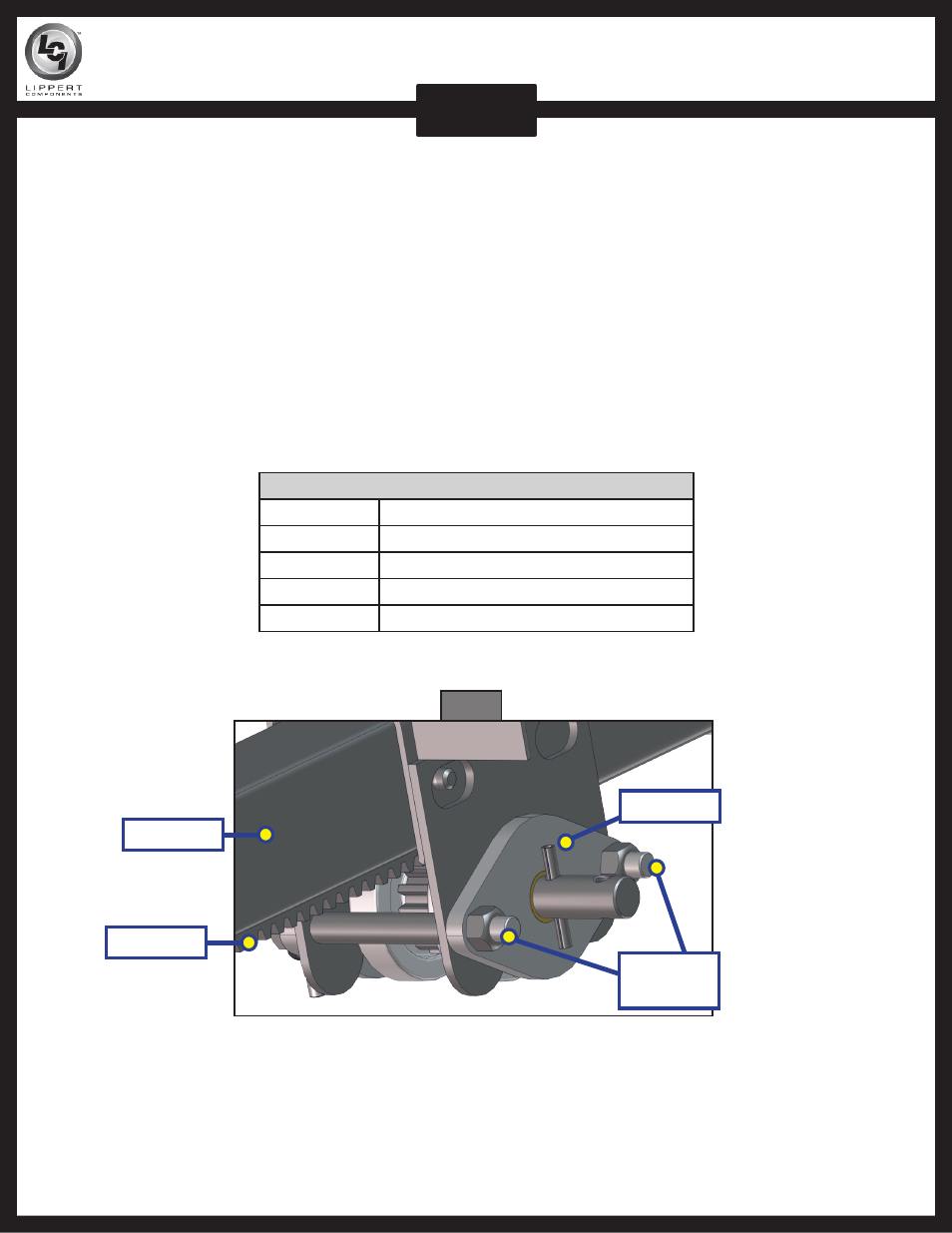

Fig. 1
Gear Pack
Outer Rail
Mounting
Bolts
Gear Rack
Gear Packs
281331
2 x 2
140409
2 x 3, 3 x 3
122837
Standard 2.5 x 2.5
123356
Heavy Duty 2.5 x 2.5
140418
Embedded Rack
