Lippert Components Hydraulic Through Frame Slideout - Manual (Page 30)

Rev: 07.09.2014
Page 30
2.5x2.5 Hydraulic Through Frame Slideout Webpage

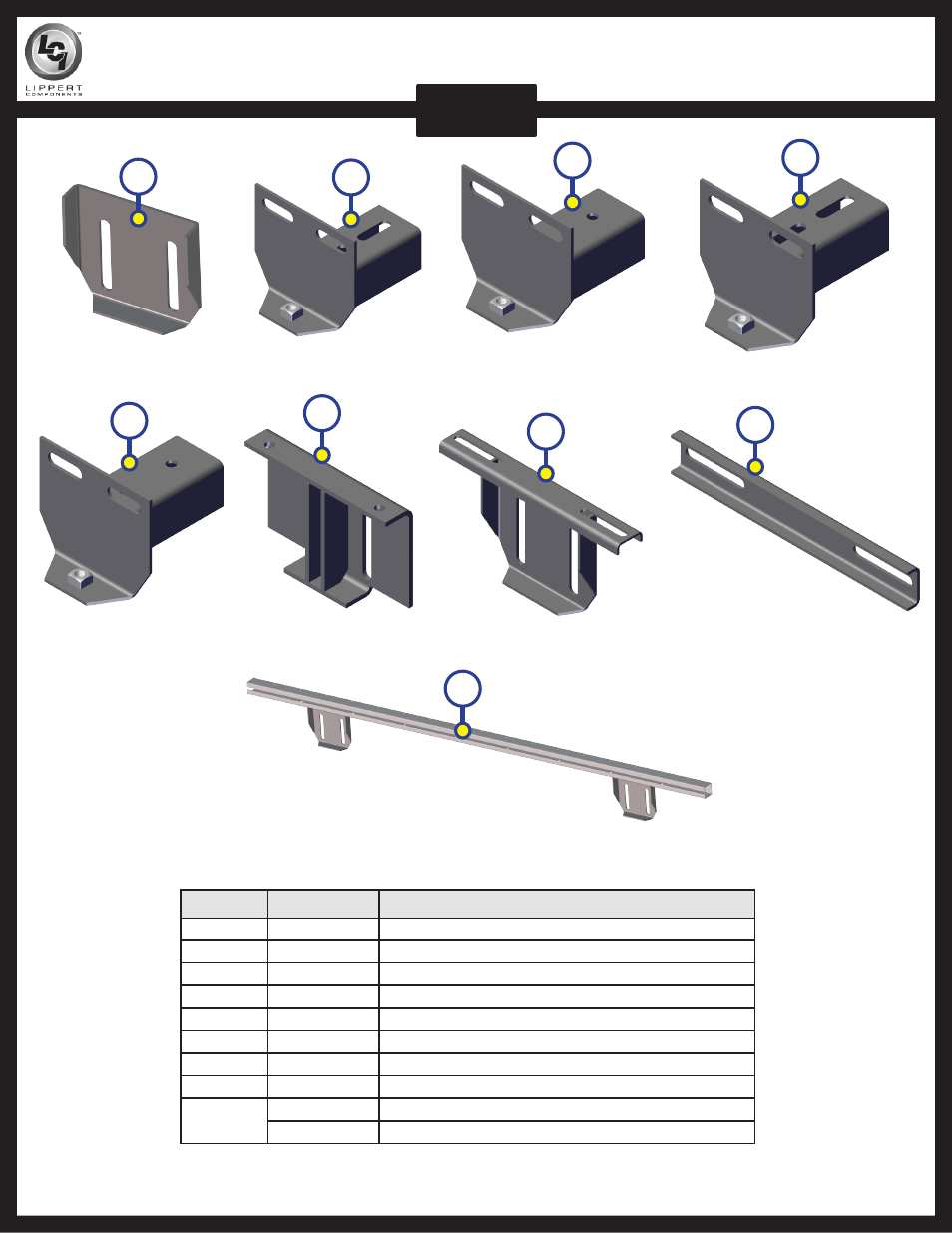

Callout Part # Description
A 104851 Slideout Mounting Bracket
B 119047 Flush Adjustable Head Assembly
C 119048 Flush Fixed Head Assembly
D 122854 Adjustable Head Assembly (1 3/4")
E 122855 Fixed Head Assembly (1 3/4")
F 166536 Flush Floor End Condition
G 226347 Room Bar Slide Head Assembly (12")
H 105966 Room Bar Bracket
I
183949 Room Bar (Use for up to 80")
183950 Room Bar (Use for 81" to 154")
A B
C D
E
F
G
H
I
2.5X2.5 HYDRAULIC THROUGH FRAME
HEAD ASSEMBLIES (STANDARD)
SLIDEOUTS
