Ultrasonic milk analyser
The reservoir with the cleaning solution have to be connected towards the
analyser and outgoing pipe towards reservoir for collecting the measured
samples and used cleaning solution, as is shown on the scheme:

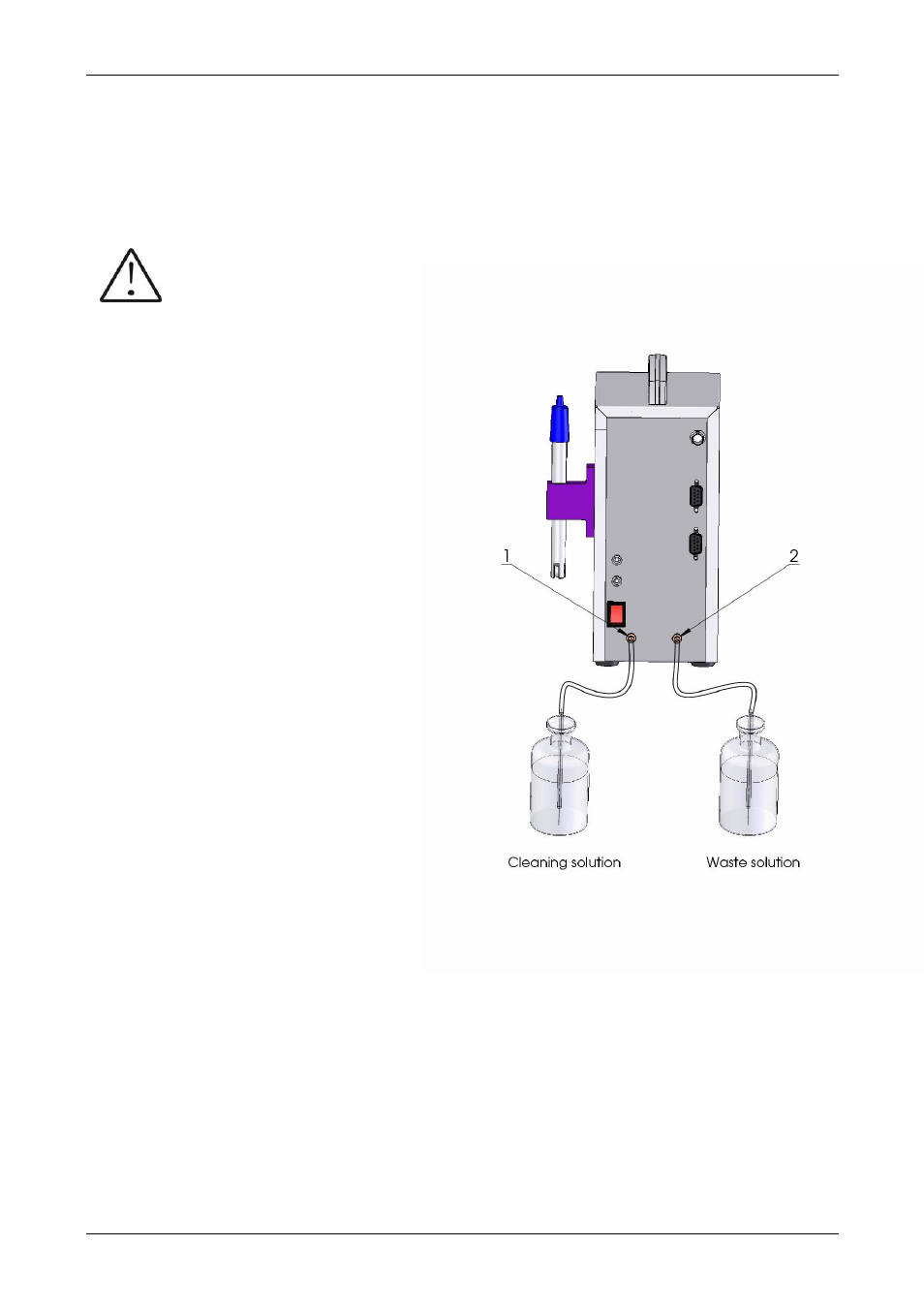

Fig.7 Connecting the reservoirs towards the milk analyzer
Description of the cleaning procedures:
There are two ways of cleaning the analyzer embedded in it – current and
end (final) cleaning.
4.1.1. Current cleaning.
4.1.1.1. Automatic start
Pay attention to the
pipes in both reservoirs. The
pipe in the reservoir with the
cleaning solution has to be
well dipped in the cleaning
solution while the pipe in the
reservoir with the already
used samples and cleaning
solution MUST NOT be
dipped in the liquid.
Pay attention to the level of
the cleaning solution in the
reservoir. Add solution when
the level is below 2/3!
1 - cleaning solution input
2 - used samples and used
cleaning solution output
