Installation
(cont.)
Flow Control Eductor Nozzle
Listed below is the recommended eductor nozzle to be used at various salt dosages.
Tank Injector Draw Rate DLFC (gpm) BLFC (gpm)
10 x 54 1 - white 0.38 2 0.25
12 x 52 1 - white 0.38 3.5 0.25
14 x 65 4 - green 0.78 5.0 0.50
16 x 65 4 - green 0.78 6 0.50
Table 2 - Flow Restrictors

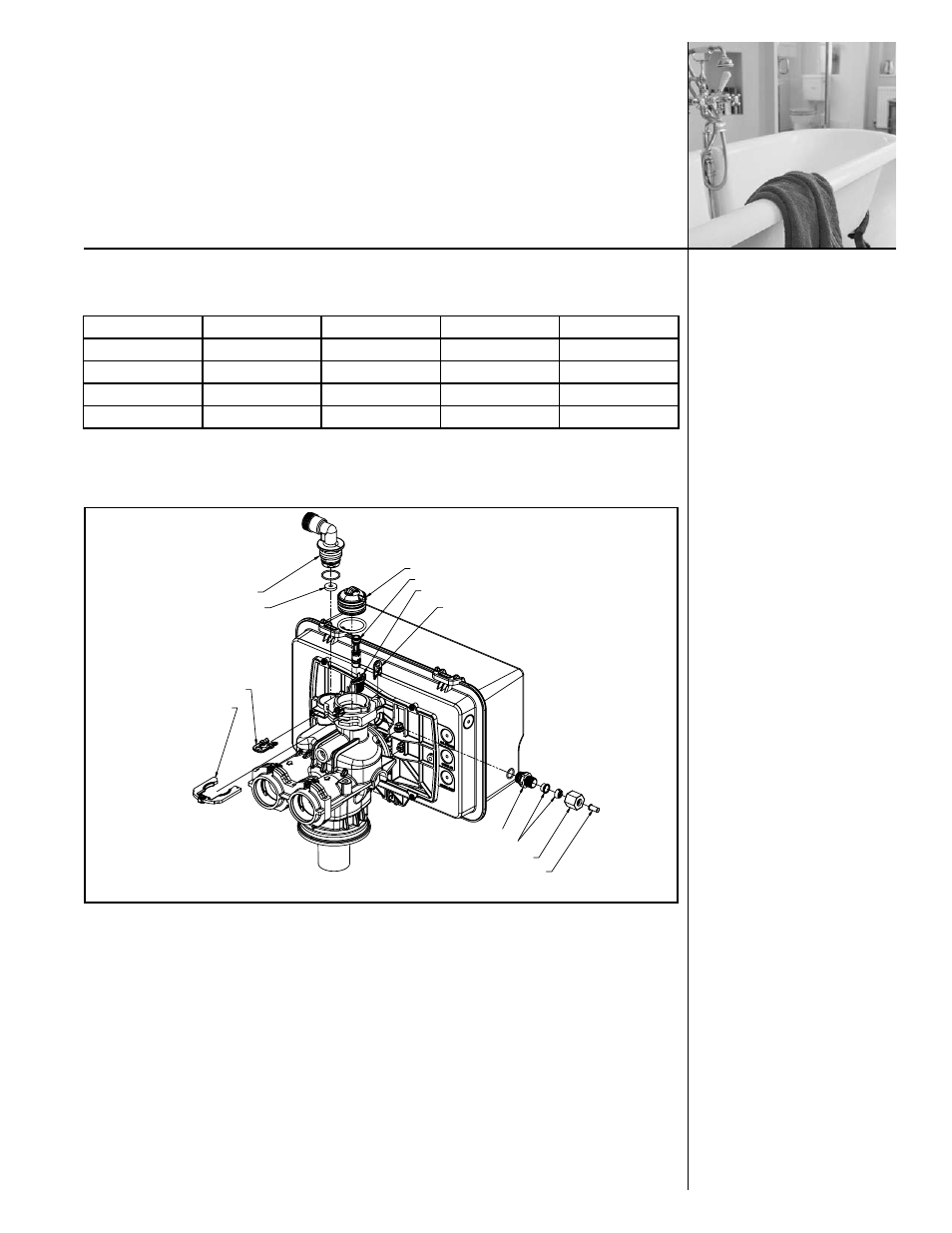

Refer to Figure 6 for a visual on changing the eductor nozzle and the backwash flow control.
Eductor Nozzle Replacement:
• Remove the injector clip on the eductor cap and remove the cap.
• Remove the injector assembly.
• Remove the injector screen from the assembly
• Remove the injector assembly that is shipped inside the control and replace it with the proper
assembly as per Table 2.
• Reverse the procedure to reassemble.
Brine Clip
Injector Clip
Drain Clip
Brine Fitting
Tube Ferrule
Brine Fitting Nut
Tube Insert
Drain Elbow
Flow Control
Injector Cover
Injector Assembly
Injector Screen
Figure 6
