Culligan Platinum Plus Series - Manual (Page 15)

11
Installation
(cont.)
Loading the Tank (12”, 14” and 16”
Tanks)
1. Position the tank so that the Culligan ® logo is in the front.
2. Remove the inlet strainer.
3. Install the outlet manifold into the tank (Figure 2).
4. Cover the top of the manifold with a clean rag.
5. Using a large-mouth funnel, load the Culligan underbedding
through the top of the tank.
6. Aqua-Sensor ® Installation (optional device)
A. Measure the sensor cable length as shown in Figure 2
and Table 1 (the Aqua-Sensor ® cord is set at the factory
for a 9” tank).
B. Loosen the small Aqua-Sensor ® Plug, a needle-nose pliers
works best (figure 3).
C. Moisten the cable sheath and slide the cable grip up or
down to the proper cable length.
D. Tighten the small Aqua-Sensor ® plug so that the fitting
cannot slide along the cable.
E. Insert the probe and cable through the Aqua-Sensor ®
port.
7. Load the tank with the Cullex ® ion exchange resin. Leveling is
not required. Remove the funnel.
8. Install the inlet strainer making sure to thread the strainer in
until it bottoms out on the thread. Failure to install the strainer
correctly can cause the control to leak.
Note: There must be no kinks or bends in the cable.
Caution! DO NOT allow the outlet manifold
to move when loading the media. The manifold
must remain vertical to ensure a good seal at
the gasket. Rap the tank near the bottom with a
rubber mallet to level the sand.

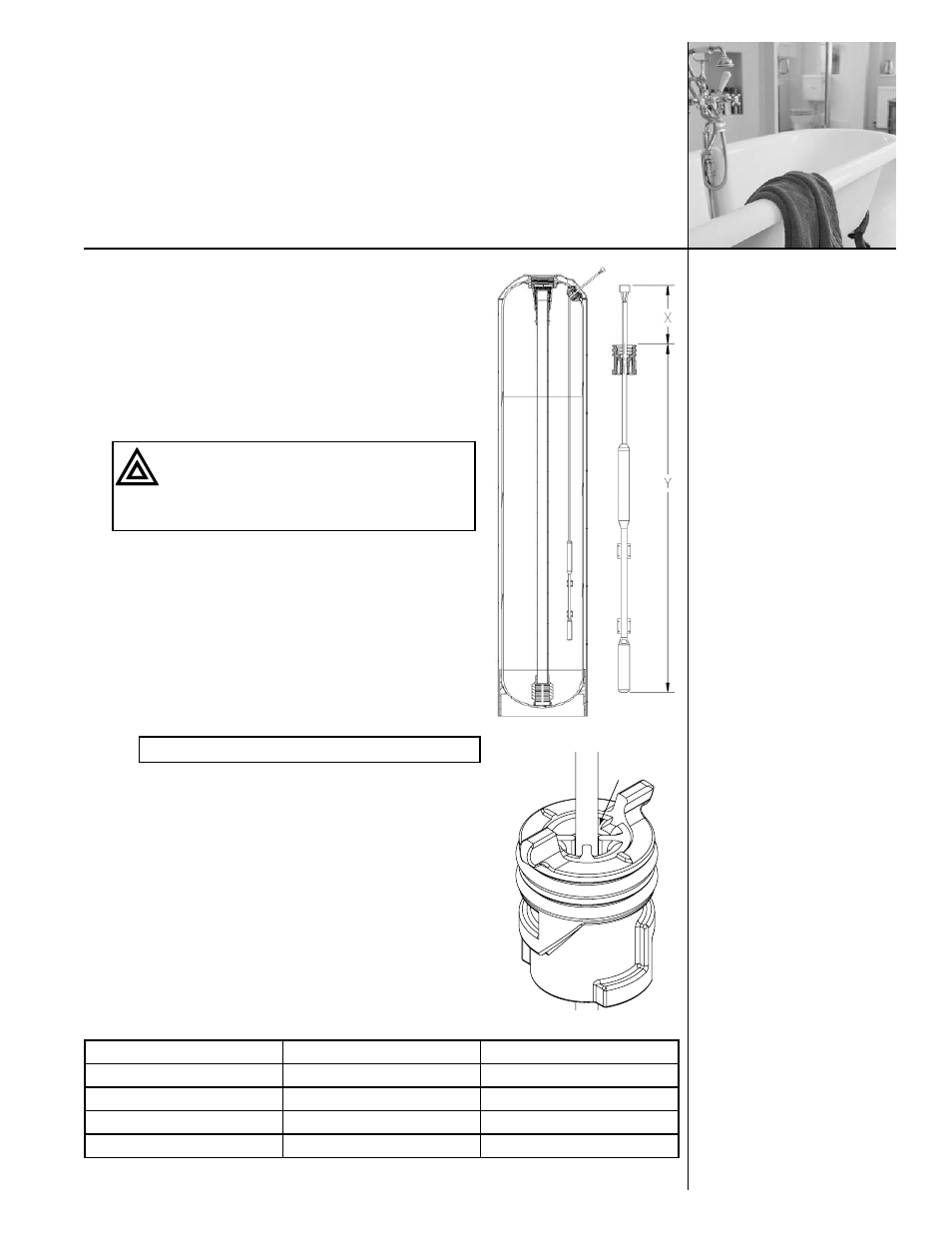

Figure 2
Dimension “X” is the exposed length the Aqua-Sensor ® cord (cord
length from the Aqua-Sensor ® plug to the circuit board connector).
You can then verify the Aqua-Sensor ® probe is inserted to the
proper depth by confirming dimension “X” is at the corrected
length.
Model X Y
10” Quadra-Hull ™ Tank 30 1/2” 44”
12” Quadra-Hull ™ Tank 32 1/2” 42”
14” Quadra-Hull ™ Tank 22 1/2” 52”
16” Quadra-Hull ™ Tank 22 1/2” 52”
Table 1
Small
Aqua-Sensor ®
Plug
Figure 3
