Hooking Up the TV/YCR (contad) 1
D.
Hooking Up Your
TV/VCR to Another
Video Source
(VCR or Camcorder)

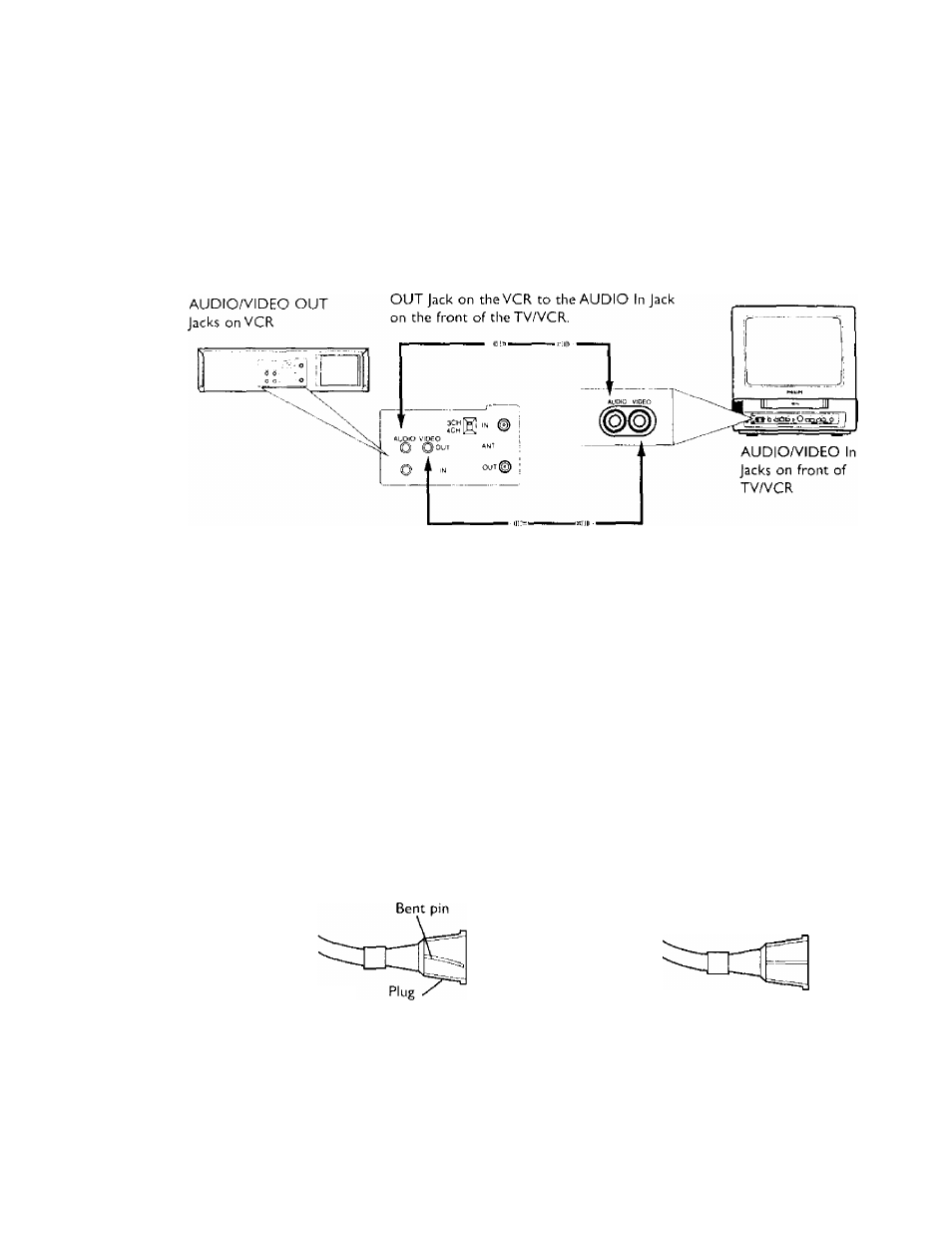

You may need this connection
if you want to copy tapes or
view tapes from a camcorder.
Deioi/s are on page 32.
Use an Audio cable to connect the AUDIO
C C B I 3 4
Use a Video cable to connect the VIDEO OUT Jack on the
VCR to the VIDEO in Jack on the front of the TV/VCR.
2
Plug in theTV/VCR's power cord.
3
Before you turn on the TV/VCR, go to page eight.
Helpful Hints
Before connecting an antenna or cable signal to the ANT(enna) Jack, make sure the pin is not bent. If the pin is
bent, straighten It as illustrated, then connect the antenna or cable signal to the ANTfenna) Jack.
A rod antenr^a (not supplied) is available from Philips Service Solutions Group.The part number is 483S 303
37006.To order, call 1-800-851-8885. (This antenna will fit the CCBI34 only.)
Audio and video cables are not supplied.
Crooked Pin
Straight Pin
Cable
