TruVision NVR 20 User Manual
11

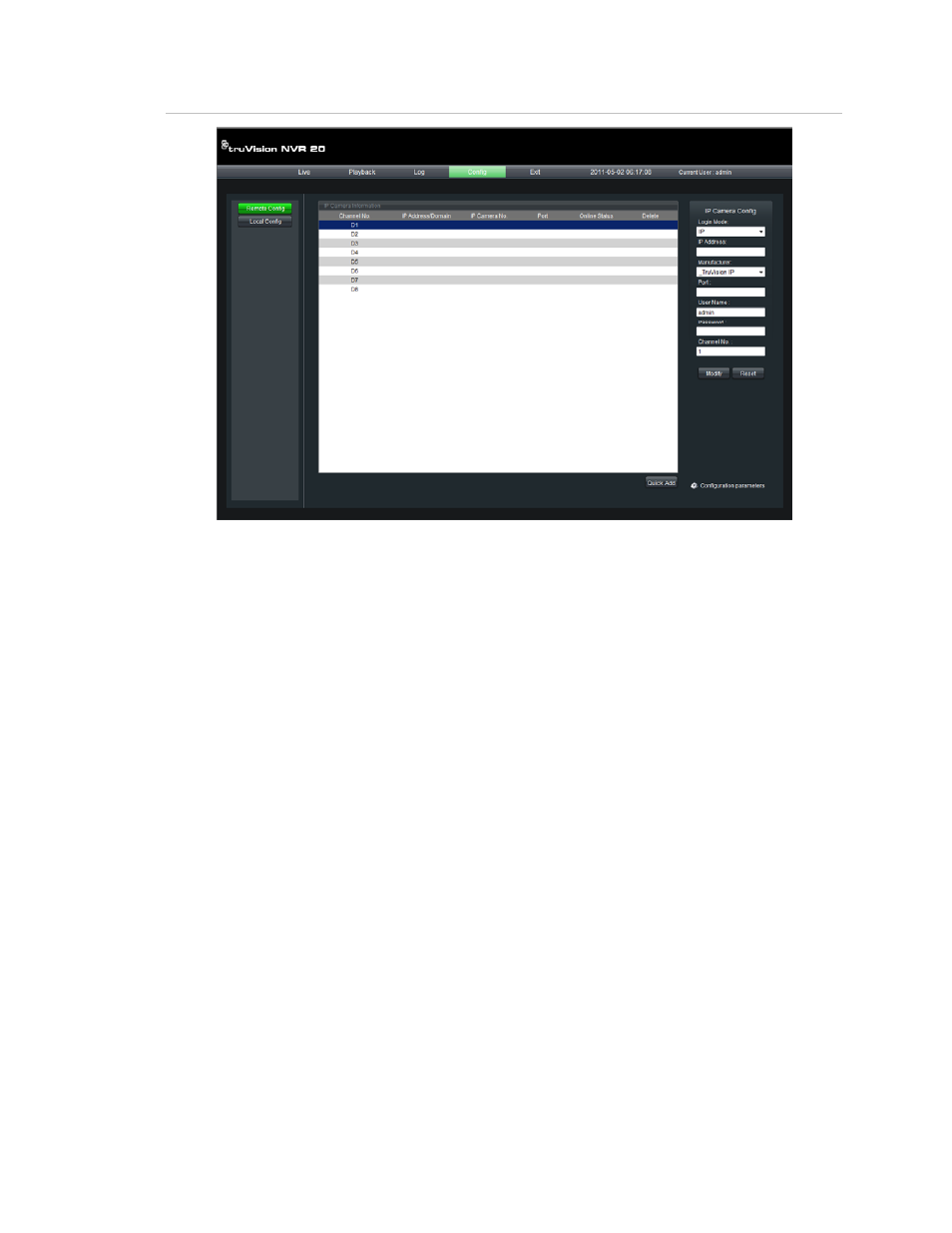

Figure 5: Initial Config tab window
The default view is the Remote Config view providing immediate access to
configure your IP cameras into the TVN 20.
This view shows the connected IP cameras connected to the unit. If this is the
first time, no cameras are populated.
Window features:
• Connected Camera summary detail
• D1-D16 are the available IP video channels which can be used with
supported IP cameras and supported encoders (depending on the model
ordered).
• The IP Addresses and port numbers of the connected cameras.
• Select the actual D1-D16 label to view additional detail on the camera in
the panel on the right. You can also click on this label to manually add an
IP Camera.
• Once cameras are added, by clicking in the main line of the camera, you
will launch the web page of the specific IP camera.
• The panel on the right is used to view the details of a selected camera from
the main list or for selecting an IP Camera channel in order to add manually a
specific camera.
• Quick
Add is a button that will automatically find and allow the user to add in
the desired IP cameras with default settings. This works for camera models
that support Auto-Discovery.
