GTCO Summagrid IV - Users Guide Part 1 User Manual
Page 8
Summagrid IV 8

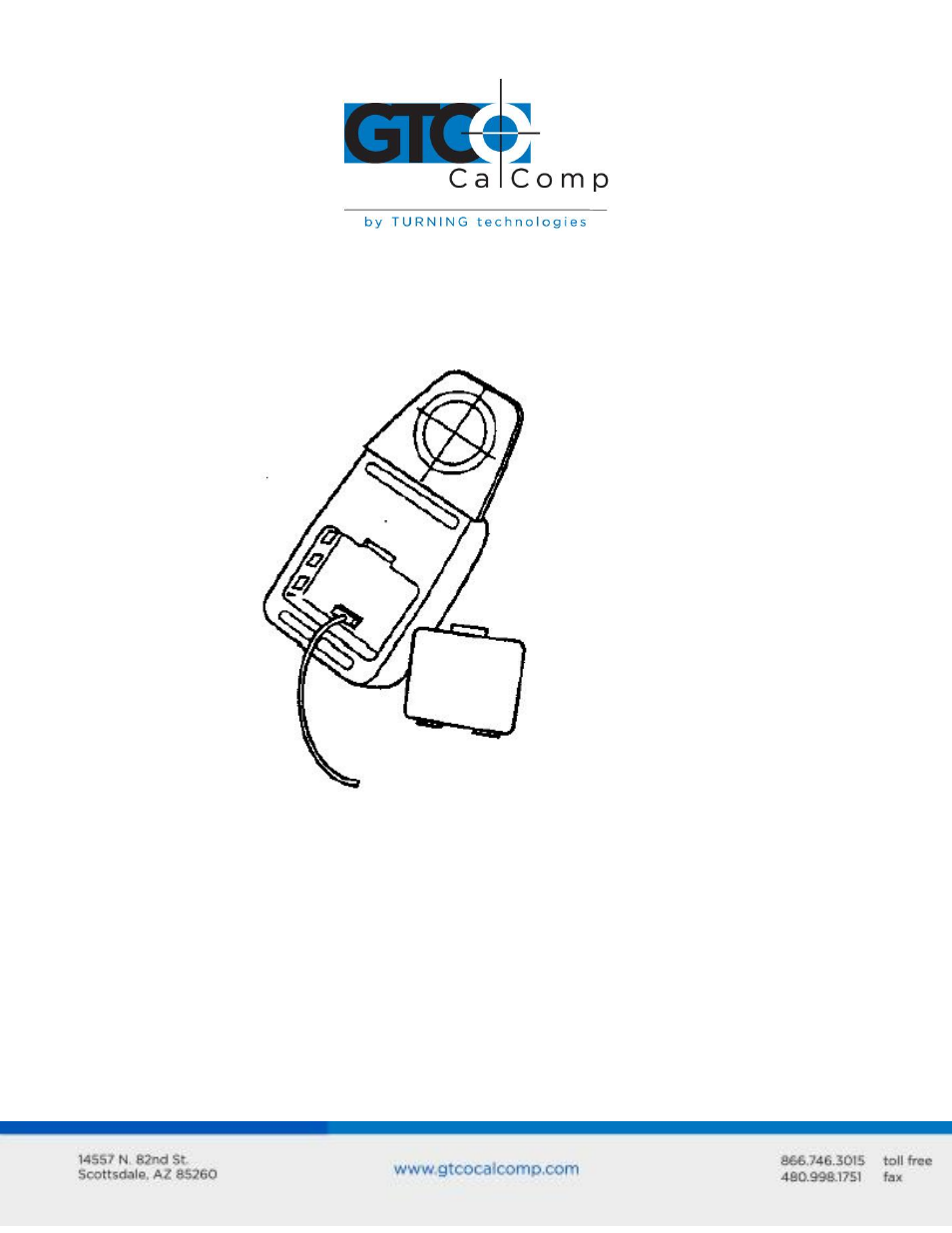

Preparing the cursor for corded use.
To prepare either the four or 16-button cursor for corded use:
1. Remove the battery door from the back of the cursor by using a small flathead
screwdriver. Remove the batteries if the cursor was previously used cordless.
2. Carefully plug the four-pin connector of the cursor cable into the socket located
in the battery compartment.
NOTE: Do not force the connector into the socket. The plug and socket are keyed and fit
together in one direction only. If one way does not work, try another.
3. Place the cursor cable within the groove at the bottom of the cursor.
4. Replace the battery door.
5. Plug the cursor cable into the stylus/cursor port on the Summagrid IV controller.
