6
propeller
Choose the propeller that is appropriate for the power system
you are using. If installing the Great Planes 63-62-250kV
RimFire out-runner motor, the propeller choice will depend
on the battery voltage being used. A 9-cell (33.3V) pack will
require a 20 x 10 prop (APCQ2200). A 12-cell (44.4V) pack
will require an 18 x 8 prop (APCQ3010). If installing an O.S.
1.60 FX glow engine, we recommend using a 18 x 6W prop
(APCQ1806). If installing the Fuji-Imvac BT-43 EI-2 engine,
we recommend using a 20 x 8 prop (APCQ2080).
ADDITIONAL ITEMS REqUIRED
Adhesives and Building Supplies
This is the list of Adhesives and Building Supplies that are
required to finish the Edge 540 1.60 ARF.
o Pro 30-minute epoxy (GPMR6047)
o 1/2 oz. [15g] Thin Pro ™ CA (GPMR6001)
o 1/2 oz. [15g] Medium Pro CA+ (GPMR6007)
o Hobbico 60 watt soldering iron (HCAR0776) or Hobby
Heat ™ Micro Torch II (HCAR0755)
o Silver solder w/flux (STAR2000)
o Petroleum jelly (Vaseline)
o 3' [900mm] standard silicone fuel tubing (GPMQ4131)
(glow engine only)
o R/C foam rubber (1/4" [6mm] - HCAQ1000)
o Drill bits: 1/16" [1.6mm], 3/32" [2.4mm], 7/64" [2.8mm],
1/8" [3.2mm], 9/64" [3.6mm], 5/32" [4mm], 3/16" [4.8mm],
7/32" [5.6mm], 3/16" [4.8mm], 1/4" [6.4mm]
o Denatured alcohol (for epoxy clean up)
o 8-32 tap and drill set (GPMR8103), glow engine only
o Tap handle (GPMR8120), glow engine only
o #1 Hobby knife (HCAR0105)
o #11 blades (5-pack, HCAR0211)
o Masking tape (TOPR8018)
o T-pins (HCAR5150)
o Great Planes Pro Threadlocker (GPMR6060)
o Dead Center ™ Engine Mount Hole Locator (GPMR8130),
glow engine only
o Panel Line Pen (TOPQ2510)
o 1" [25mm] double-sided foam tape (GPMQ4442)
o 220-grit Sandpaper (GPMR6185)
o 21st Century ® sealing iron (COVR2700)
o 21st Century iron cover (COVR2702)
o 21st Century trim seal iron (COVR2750)
Optional Supplies and Tools
Here is a list of optional supplies and tools that will help you
build the Edge 540 1.60 ARF.
o Great Planes 1/4 Sport Pilot Yellow (GPMQ9012)
o Fuel filler valve for glow fuel (GPMQ4160)
o Fuel filler valve for gasoline (GPMQ4161)
o 1/2 oz. [15g] Thick Pro CA- (GPMR6013)
o Stick-on segmented lead weights (GPMQ4485)
o Epoxy brushes (6, GPMR8060)
o Mixing sticks (50, GPMR8055)
o Mixing cups (GPMR8056)
o Builder’s Triangle Set (HCAR0480)
o 36" metal ruler (HCAR0475)
o Pliers with wire cutter (HCAR0630)
o T.A. Emerald Performance Duster can of compressed air
(TAEC1060)
o Rotary tool such as Dremel
o Rotary tool reinforced cut-off wheel (GPMR8200)
o Servo horn drill (HCAR0698)
o CG Machine ™ (GPMR2400)
o #64 Rubber bands (1/4 lb [113g] box, HCAQ2020)
IMpORTANT BUILDINg NOTES

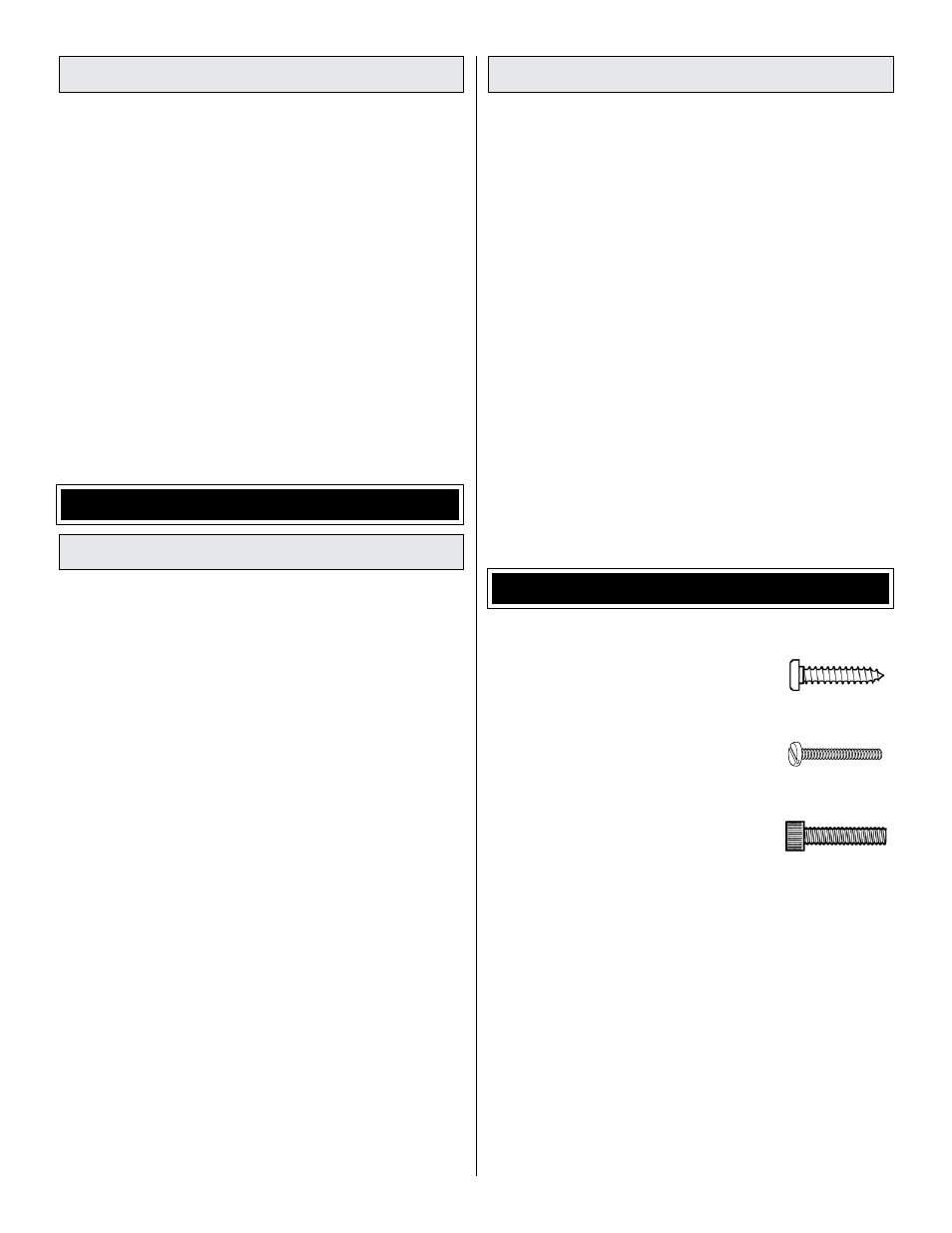

• There are two types of screws used in this kit:
Self-tapping screws are designated
by a number and a length. For example,
#6 x 3/4" [19mm].
Machine screws are designated by a
number, threads per inch, and a length.
For example, 4-40 x 3/4" [19mm].
Socket Head Cap Screws (SHCS) are
designated by a number, threads per
inch, and a length. For example, 4-40 x
3/4" [19mm]
• When you see the term test fit in the instructions, it means
that you should first position the part on the assembly
without using any glue, then slightly modify or custom fit
the part as necessary for the best fit.
• Whenever the term glue is written you should rely upon
your experience to decide what type of glue to use. When
a specific type of adhesive works best for that step, the
instructions will make a recommendation.
• Whenever just epoxy is specified you may use either
30-minute (or 45-minute) epoxy or 6-minute epoxy. When
30-minute epoxy is specified it is highly recommended that
you use only 30-minute (or 45-minute) epoxy, because you
will need the working time and/or the additional strength.
