Great Planes Edge 540 1.60-43cc Performance Series ARF - GPMA1414 - Manual (Page 25)

25

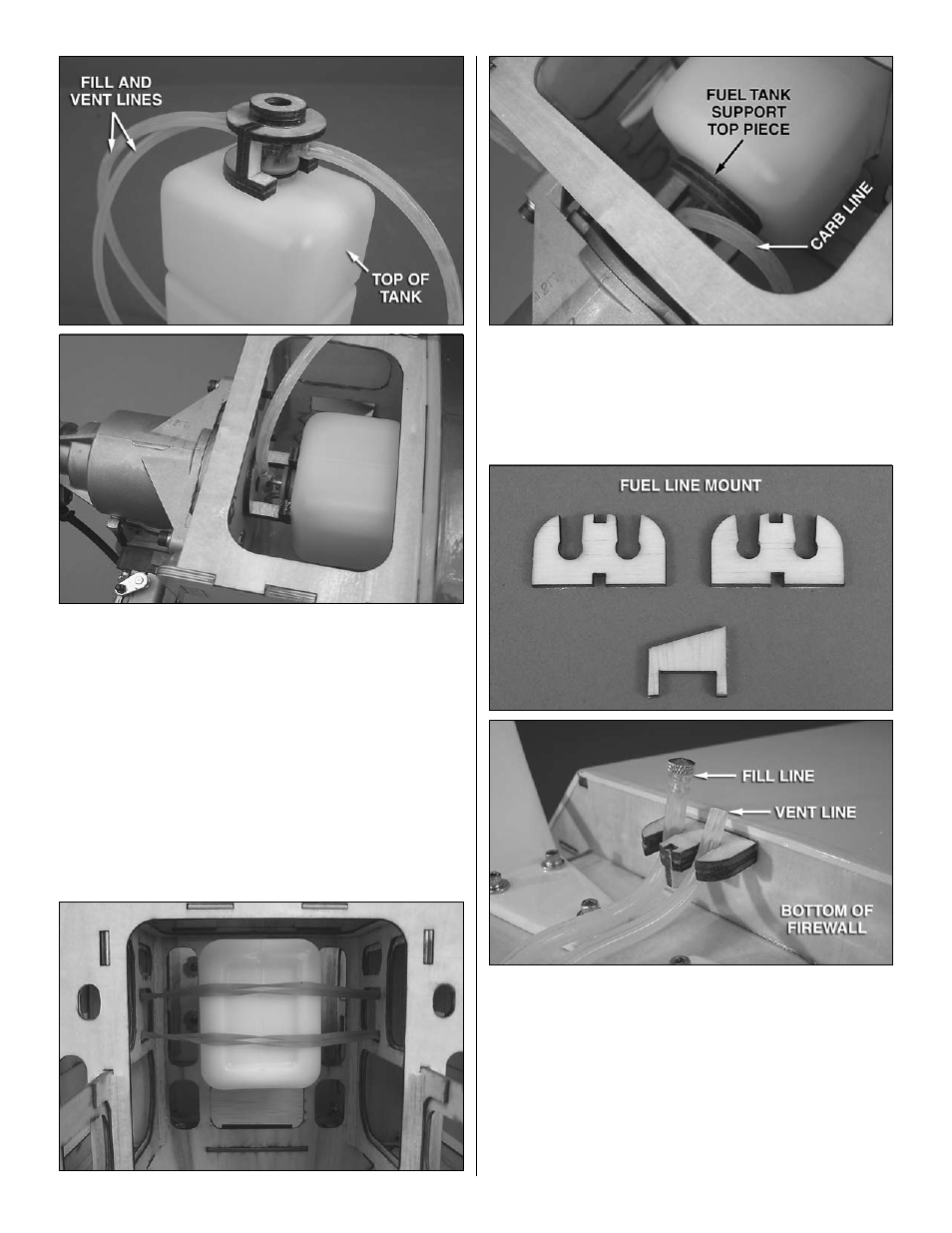

o 8. Feed the fill and vent lines through the gas fuel tank
support bottom piece and fit it around the fuel tank neck as
shown. Insert the fill and vent lines through the holes you
drilled in the bottom of the motor mount box and slide the
tank through the second former in the fuselage. Fit the gas
fuel tank support bottom piece into the hole in the firewall.
o 9. Secure the fuel tank inside the fuse by hooking two of
the included rubber bands around the rubber band tabs as
shown. Route the carb line through the hole you drilled in
the firewall, cut it to the correct length and connect it to the
carburetor. Glue the gas fuel tank support top piece to the
bottom piece, which will capture the fuel tank neck in place.
o 10. Locate the three pieces that make the optional fuel
line mount. This part is used to hold the fill and vent lines
at the bottom of the firewall (if an Easy Fueler valve is being
used or some similar system, this part can be omitted). Glue
the pieces together as shown. Use epoxy to fuel proof the
part. Sand the bottom center of the firewall where the part
will be glued with 220 grit sandpaper. Glue the piece in place
and clip the fill and vent lines into the slots in the fuel line
mount. These lines can now be cut to length. A fuel line plug
is provided for the fill line (be sure that you insert the fuel line
plug into the fill line).
