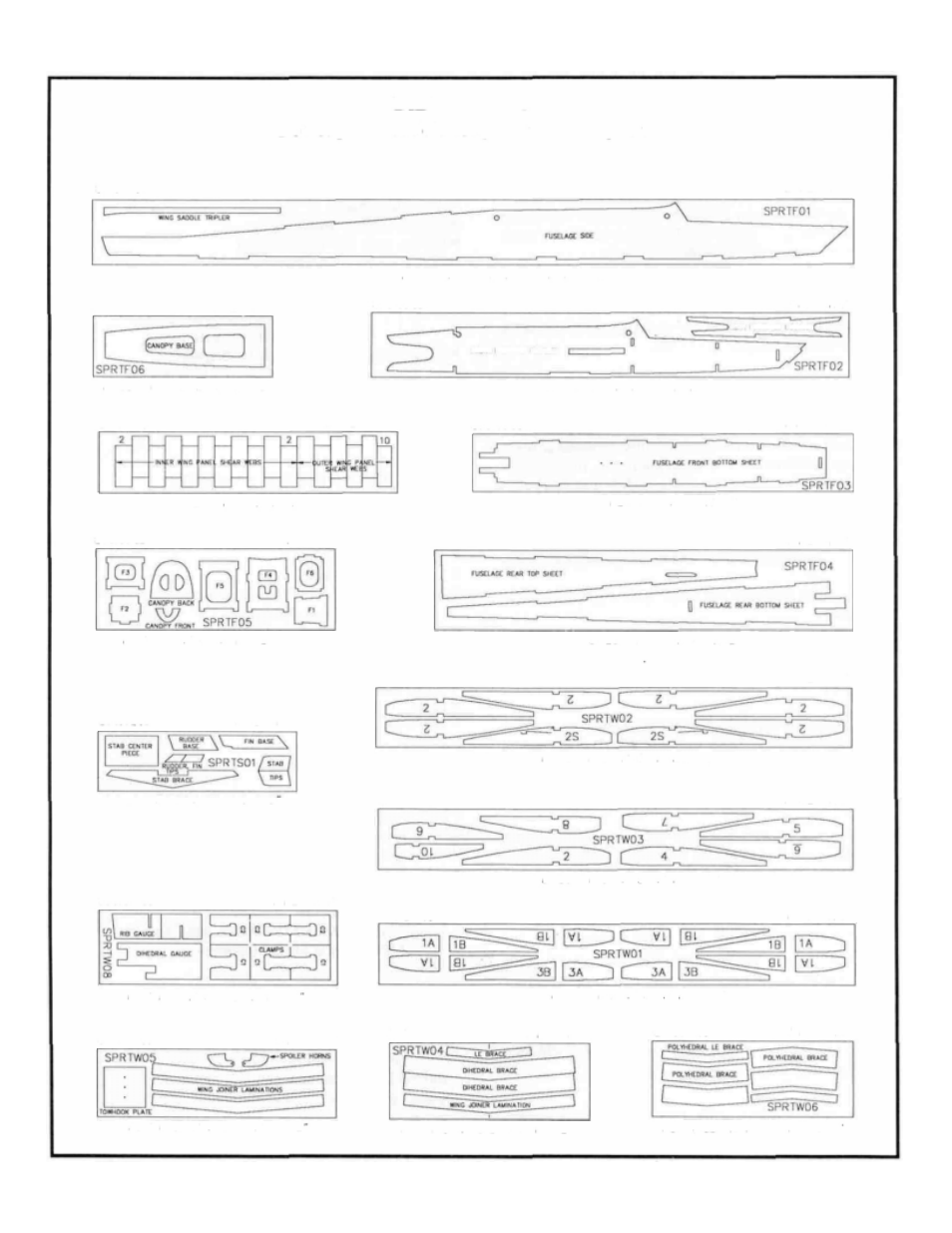

DIE PATTERNS

Do not punch out die-cut parts until ready to use!

SPRTFO1

2 PER KIT

SPRTF06

1 PER KIT

BALSA 3/32" X 3-1/4" X 38-1/2"

SPRTF02

2 PER KIT

REAR FUSELAGE DOUBLER

FRONT FUSELAGE DOUBLER

BALSA 1/8" X 3" X 9-7/8"

SPRTW07

BALSA 3/32" X 3-1/4" X 24"

2 PER KIT

SPRTF03

I PER KIT

BALSA 1/16" X 3" X 15"

SPRTF05

1 PER KIT

PLY 1/8" X 4" X 11-7/8"

SPRTS01

1 PER KIT

BALSA 3/16" x 3" x 9-7/8

SPRTW08

I PER K I T

PLY 1/8" X 3-7/8" X 11-7/8

SPRTW05

1 PER KIT

PLY 1/16" X 3-3/8" X 11-7/8

PLY 1/8" X 3" X 19"

SPRTF04

I PER KIT

BALSA 3/32" X 4" X 21"

SPRTW02

2 PER KIT

BALSA 1/16" X 3" X 23-7/8"

SPRTW03

2 PER KIT

BALSA 1/16" X 3" X 23-7/8"

SPRTW01

I PER KIT

SPRTW04

1 PER KIT

BALSA 1/8" X 3" X 23-7/8"

SPRTW06 I

PER

KIT

PLY 1/8" X 3-3/4 X 10-1/2"

PLY 1/32" X 3-1/4" X 9-3/4'

4
