Cabletron Systems 6000 User Manual
Page 175
Installing Optional Fast Ethernet Interface Modules
6E128-26, 6E138-25, 6E129-26 and 6E139-25 User’s Guide
C-7

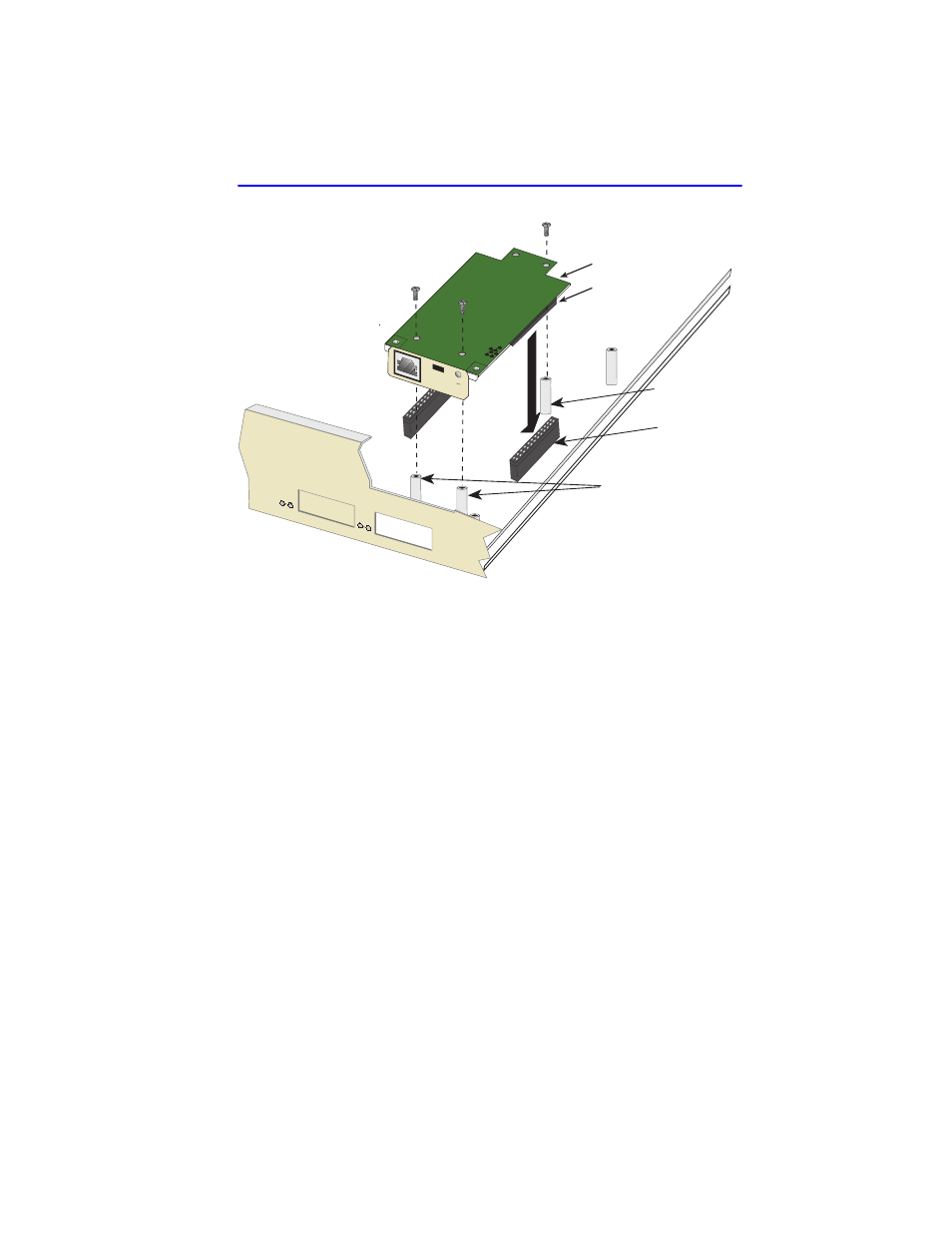

Figure C-4
Installing the Fast Ethernet Interface Module
5.
Press down firmly on the Fast Ethernet Interface Module until the pins
slide all the way into the motherboard connector. Ensure that the Fast
Ethernet Interface Module seats flush on the standoffs.
6.
Secure the Fast Ethernet Interface Module with the screws saved in
steps 1 and 2.
7.
Installation is complete.
FE-100TX
10
100
Front
Standoffs
Rear
Standoff
Module
Motherboard
Connector
Module
Connector
25
26
