*Unit weights are based on dry coils and minimum rows. Weights exclude packaging, valves, and other
components.
NOTES:
1. Right hand unit shown; left hand unit opposite. Coil connection locations are ±
5
/
8
inches.
2. Sizes 06, 08 and 10 have one motor, one blower. Sizes 12 through 20 have 2 motors, 2 blowers.
3. Filter and filter rack are standard.
4. Standard 4-row coil shown. Other coil option dimensional data available on request.
5. For optional coil connections, view 42DA-203-1 using the Fan Coil Builder.
6. Fan switch, wall plate not shown.
7. Galvanized finish provided as standard.
8. Dimensions are in inches (mm).
UNIT
SIZE
NOM
AIRFLOW
(cfm)
DIMENSIONS (in. ±
1
/
8
)
QTY/UNIT
UNIT
WEIGHT*
(lb)
A
A’
B
D’
E
F
G
H
Blower
Motor
06
600
23
32
14
13
1
/
2
17
21
25
1
/
4
18
1
/
2
1
1
94
08
800
28
37
19
13
1
/
2
22
26
30
1
/
4
23
1
/
2
1
1
107
10
1000
32
42
23
14
1
/
2
26
30
34
1
/
4
27
1
/
2
1
1
150
12
1200
37
47
28
14
1
/
2
31
35
39
1
/
4
32
1
/
2
2
2
169
14
1400
42
52
33
14
1
/
2
36
40
44
1
/
4
37
1
/
2
2
2
174
16
1600
47
56
38
13
1
/
2
41
45
49
1
/
4
42
1
/
2
2
2
178
18
1800
52
62
43
14
1
/
2
46
50
54
1
/
4
47
1
/
2
2
2
195
20
2000
56
66
47
14
1
/
2
50
54
58
1
/
4
51
1
/
2
2
2
220
LEGEND
1 — Motor Junction Box Opposite Piping
2 — Insulated Return Air Plenum
3 — Mounting Clips (Shipped Loose)
4 — Electrical Strip Heater Element (optional)
5 — Auxiliary Drip Lip (Shipped Loose) with
3
/
8
-in.
Hole
6 — Tell-Tale Drain (optional)
7 — Drain Connection,
7
/
8
-in. OD
8 — Filter Retainer Angle
9 — Access Panel
10 — Return Duct Collar, 2
1
/
2
inches
11 — Air Vent,
1
/
8
-in. MPT
12 — Return Connection
13 — Filter, 1-in.
14 — Supply Duct Collar, 1 inch
15 — Supply Connection
16 — Mounting Holes (four,
3
/
4
-in. diameter) with
Rubber Grommet
A42-4121

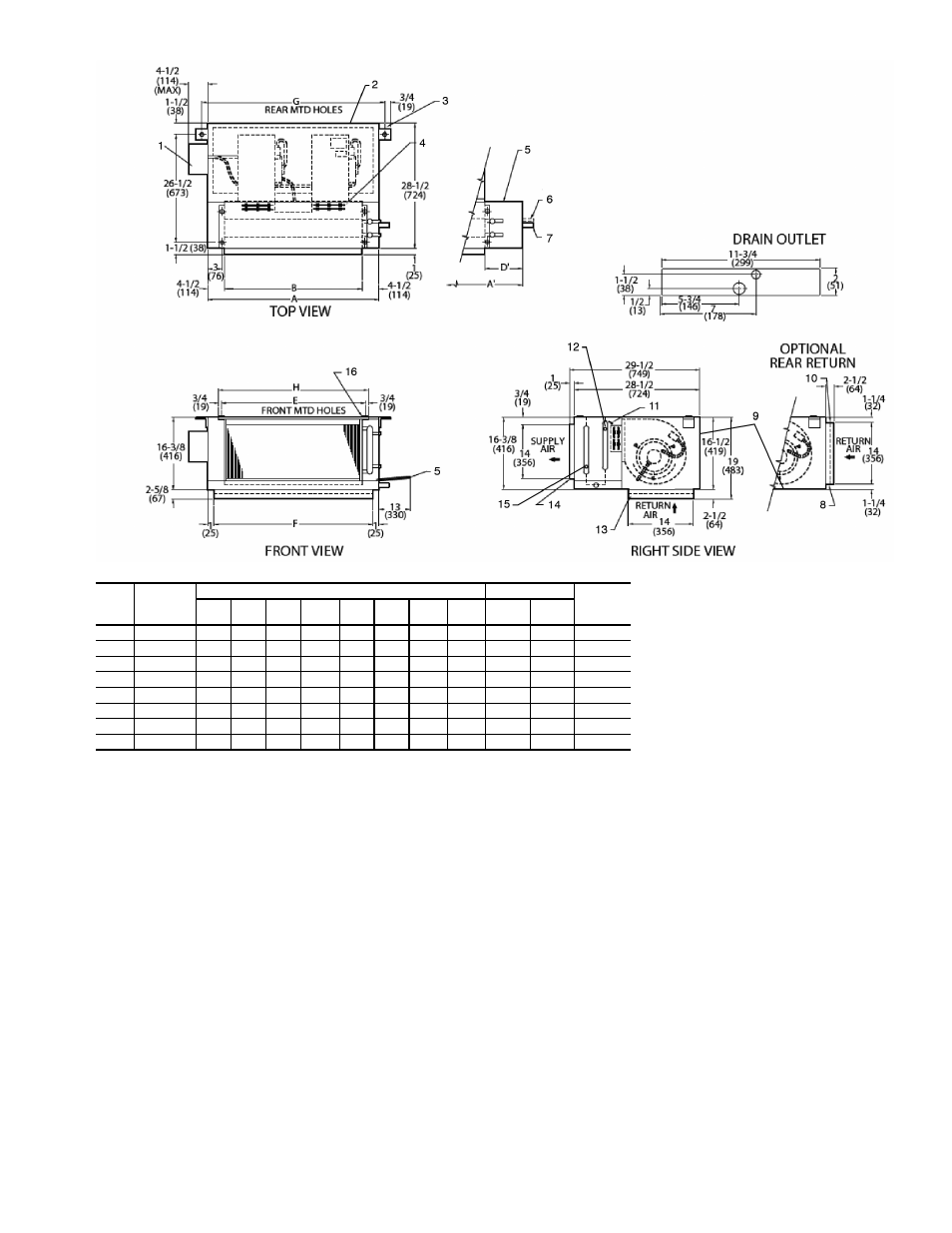

Fig. 24 — 42DC Furred-In Ceiling Unit with Plenum and Electric Heat Dimensions
