LEGEND
1 — Standard Stamped Supply Grille
2 — Access Door, Fan Switch
3 — Supply Conn,
5
/
8
-in. OD
4 — Return Conn,
5
/
8
-in. OD
5 — Drain,
3
/
4
-in. MPT
6 — Filter
7 — Air Vent,
1
/
8
-in. MPT
8 — Front Panel Fastener
9 — Optional Valve Package (inside cabinet)
10 — Drain Pan, Auxiliary, Shipped Loose
11 — Wall Mounting Holes
3
/
4
-in. Diameter
12 — Flexible Conduit
13 — Fan Switch, 3 speed
14 — Access Doors
NOTES:
1. Right hand unit shown; left hand unit opposite. Coil connection
locations are ±
5
/
8
-in.
2. Unit sizes 02 and 03 have one motor, one blower; sizes 04
through 08 have one motor, 2 blowers; sizes 10 and 12 have
2 motors, 4 blowers.
3. Standard 3-row coil shown.
4. Cabinet has an Arctic White baked finish.
5. Not shown:
1
/
2
-in. fiberglass insulation on inside of casing,
closed cell foam on main drain pan.
6. For optional coil connections, view 42VA-203-1 using the Fan
Coil Builder.
7. Valve package is factory-installed inside the cabinet when
ordered with the unit (based on component size).
8. Dimensions shown in inches (mm).
*Unit weights are based on dry coils and minimum rows. Weights exclude packaging, valves, and other components.
UNIT
SIZE
NOM
AIRFLOW
(Cfm)
DIMENSIONS (in.)
QTY/UNIT
FACE
AREA
(sq ft)
UNIT
WEIGHT*
(lb)
A
B
C
D
E
Blower
Motor
02
200
41
22
23
1
/
2
17
1
/
4
3
5
/
8
1
1
0.83
92
03
300
45
26
27
1
/
2
21
1
/
2
3
1
/
2
1
1
1.08
98
04
400
51
32
33
1
/
2
26
4
1
/
4
2
1
1.35
122
06
600
61
42
43
1
/
2
39
2
3
/
4
2
1
1.88
141
08
800
63
44
45
1
/
2
39
3
3
/
4
2
1
2.31
144
10
1000
77
58
59
1
/
2
52
1
/
8
4
1
/
4
4
2
3.16
178
12
1200
85
66
67
1
/
2
61
3
3
/
4
4
2
3.65
205
A42-4111

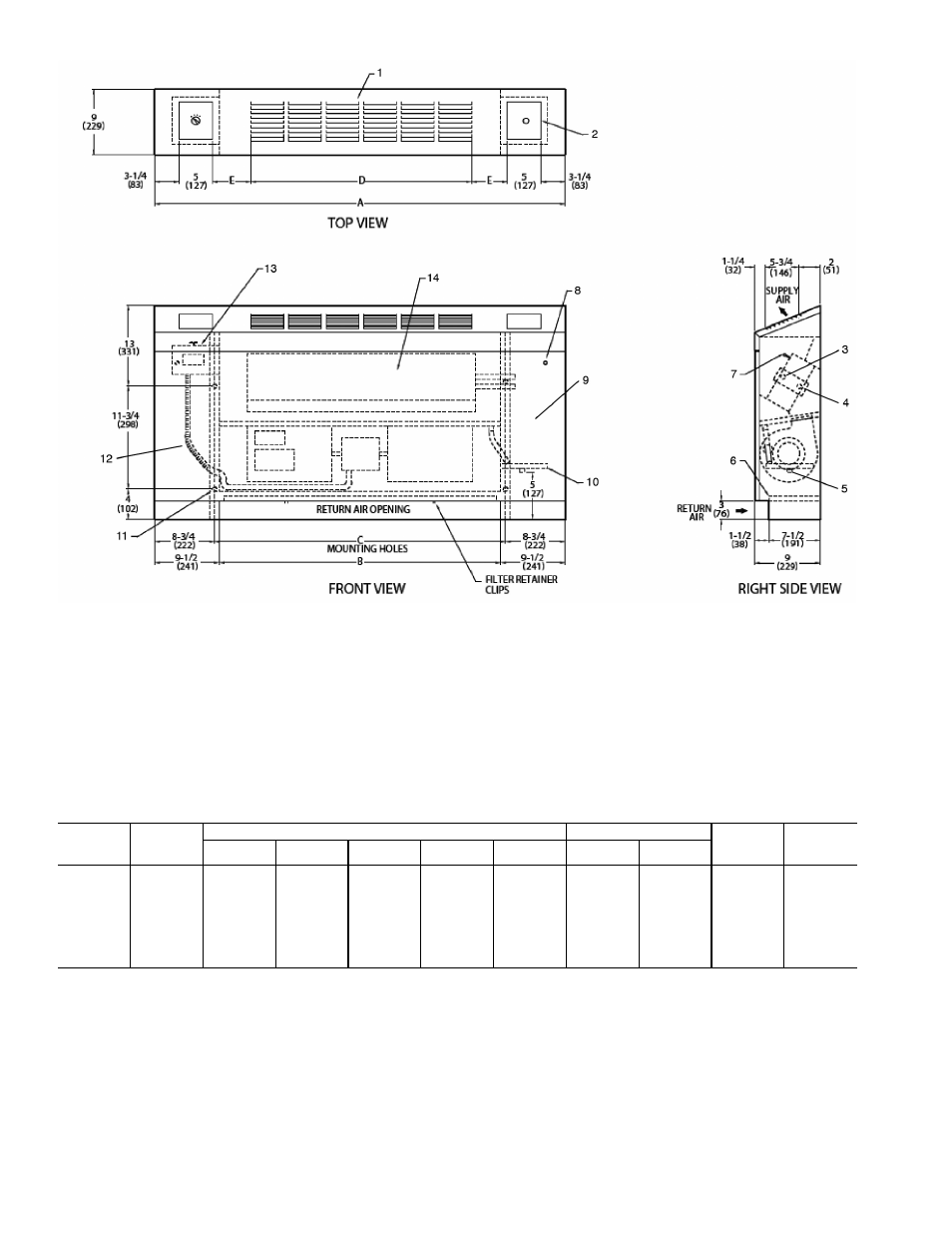

Fig. 17 — 42VF Vertical Cabinet Unit with Slant Top Dimensions
