LEGEND
1 — Supply Conn,
5
/
8
-in. OD
2 — Air Vent,
1
/
8
-in. MPT
3 — Filter
4 — Return Air Grille, Stamped
5 — Stamped Supply Grille
6 — Return Conn,
5
/
8
-in. OD
7 — Removable Front Panel
8 — Drain Conn,
7
/
8
-in. OD
9 — Auxiliary Drain Pan
10 — Valve Compartment
11 — Junction Box
NOTES:
1. Right hand unit shown; left hand unit opposite. Coil connection
locations are ±
5
/
8
-in.
2. Front panel has an Arctic White baked finish.
3. Standard 2-row coil shown.
4. Unit size 01 has one motor, one blower; size 03 has 2 motors,
2 blowers.
5. Unit has
1
/
2
-in. flanges for mounting to wall surface.
6. Front panel hooks at top of unit, swing down and snap in at bottom
against a spring clip.
7. Not shown: 3-speed fan switch, wall plate,
1
/
2
-in. fiberglass insula-
tion on inside of casing, closed cell foam on main drain pan.
8. Dimensions shown in inches (mm).
*Unit weights are based on dry coils and minimum rows. Weights exclude packaging, valves, and other components.
UNIT SIZE
NOM
AIRFLOW
(Cfm)
DIMENSIONS (in.)
QTY/UNIT
UNIT
WEIGHT*
(lb)
A
B
C
D
E
Blower
Motor
01
150
25
3
/
4
15
3
/
4
14
1
1
/
2
12
3
/
4
1
1
40
03
300
39
3
/
4
29
3
/
4
28
1
15
/
16
25
7
/
8
2
2
74
A42-4116

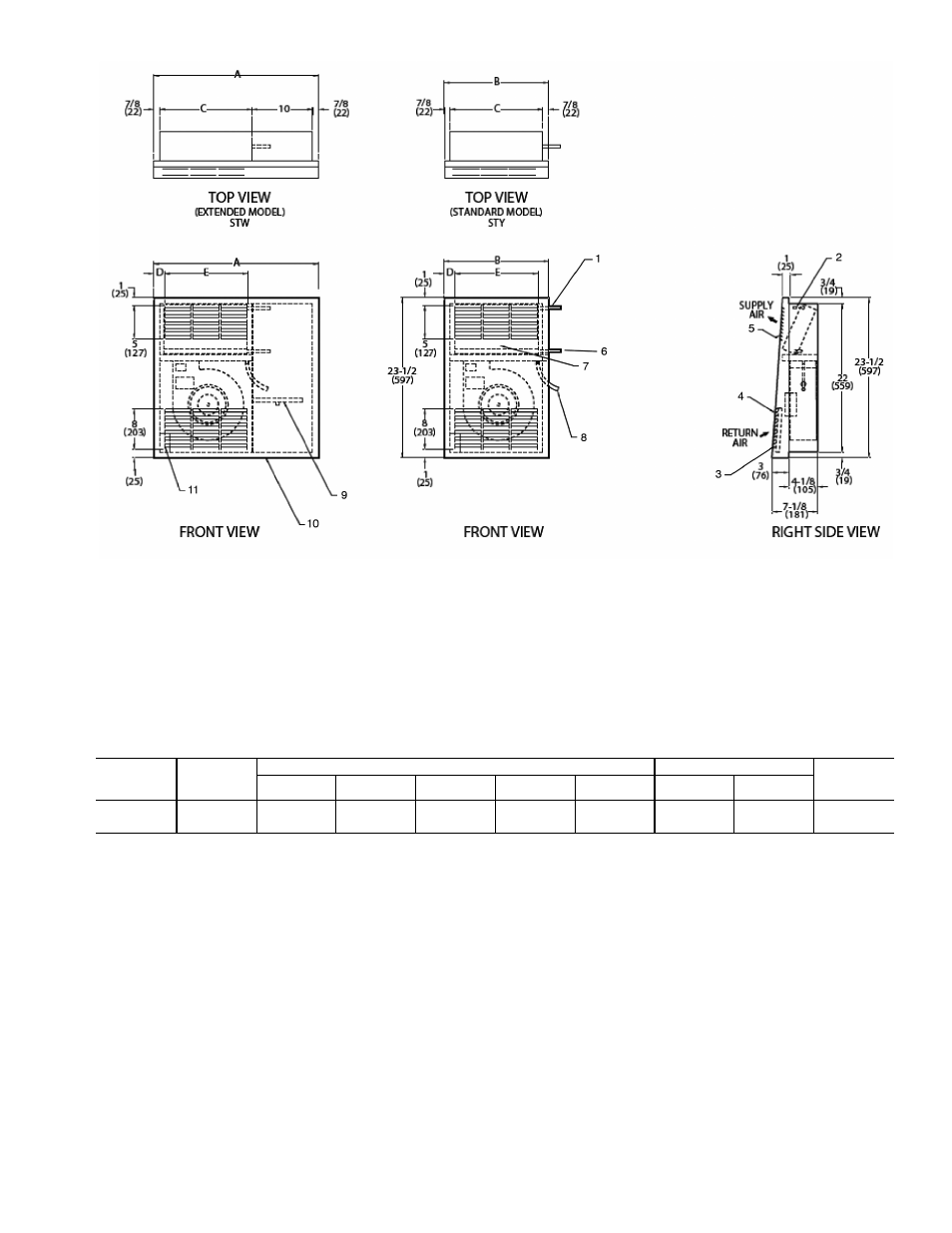

Fig. 22 — 42VG Furred-In Wall Unit Dimensions
