8. REFERENCE

8-1. ANTENNA

8-1 -1. Fixed station

Various types of fixed station antennas are commercially
available. Select your antenna according to available
space and intended application.
Transceiver performance depends largely on the type of

antenna used. For fixed station operation there are

ground plane antennas (omnidirectional) and Yagi anten­
nas (unidirectional). The Yagi antenna is suitable for DX
(Long distance) operation or communication with a spe­
cific party.

Yagi antennas

8-1-2. Mobile

Various types of antennas for VHF mobile operation are
available.

Note:

For gutter-mount installation, the antenna bracket must
be grounded to the car body as shown below. Attach the

antenna securely, referring to the antenna installation in­
structions provided with the antenna.

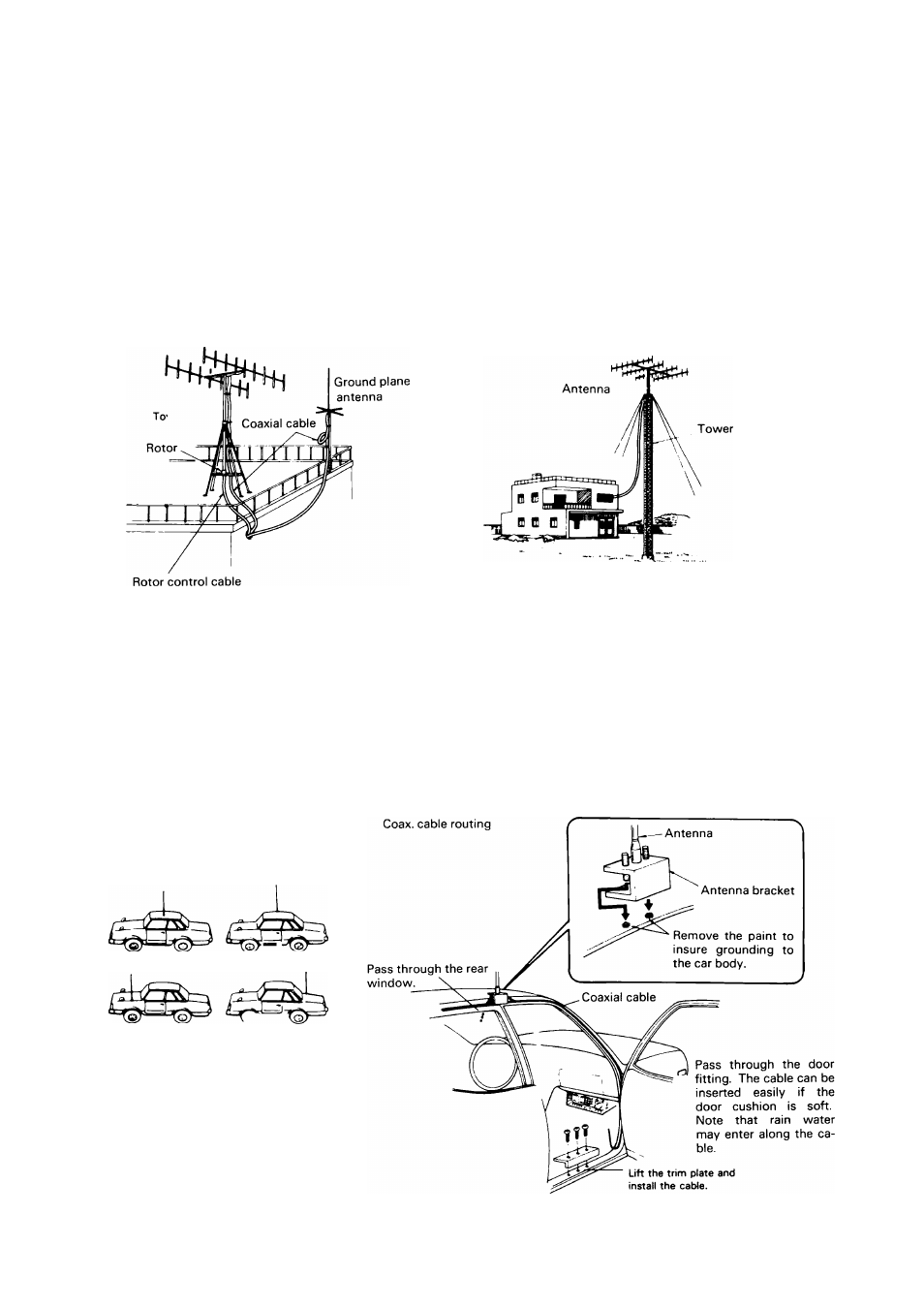

Roof top system

@7' ^

Roof side system

Front fender

@7----

Trunk lid system

Installation for mobile operation.
