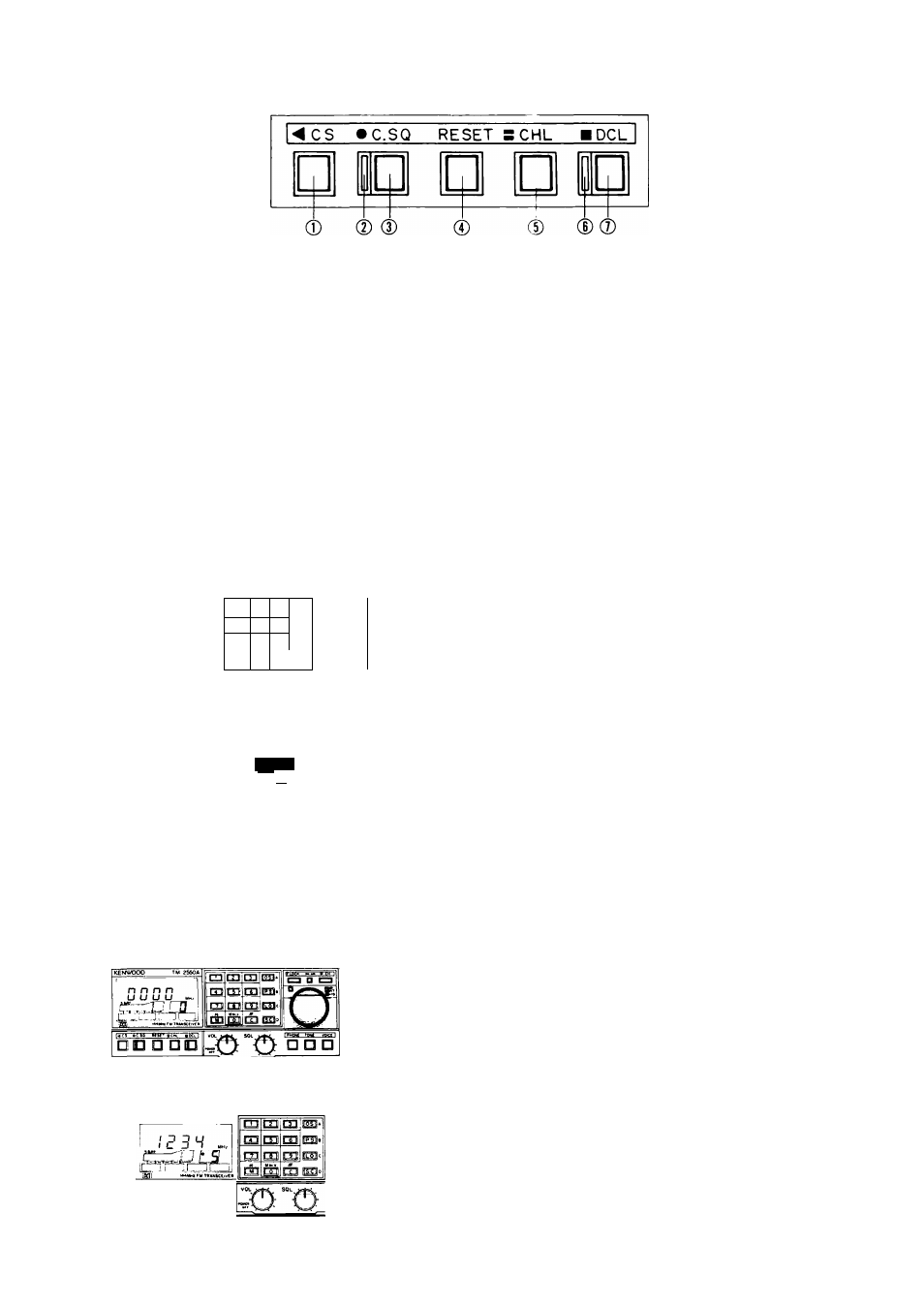

4-8-2. DCL system keyboard

© CS (Code Set) key

Use this key when programming the digital code and
call sign.

® C.SQ Indicator

This lights when the C.SQ function is ON.

© C.SQ (Code Squelch) key

Use this key to turn the code squelch function ON or
OFF.

The C.SQ indicator lights when this function is activ­

ated.

© RESET key

Use this key to reset channel linkage operation.

® CHL (Channel Link) key

Use this key for channel linkage.

© DCL system indicator

This lights when DCL is ON.

© DCL (Digital Channel Link) key

Use this key to turn the DCL system ON or OFF. The
DCL system indicator lights when this function is ac­

tive.

4-8-3. Digital code entry

Operating procedure

1. Press the CS key to cause the digital

access code to be displayed.

(“00000" is displayed initially.)

U LJ U U_MH

m m m (SI*
cn ra ICDlEH*
EO m 03

m

on □ OD

2. Enter the digital code using the nu­

meric keypad.

ir:.

in

3. Rotate the MEMORY CHANNEL se­

lector to select the desired code posi­

tion for data entry, or to review the

contents of the other 9 code memor­
ies.

Operation

Pressing the key once causes the digital
access code to be displayed.

(Pressing the key again will return you to
the normal frequency display.)

The code is stored in memory automati­

cally, when the final digit ts entered, and
is confirmed by long beep.

Each time the MEMORY CHANNEL se­
lector is rotated one detent position the

code memory will increment/decrement
one position. Continued rotation will al­
low continious tuning of the code posi­
tions.

Remarks

The digital code cannot be

programmed with the
F.LOCK on.

This function is independent

of the DCL key setting.

It is possible to receive while

setting the codes but not to
transmit.

An audible beep is emitted

from the radio each time the

dial is rotated to code me­
mory position one.

4. Press the C.SQ key to activate the

C.SQ indicator.

□ El

Pressing this key once lights the standby
indicator. Pressing the key again will

turn the indicator OFF.

This operation is valid only
while the digital code is be­

ing displayed.

25
