Installation

DIN Rear-mount

Installation using the screw holes on the side of the unit

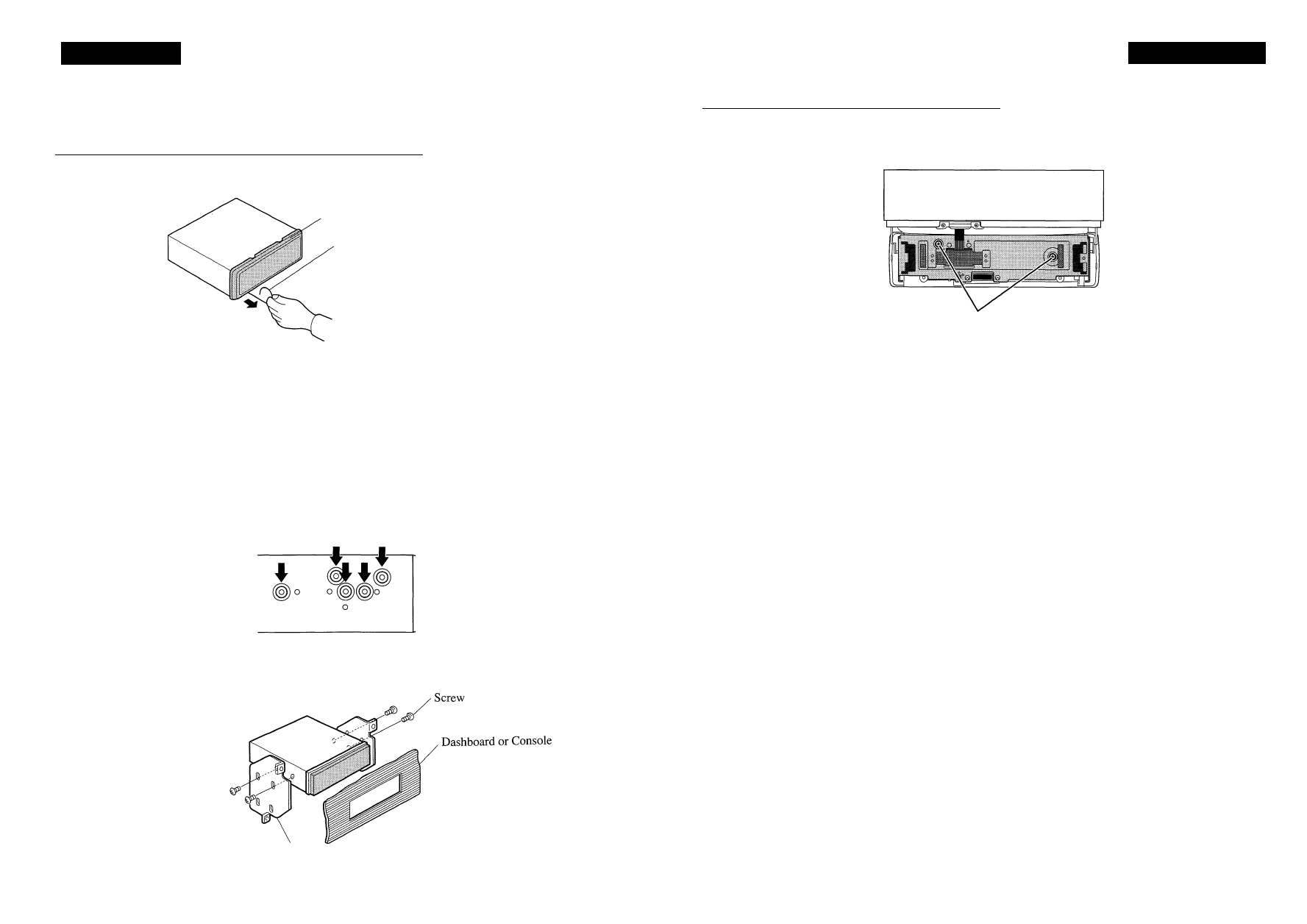

1. Remove the frame. (Fig. 9)

Frame

Insert the release pin into the hole in
the bottom of the frame and pull out
to remove the frame.

(When reattaching the frame, point

the side with a groove downwards

and attach it.)

Fig. 9

2. Fastening the unit to the factory radio mounting bracket.

(Fig. 10) (Fig. 11)

Select a position where the screw holes of the bracket and

the screw holes of the head unit become aligned (are fitted),

and tighten the screws at 2 places on each side. Use either

binding screws ( 5 x 6 mm) or flush surface screws

( 5 x 6 mm), depending on the shape of the screw holes in
the bracket.

Fig. 10

Factory radio mounting bracket

Fig.11

iLbout the fixing screws for the front panel

If you do not operate the removing and attaching the front panel function, use the supplied
fixing screws and fix the front panel to this unit.

Fixing screw

Fig. 12
