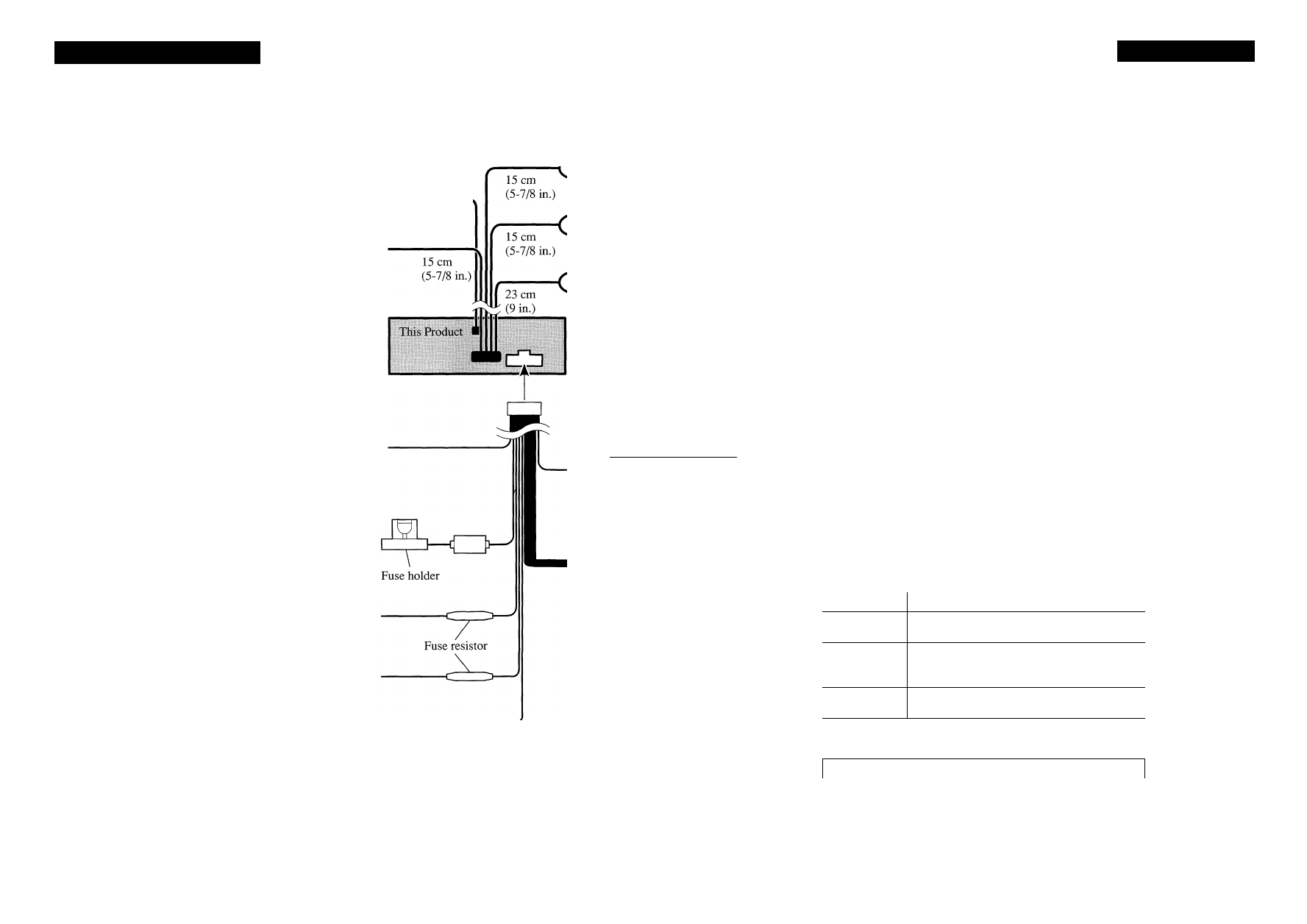

Connecting the Units
When using a Subwoofer without using a different amp (sold separately)
Antenna jack
15 cm
IP-BUS input (Blue) (5_y/g •
IP-BUS cable
Multi-CD player
{sold separately)
Yellow/black
If you use a cellular telephone, connect it via the
Audio Mute lead on the cellular telephone. If not,
keep the Audio Mute lead free of any connections.
Yellow
To terminal always supplied
with power regardless of
ignition switch position.
Red
To electric terminal controlled by
ignition switch (12 V DC) ON/OFF.
Orange/white
To lighting switch terminal.
Black (ground)
To vehicle (metal) body.
Front output (FRONT OUTPUT)
Subwoofer output (REAR OUTPUT)
Subwoofer output
(SUBWOOFER OUTPUT
or NON-FADING OUTPUT)
Blue/white
To system control terminal of the power amp
or Auto-antenna relay control terminal
(max. 300 mA 12 V DC).________________
Front speaker
Left
Subwoofer
White j
1 Gray
j
—Q Front speaker
White/black
Green
j
Gray/black ® Rjght
^ Violet ^
| — S u b w o o f e r
Green/black Violet/black
Change the Initial Setting of this Product (refer to the
Operation Manual). The subwoofer output of this unit is
monaural.
Fig.3
