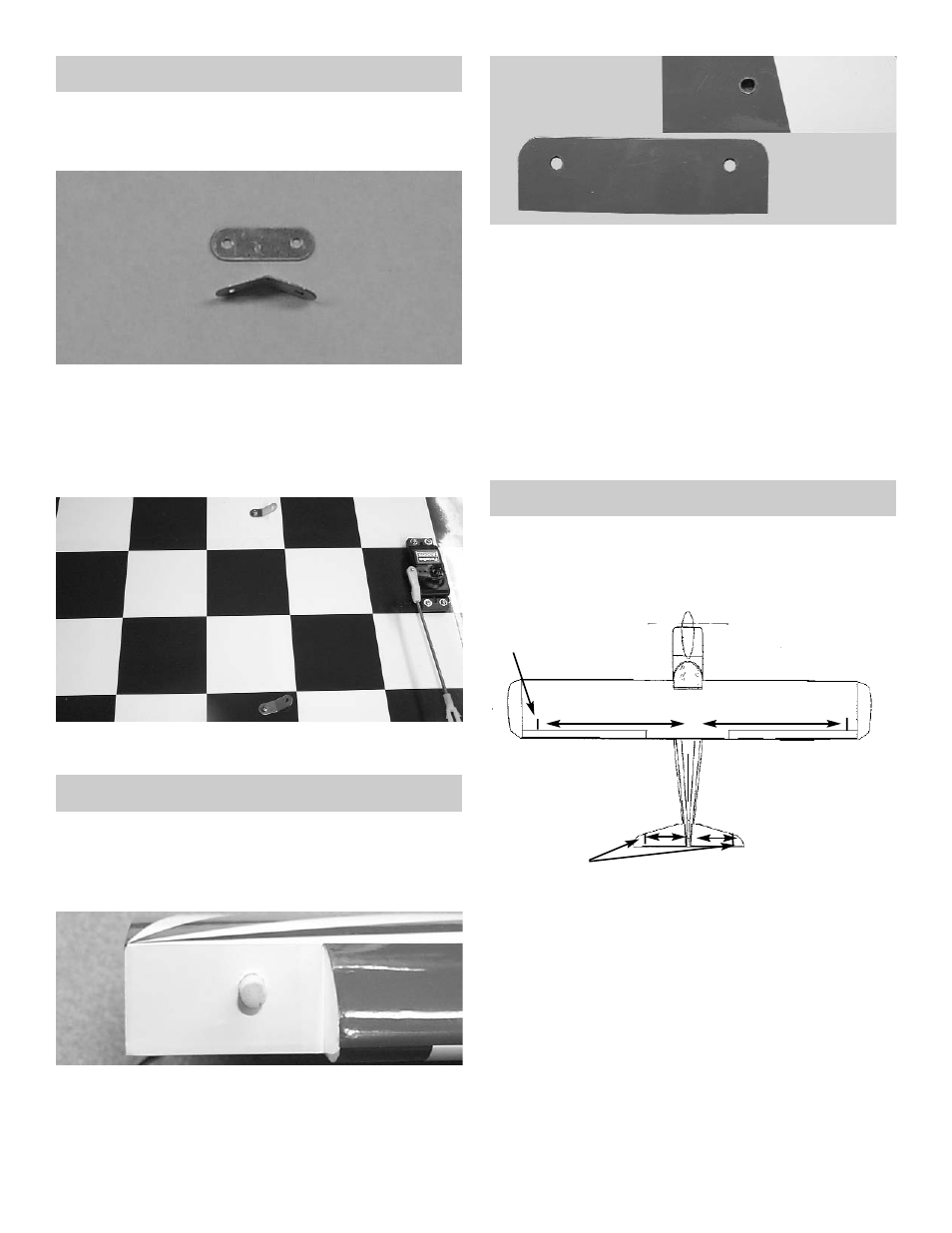

WING STRUT BRACKET INSTALLATION
1.
C
OLLECT THE FOLLOWING ITEMS
:
(4) S
TRUT MOUNTING BRACKET
(4) #2
X
3/8
SHEET METAL SCREW
2.
Place a small drop of thin CA glue into the
wing strut mounting holes found in the bottom
of the wing above and below the aileron
servo.
Slightly bend the strut mounting bracket in the
middle.
3.
Using #2 x 3/8 sheet metal screw, mount the
bracket so that it is pointing to the fuselage.
2.
Using epoxy, mount the 5/16 x 1-3/4” dowels
into the holes in the notch of the leading edge
of the wing. Make sure to leave about 1/2” of
dowel sticking out of the front of the wing. You
may wish to slightly taper the exposed dowel
ends for ease of insertion into the fuse holes.
1.
Collect the following items:
(1) Right wing
(1) Left wing
(2) 5/16 x 1-1/2" dowel
(1) 3/4” x 17-1/2” aluminum tube
MOUNTING WING TO FUSELAGE
5.
Insert the aluminum tube into one wing half
and push the tube into the wing until it stops.
Then insert the other wing half onto the tube
and slide the wing halves together.
Tilt the leading edge of the wing down into the
fuselage and insert both dowels in the holes
that are in the front of the fuselage
Insert a 1/4-20 x 2” nylon bolt into each hole in
the wing bolt pad and then insert each screw
into the holes near the trailing edge of the
wing.
Tighten both screws down until they are tight.
STAB INSTALLATION
1.
Collect the following parts:
(1) Stabilizer
(1) Wing/fuse assembly
3.
Place a piece of masking tape on each wing
tip, just above the aileron hinge line, as
shown above.
Measuring out from the center joint of the
wing,make a mark on the tape at 32-1/2".
Repeat for the other side of the wing
4.
Place two strips of masking tape along the
edge of the stab, next to the outer stab tips
and above the hinge line.
Measure the total length of the stab along the
hinge line and locate the centerline with a
mark.
Measure 9-1/2” out from the centerline and
make a mark on the masking tape on both
the left and the right side of the stabilizer.
32-1/2"
TAPE
TAPE
32-1/2"
9-1/2"
9-1/2"
