18

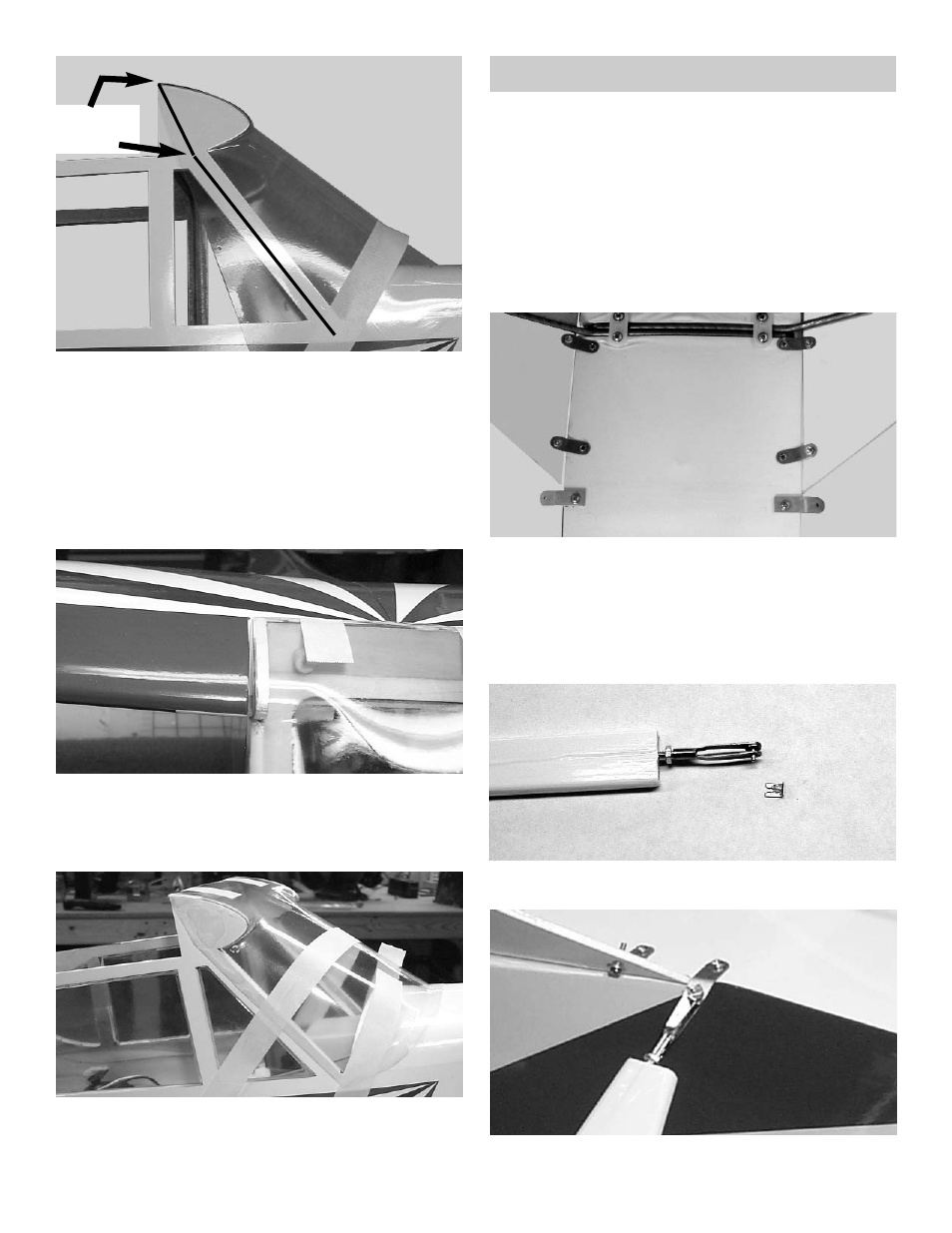

Cut along
this line
5. † Temporary tape the front Windshield in place
on the fuselage.
† Mark the side of the Windshield using a pen or
pencil where shown above.
† Remove the Windshield and cut along the line
that you just drew.
† Cut the top of the windshield even with the
back of the wing mount former.
6. † Temporary place the Windshield back on the
fuselage and mount the wing.
† Make sure the Windshield does not interfere
with the wing mounting to the fuselage.
7. † Remove the wing and glue the Windshield to
the fuselage.
† Use masking tape to hold the windshield in
place till dry.
WING STRUTS
1. Collect the following items:
(1) Fuselage
(2) Wing Struts
(6) 2-56 Silver Clevis
(6) 2-56 Hex Nut
(6) Clevis Clips
(2) Aluminum Strut Bracket
(2) #2 x 5/16 Screw
2. † Place the aluminum strut brackets just behind
the landing gear fairings.
† Make a mark where the mounting holes are
located.
† Drill 1/16” holes at the marks and mount the
straps using the #2 x 5/16” screws.
3. † On each end of the wing struts place a 2-56
hex nut, and a 2-56 Golden clevis.
4. † Hook the bottom of the strut to the aluminum
bracket on the bottom of the fuselage.
