AERCO KC Standard to Low NOx Convertion Instructions - Manual (Page 29)

29
THIS PRODUCT COMPLIES WITH NOx EMISSIONS
STANDARDS OUTLINED IN SOUTH COAST AIR
QUALITY MANAGEMENT DISTRICT ( SCAQMD )
RULE 1146.2 AND TEXAS COMMISION ON
ENVIRONMENTAL QUALITY ( TCEQ ), TITLE 30,
CHAPTER 117, RULE 117.465, WHEN INSTALLED
AND OPERATED IN ACCORDANCE WITH AERCO
INSTALLATION, OPERATION, & MAINTENANCE
INSTRUCTIONS.
INTERNATIONAL INC.
Water Pressure
Drop..................................................
14" WC maximum static
9.5" WC min. @ full load
23 gallons
0.1 psi @ 100 GPM
FIRING RATE
INVERSE EFFICIENCY CURVE
Aerco KC Gas Fired Hot Water Boiler
Maximum Water Flow................................................
Electrical Requirements............................................
ASME Maximum Working Pressure............................
Net Output.................................................................
Net Input...................................................................
Specifications
86% 7%
99%
50F to 220F
120/1/60 20 AMP
150 PSIG @ 250F
860,000 to 930,000 BTU/Hr
1,000,000 BTU/Hr
150 GPM
25 GPM
100%
For parts assistance during normal business hours call your local sales representative or ... Aerco International at 1-800-526-0288.
MANUFACTURERS INSTRUCTIONS FOR FURTHER VENTING DETAILS. FOR USE WITH CATEGORY III OR IV GAS APPLIANCES WITH
INTENDED FOR USE WITH UL LISTED SPECIAL GAS VENT
FOR USE WITH INTEGRAL
GAS-FIRED BOILER
CONTROLS
L U
Aerco KC Gas Fired
Hot Water Boiler
PARTIAL FRONT VIEW
Recovery Capacity
T emp. Rise (F)
Aerco KC Gas Fired Commercial Water Heater
Specifications
Gas Pressure Requirements..........................
Maximum Continuous Water Flow.............................
Standby Power Consumption........................
ASME Maximum Working Pressure...............
14" WC maximum static
9.5" WC min. @ full load
23 gallons
0.7 psi @ 20 GPM
30 GPM
100F to 195F
40 watts
120/1/60 20 AMP
160 PSIG @ 210F
930
120
930,000 BTU/Hr
1,000,000 BTU/Hr
GPH 1594 1860
60 70
1116 1240 1395
80 90
1014
100 110
797
140
859
130
Net Input………………………………………….
Net Output………………………………………….
Electrical Requirements………………………..
Adjustable Control Range……………………...
Water Pressure Drop………………………....
Water Volume…………………………………...
BOILER
HEATER
OR

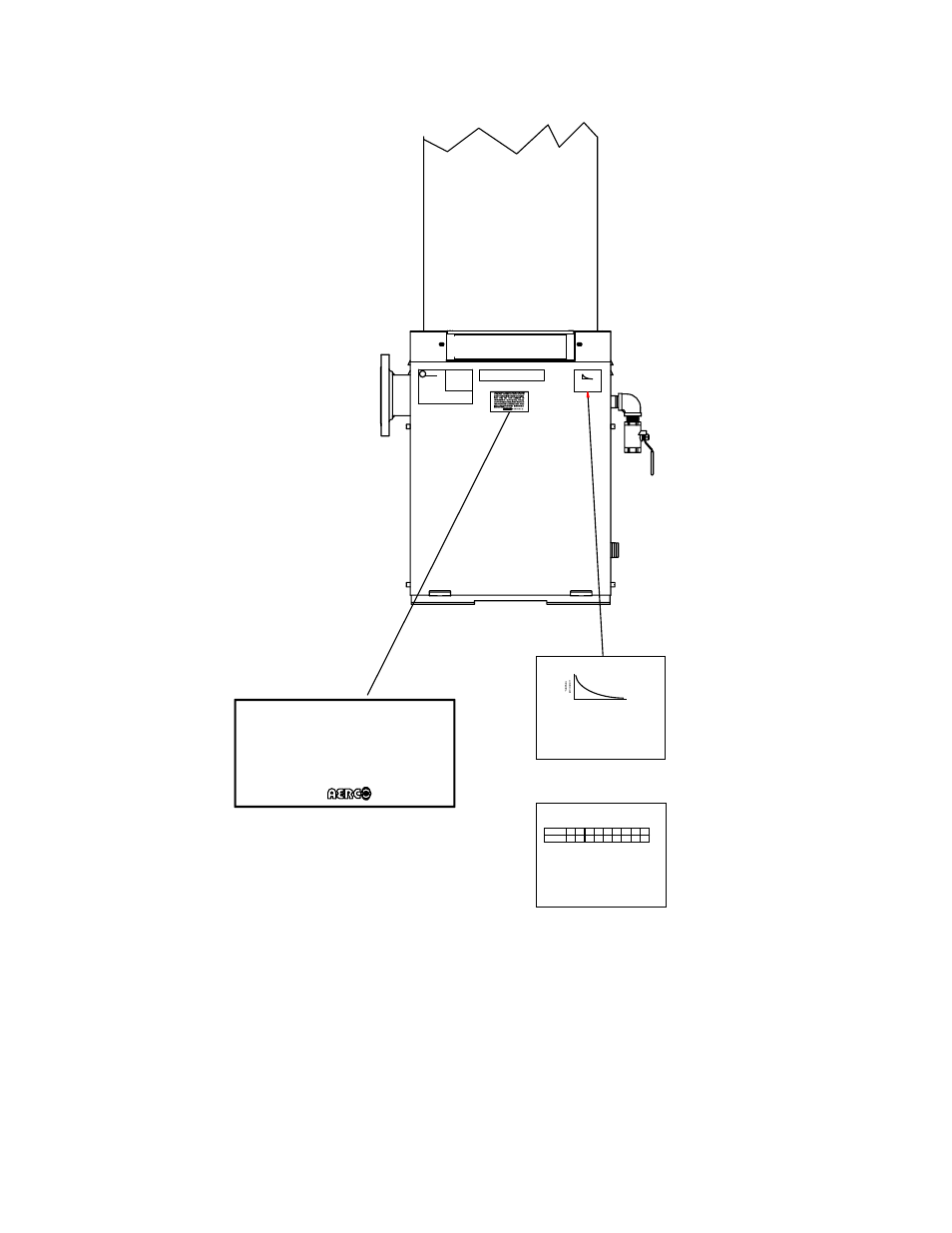

Figure 26. Low NOx Labels – Front View
