26
13. Next, install the Igniter and Flame Detector in the Low NOx Burner (Figure 24) as follows:
(a) Prior to installing the Igniter in the Low NOx Burner, a conductive anti-seize compound
MUST be applied to the Igniter threads.
(b) Install the Igniter at the location shown in Figure 24. Do Not over-tighten.
(c) Connect the Igniter cable from the Ignition Transformer.
(d) Install the Flame Detector at the location shown in Figure 24. Do Not over-tighten.
(e) Reconnect the Flame Detector lead.

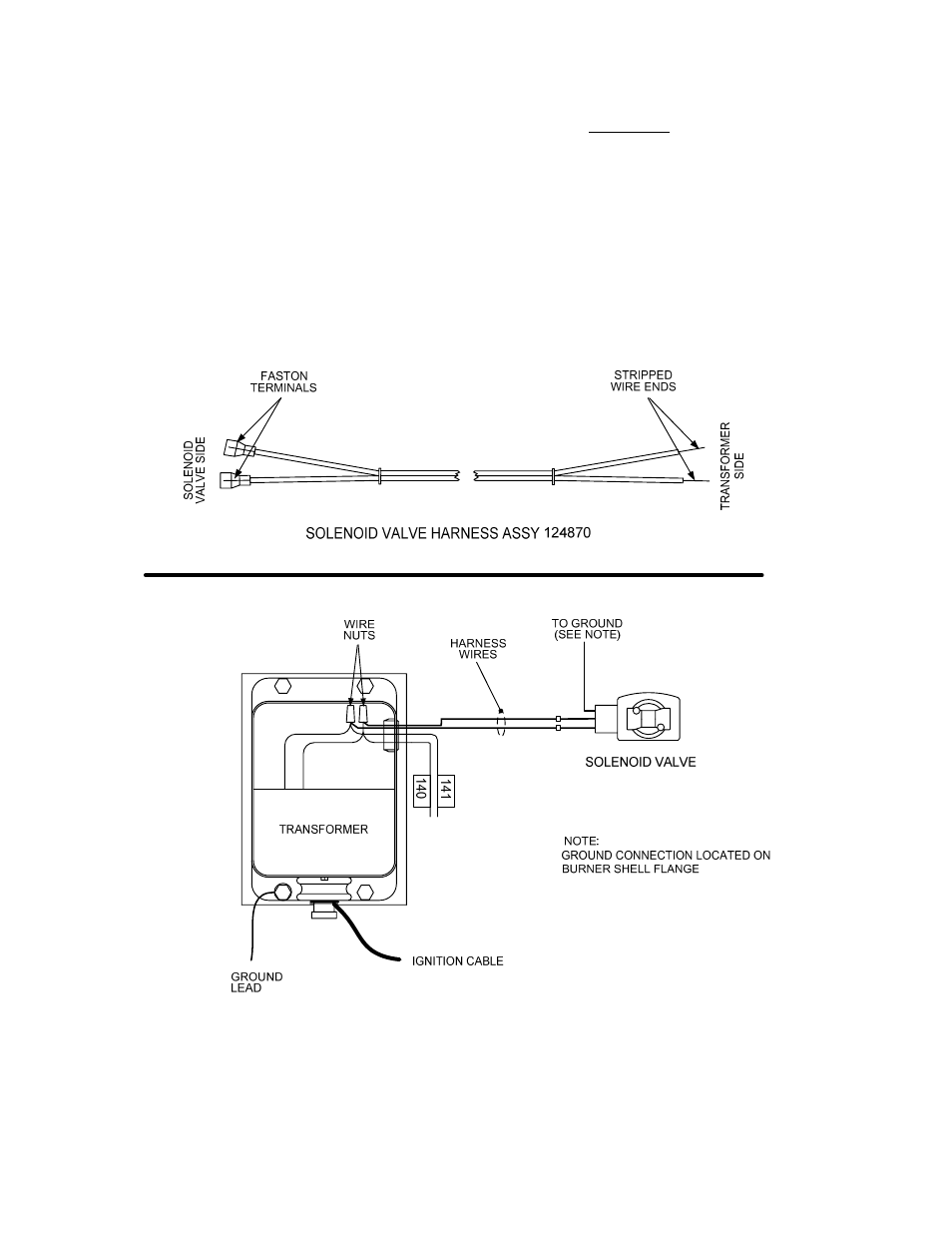

Figure 23. Solenoid Valve Wiring Harness and Connections
